livMatS Pavilion

ITECH Studio Project, 2021

Institute for Computational Design and Construction (Prof. A. Menges)
Institute of Building Structures and Structural Design (Prof. J. Knippers)

Project Video

Source: Vimeo
Source: Vimeo

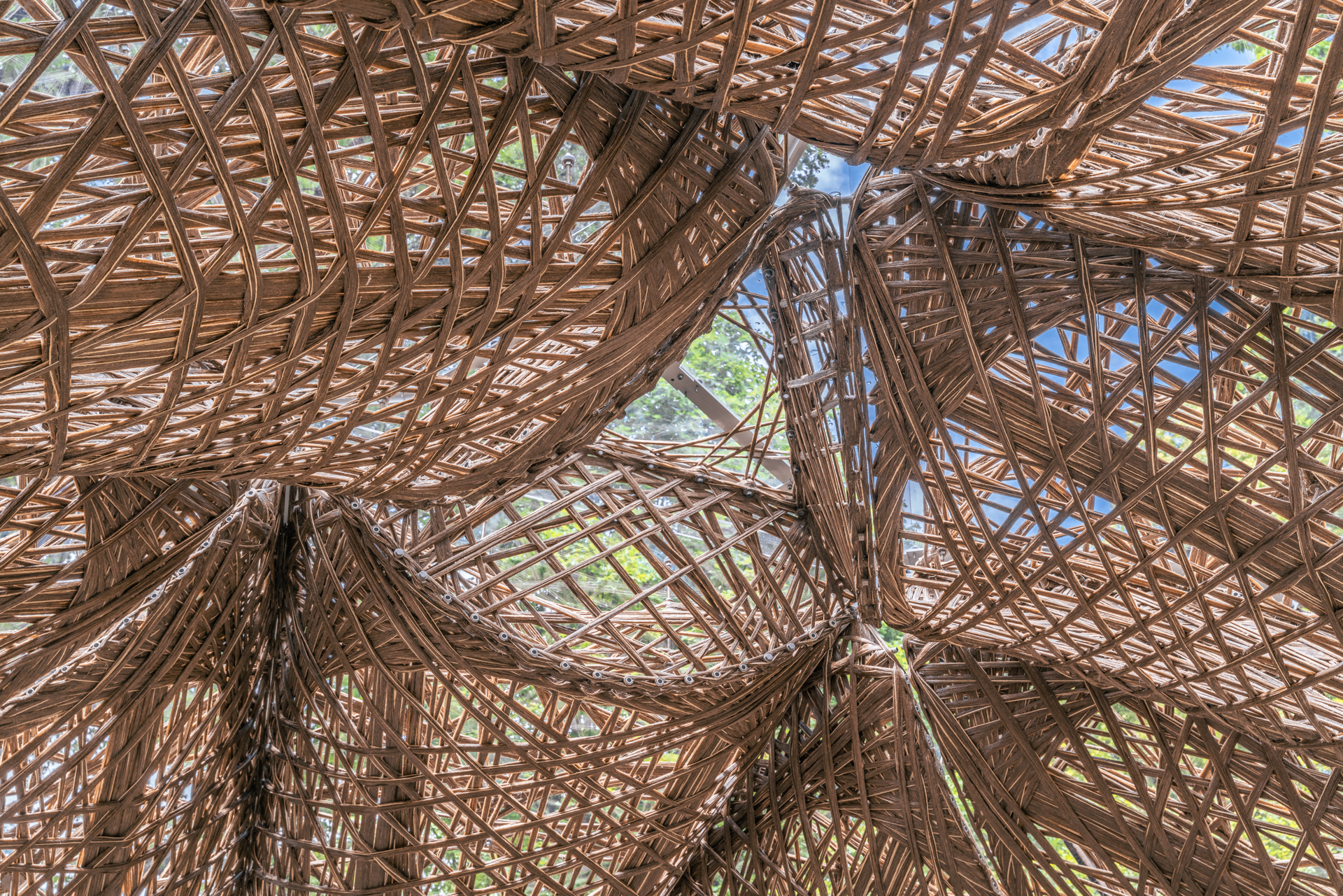

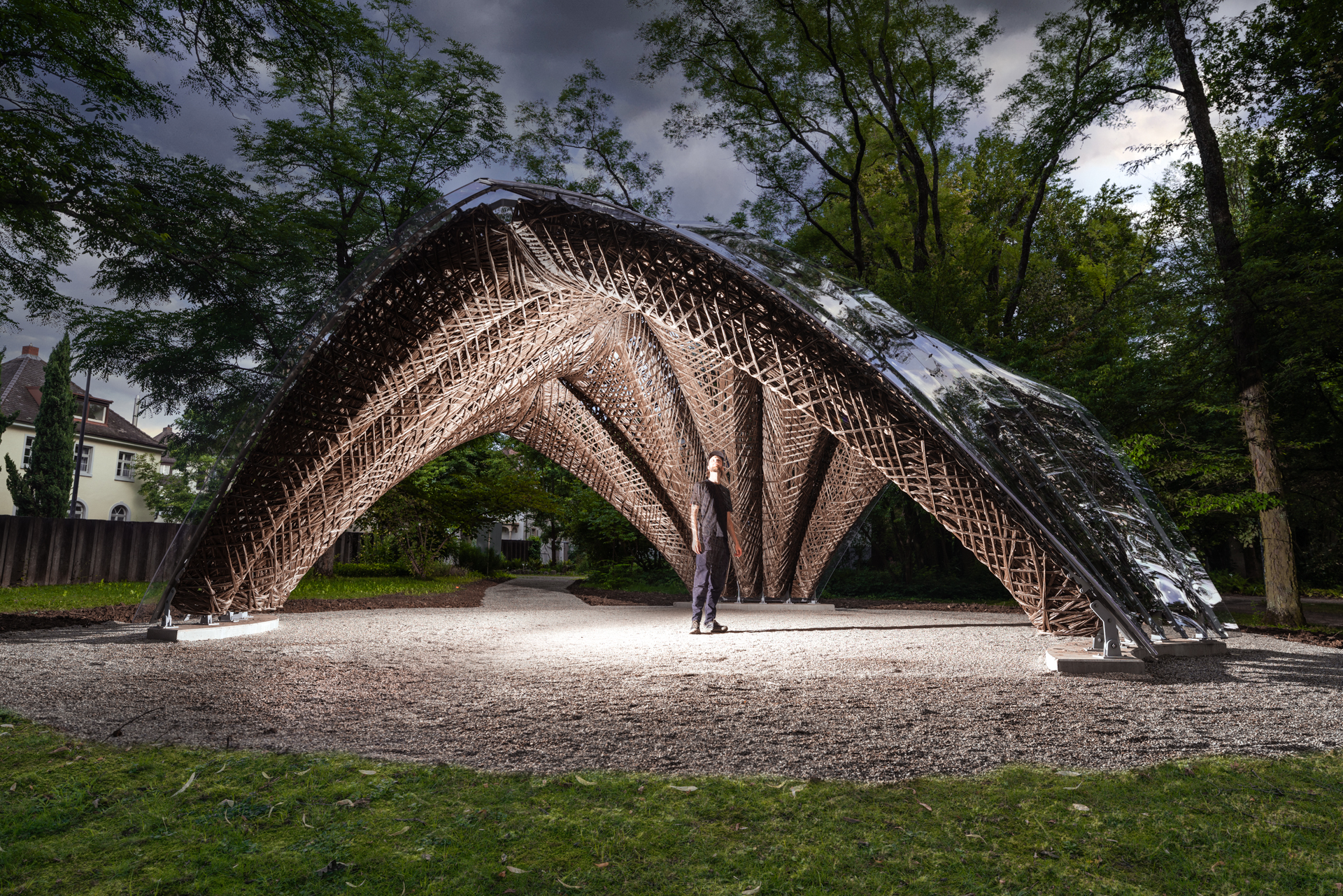

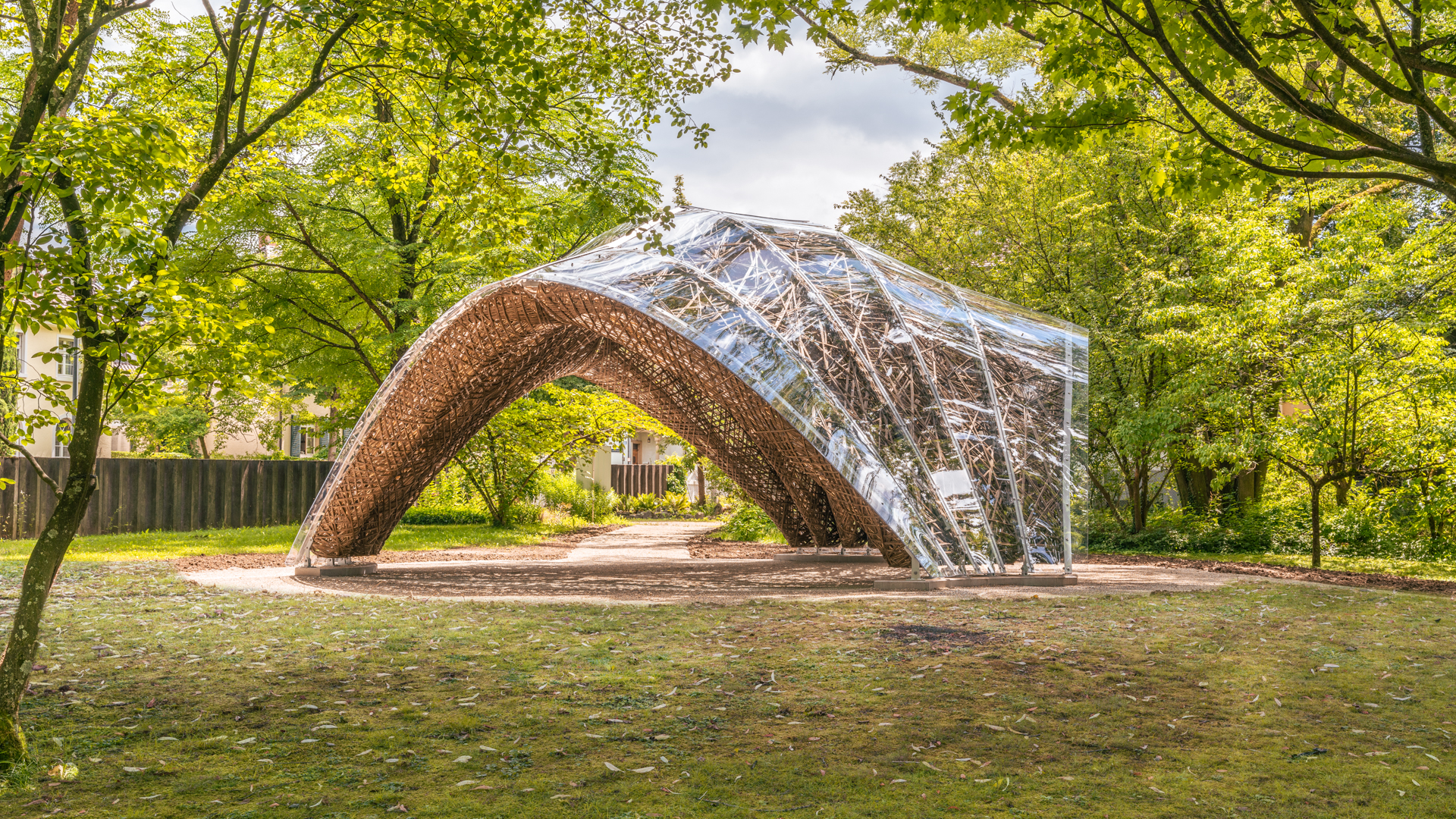

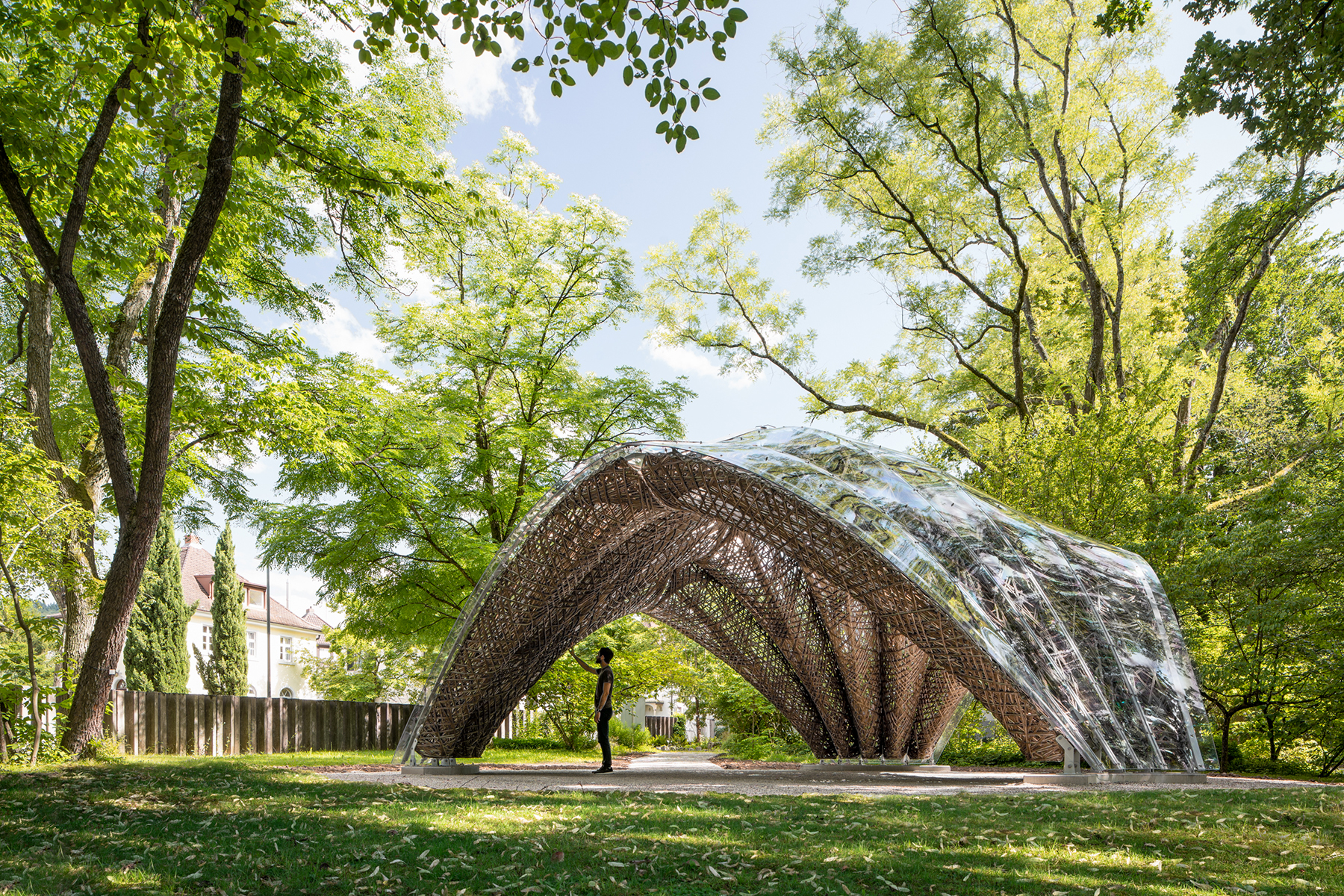

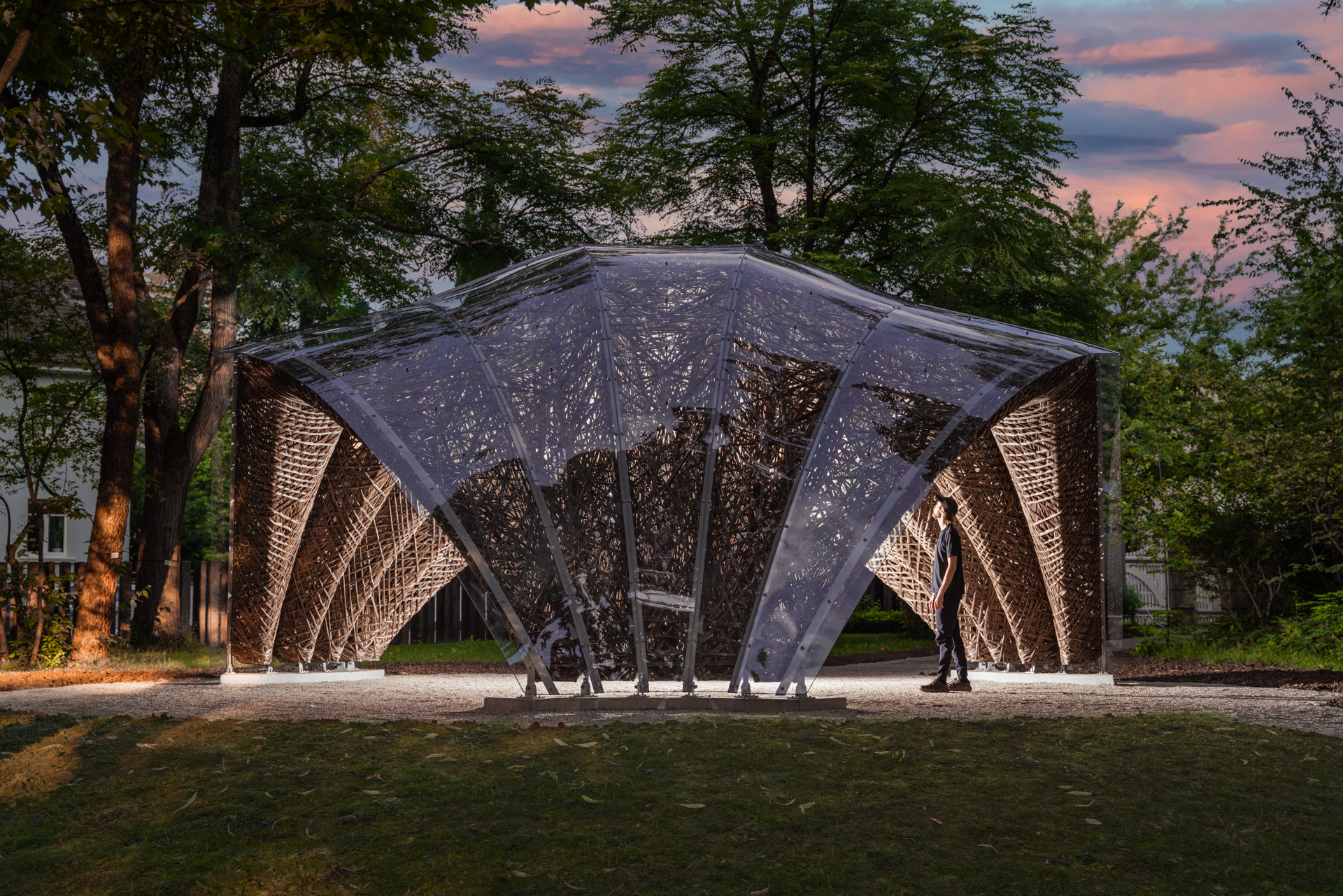

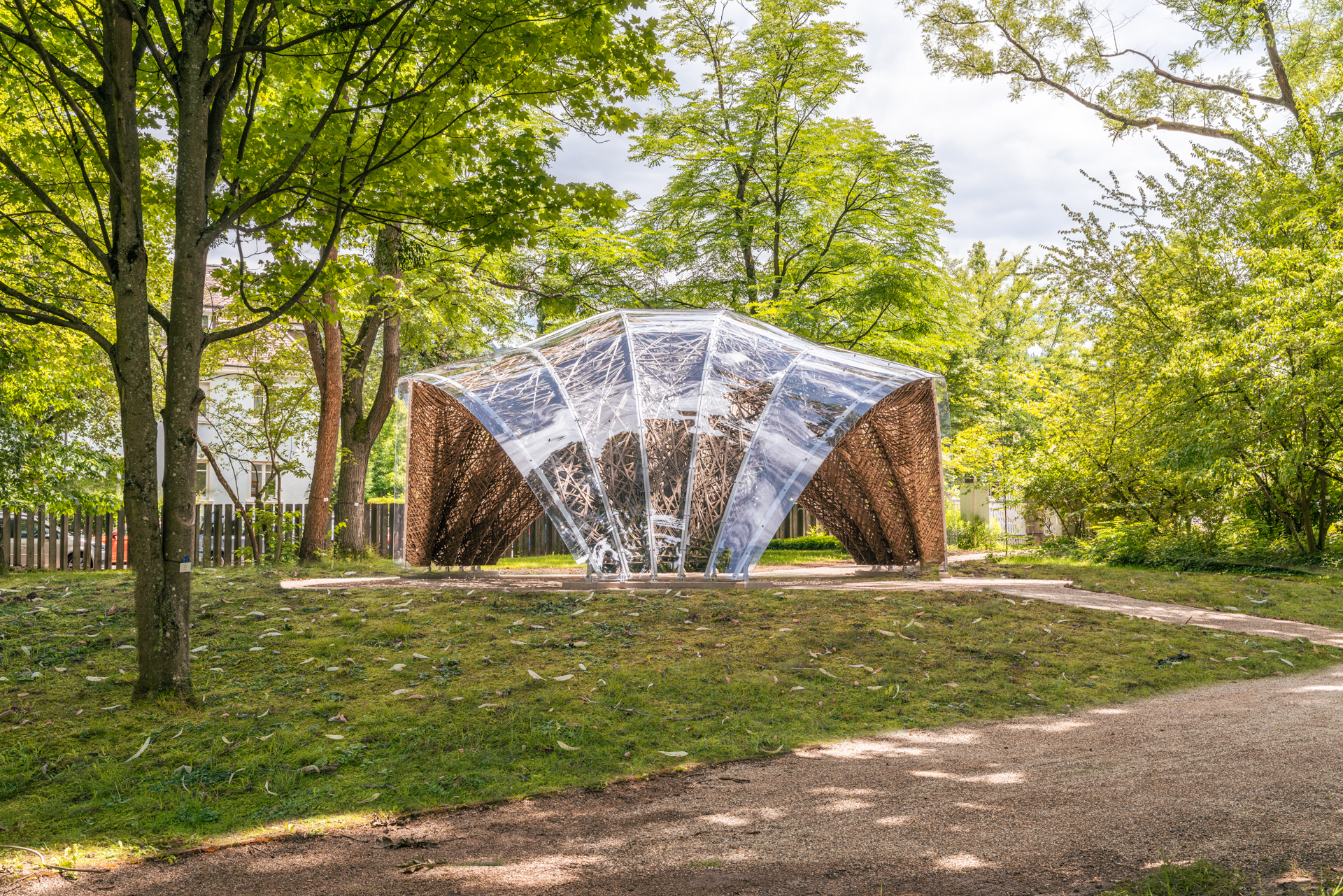

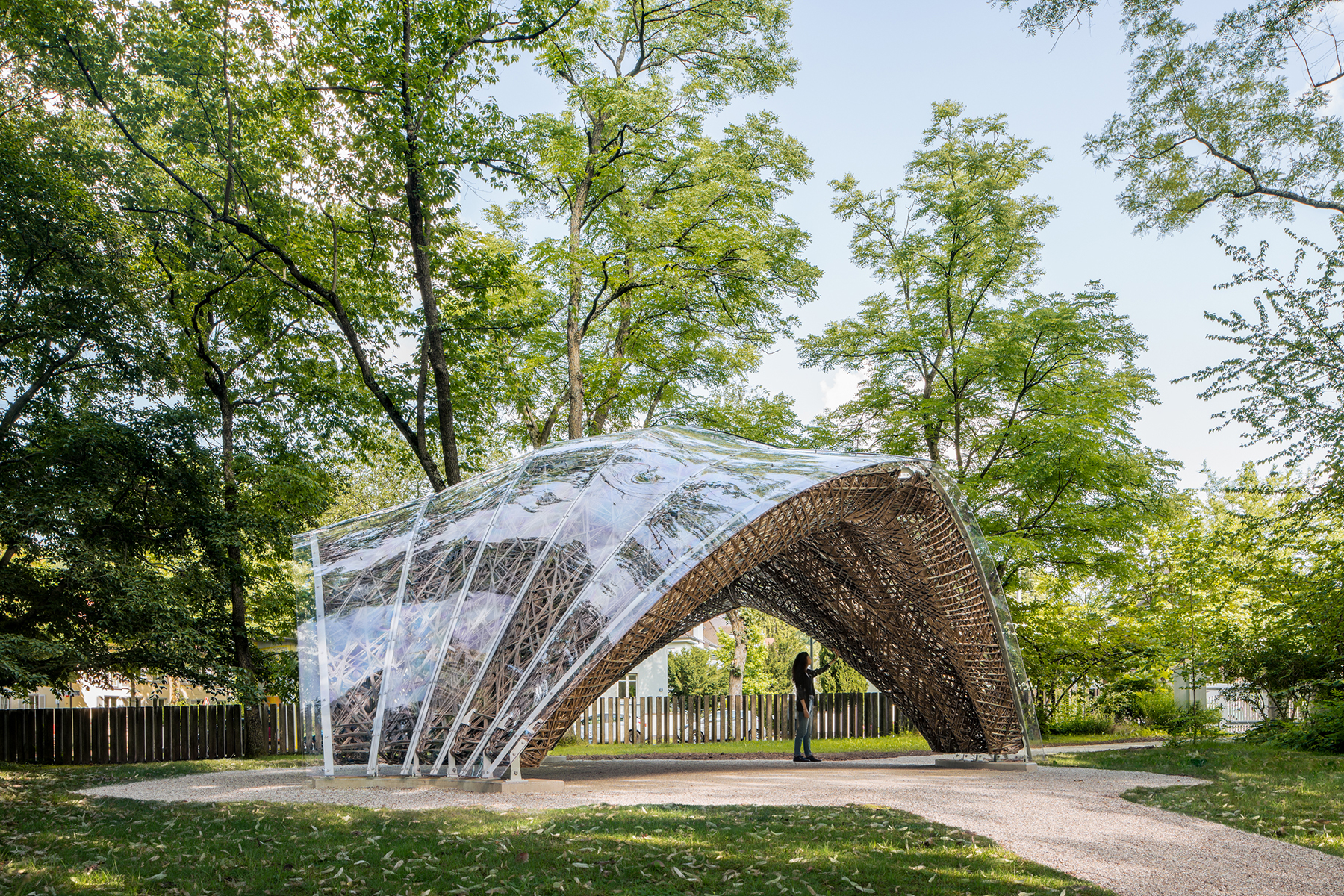

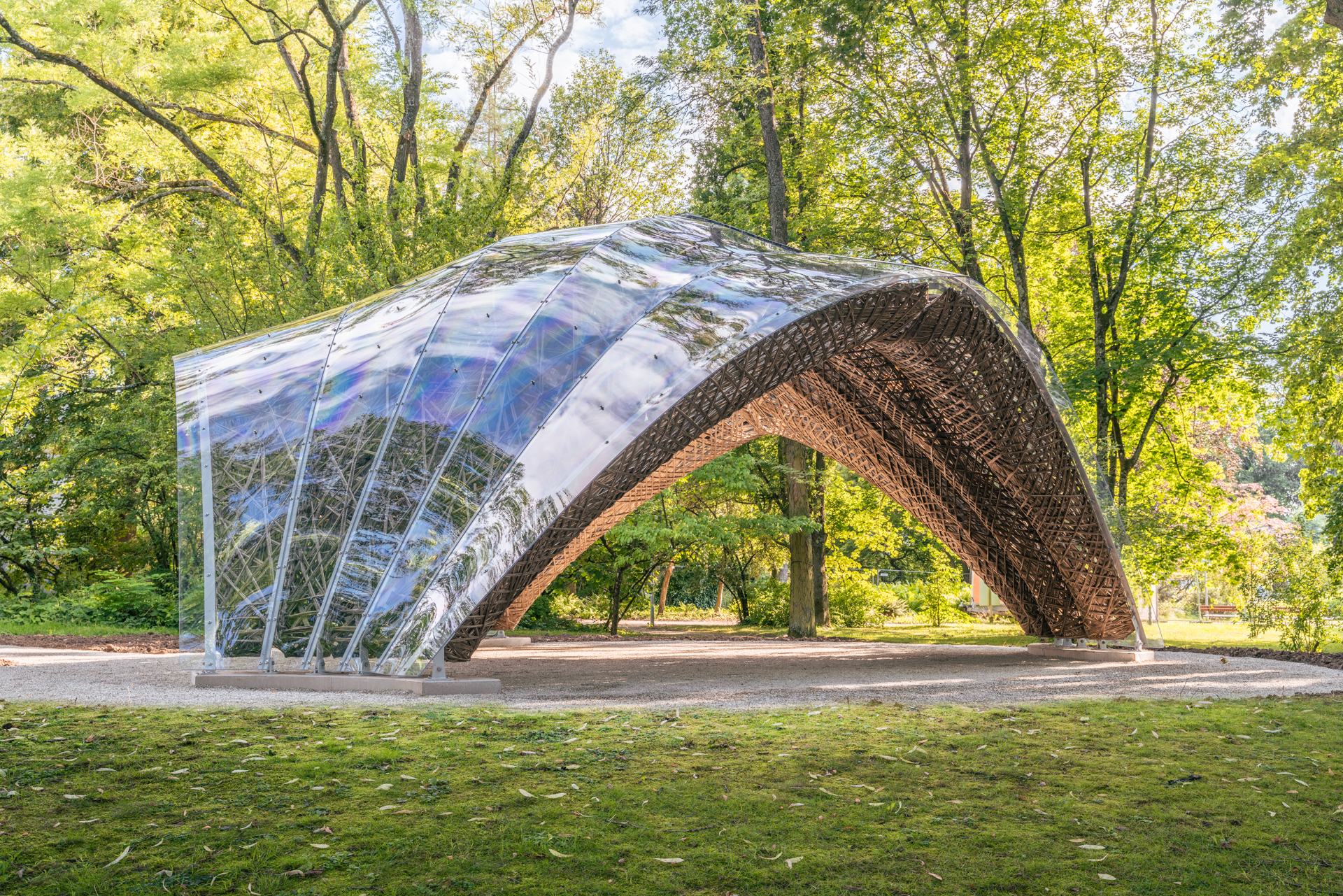

Over the past century, the construction industry has become one of the most material-intensive and environmentally detrimental human activities. Located in the Botanical Garden of the University of Freiburg, the livMatS Pavilion offers a viable, resource-efficient alternative to conventional construction methods and therefore represents an important step towards sustainability in architecture. It constitutes the first building ever with a load-bearing structure that is entirely made of robotically wound flax fiber, a material that is fully naturally renewable, biodegradable, and regionally available in Central Europe.

Enabled by a novel combination of natural materials and advanced digital technologies, this pavilion stems from the successful collaboration of an interdisciplinary team of architects and engineers of the ITECH master`s program at the Cluster of Excellence “Integrative Computational Design and Construction for Architecture (IntCDC)” at the University of Stuttgart and biologists from the Cluster of Excellence “Living, Adaptive and Energy-autonomous Material Systems (livMatS)” at the University of Freiburg.

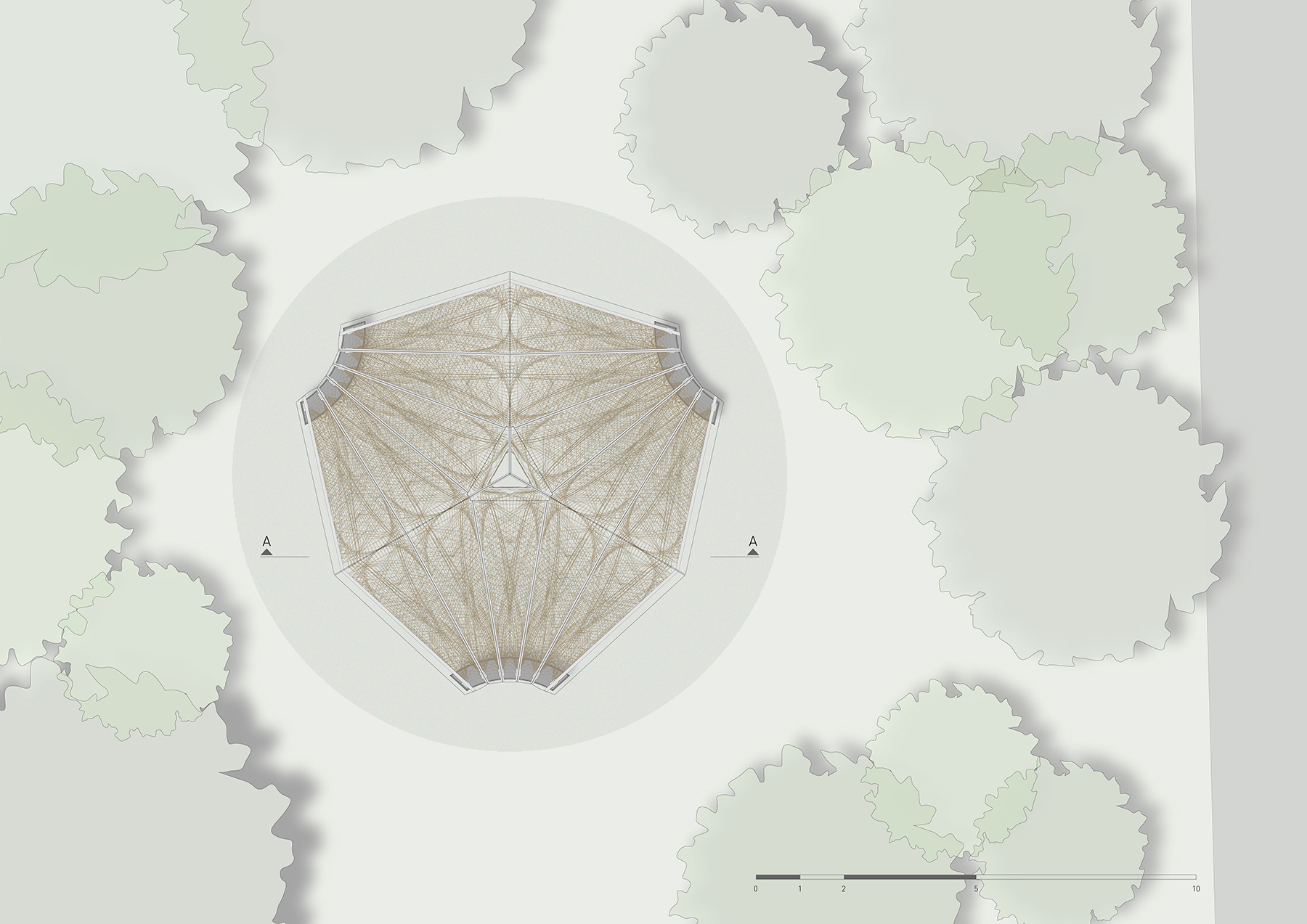

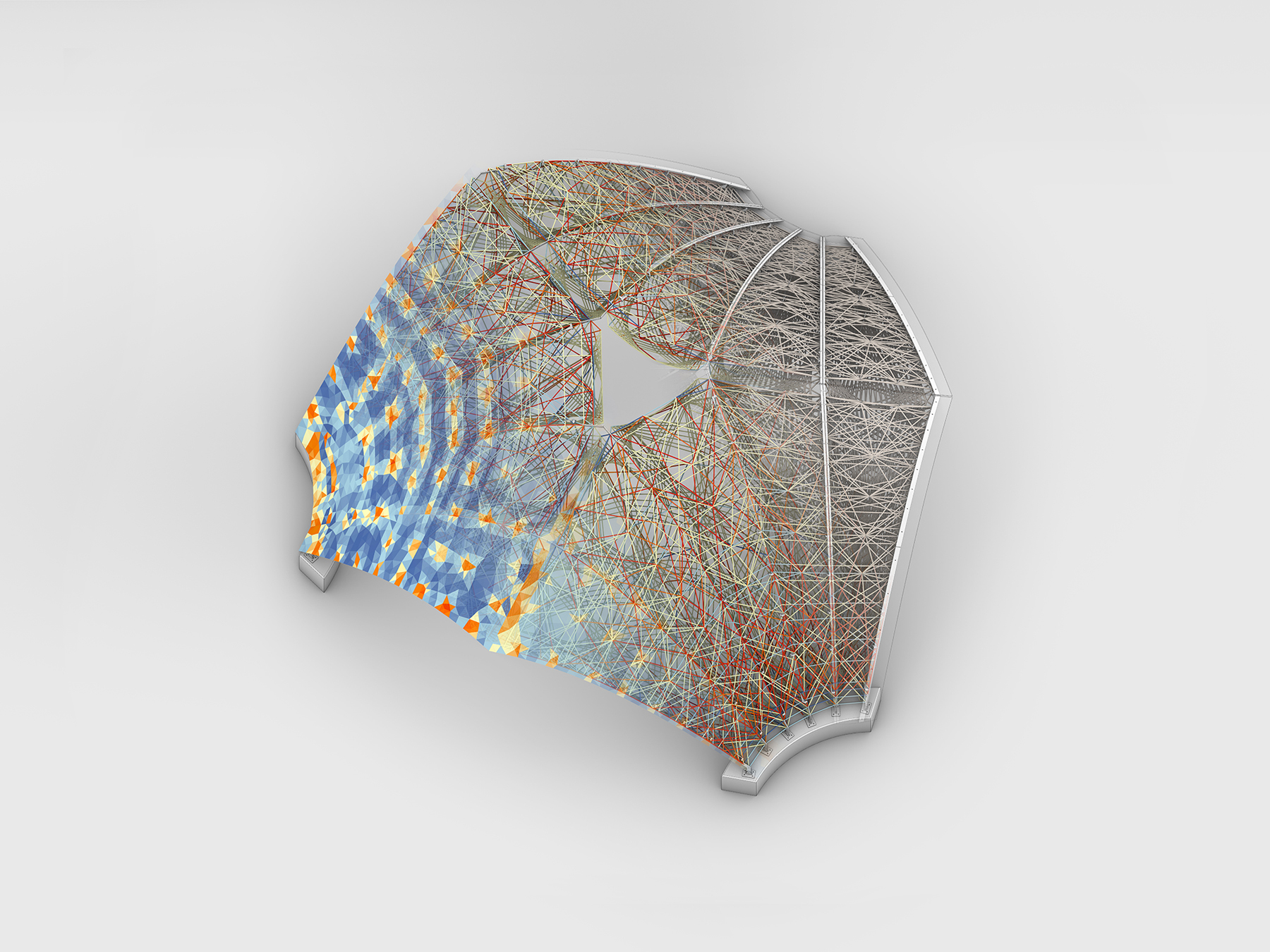

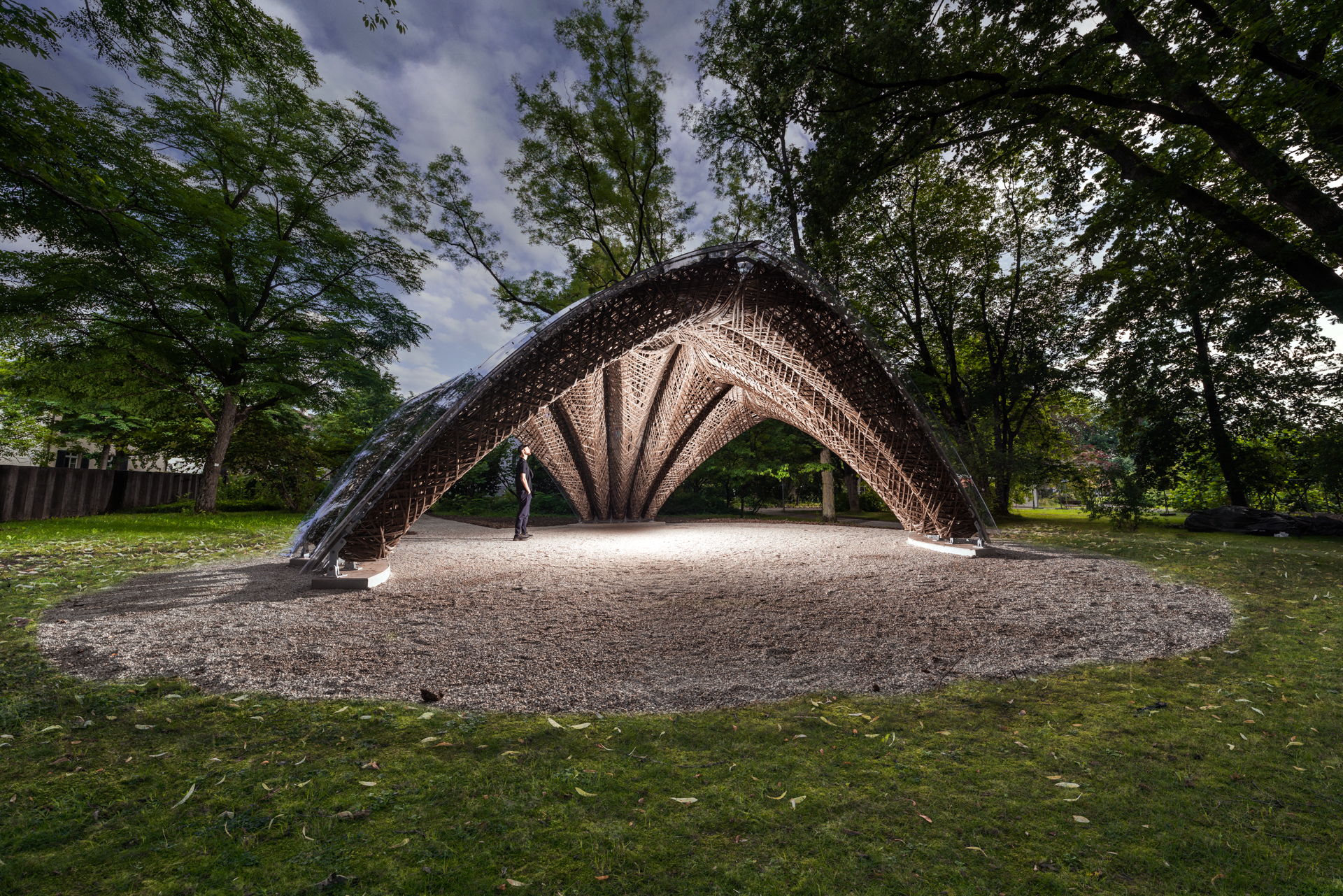

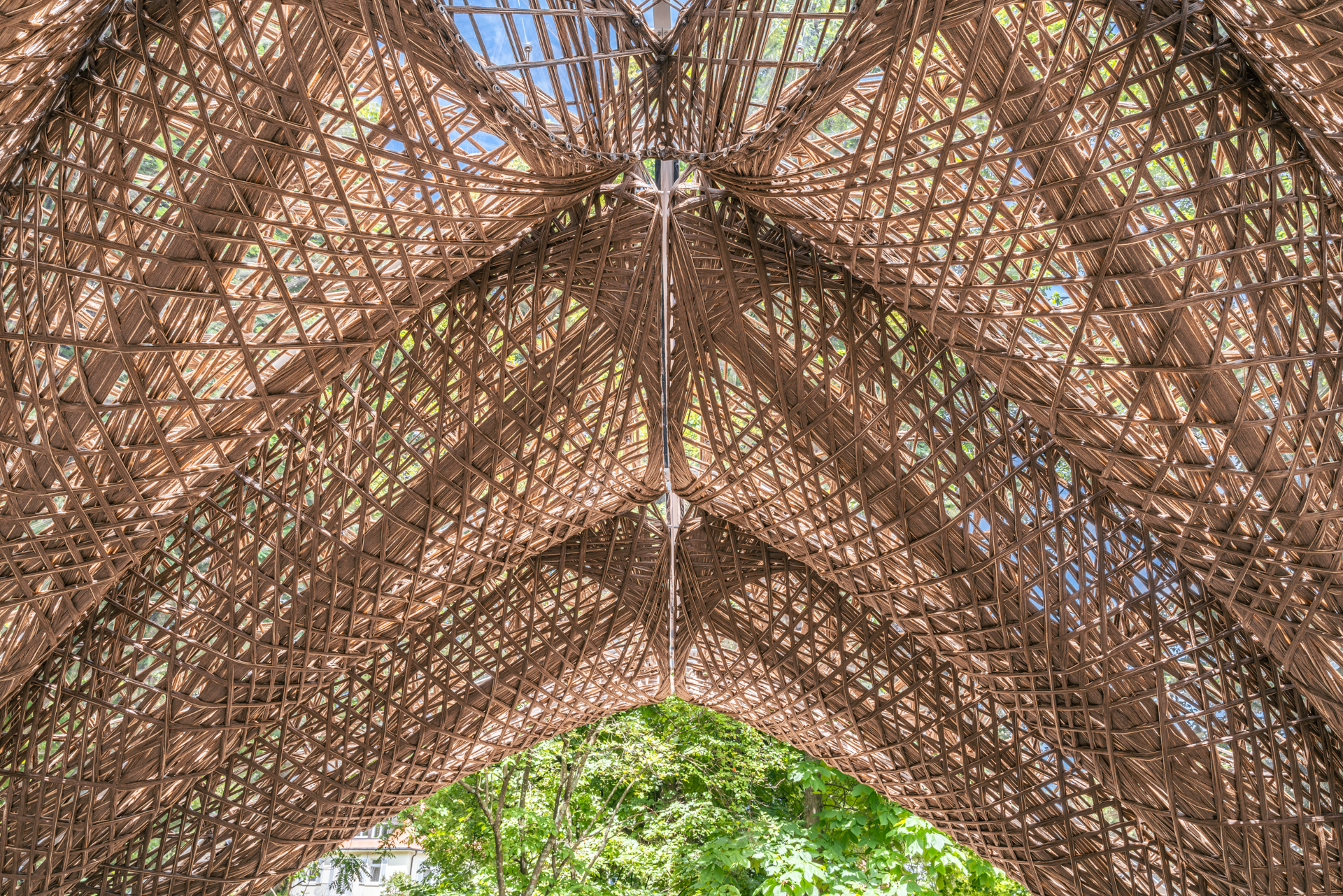

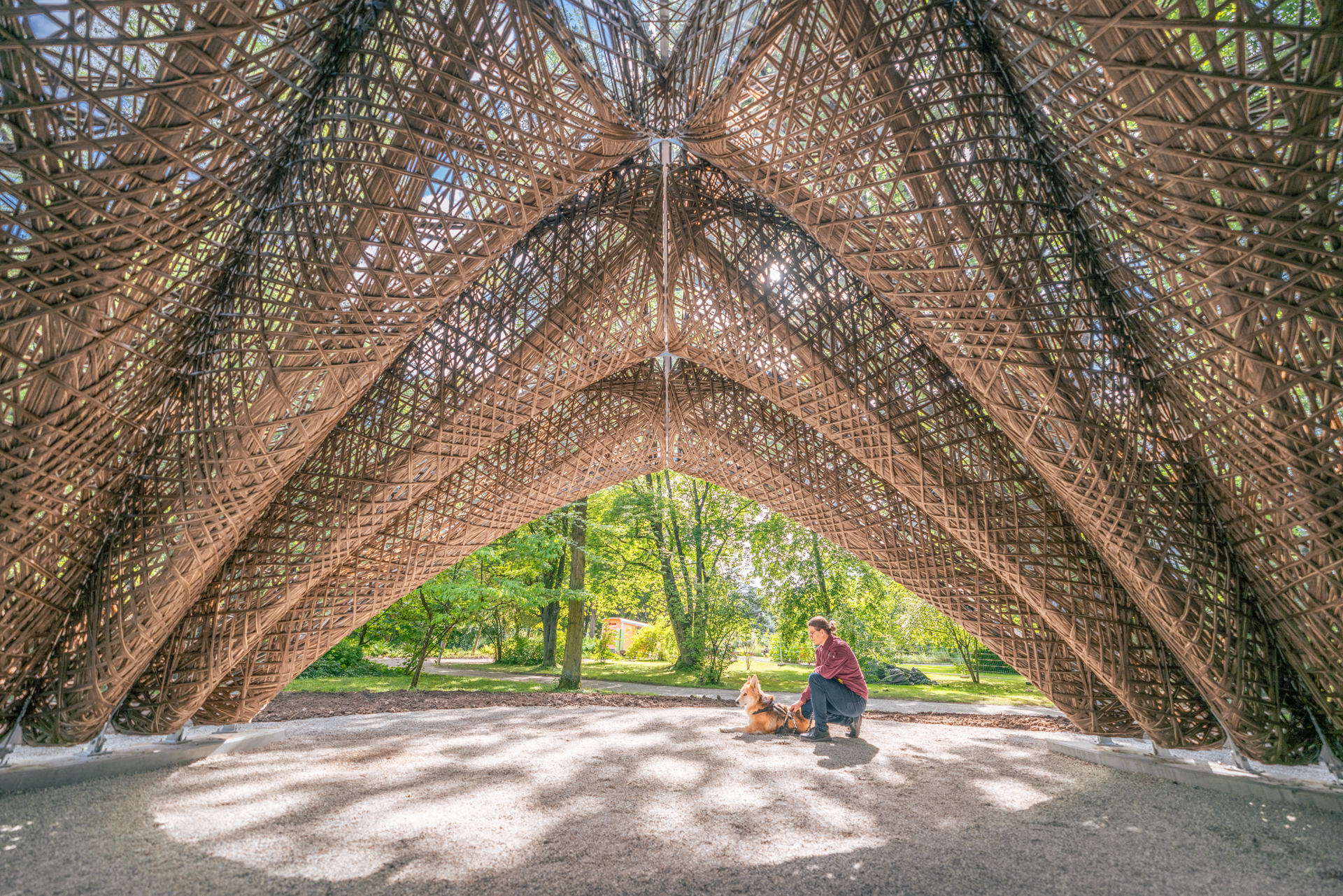

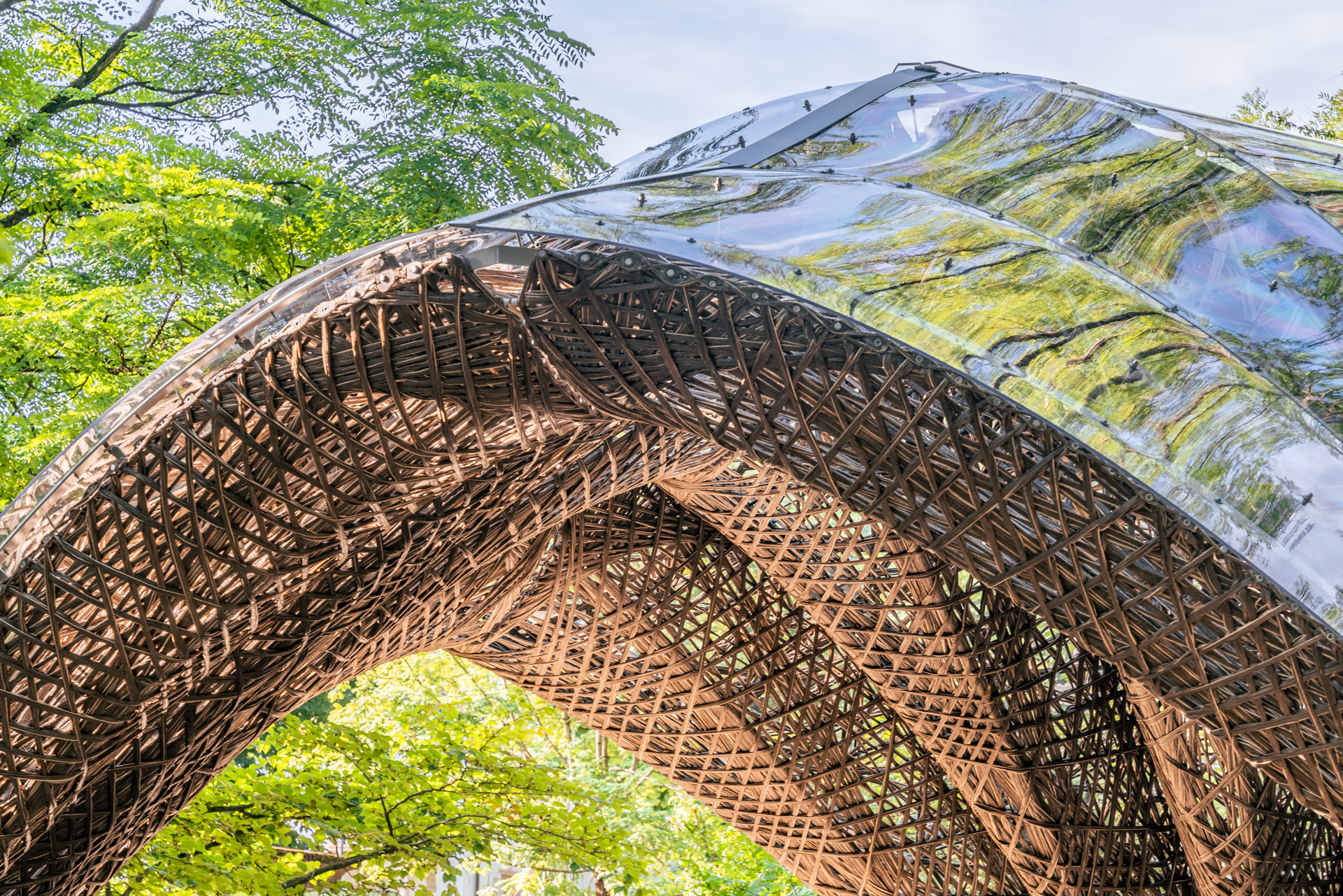

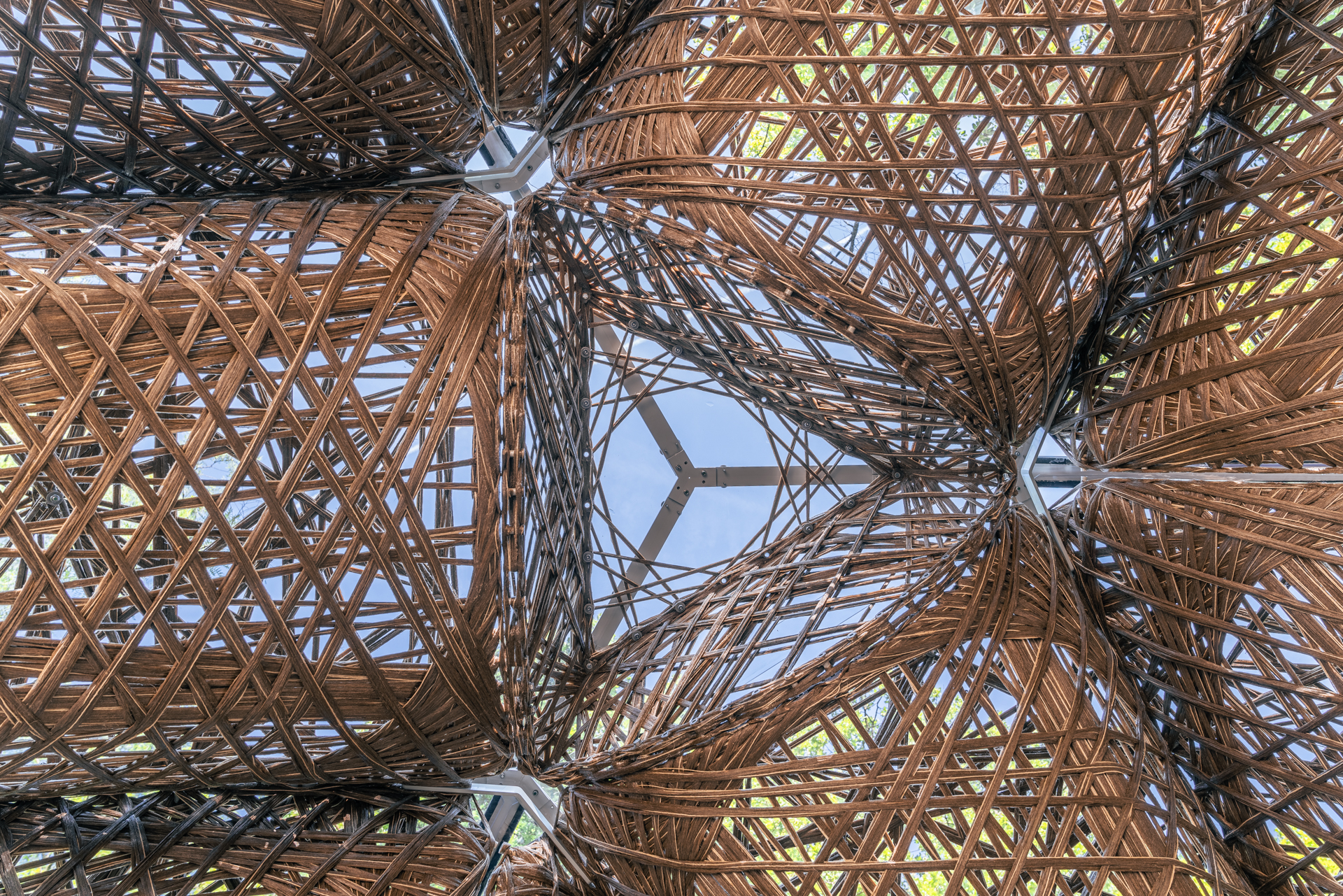

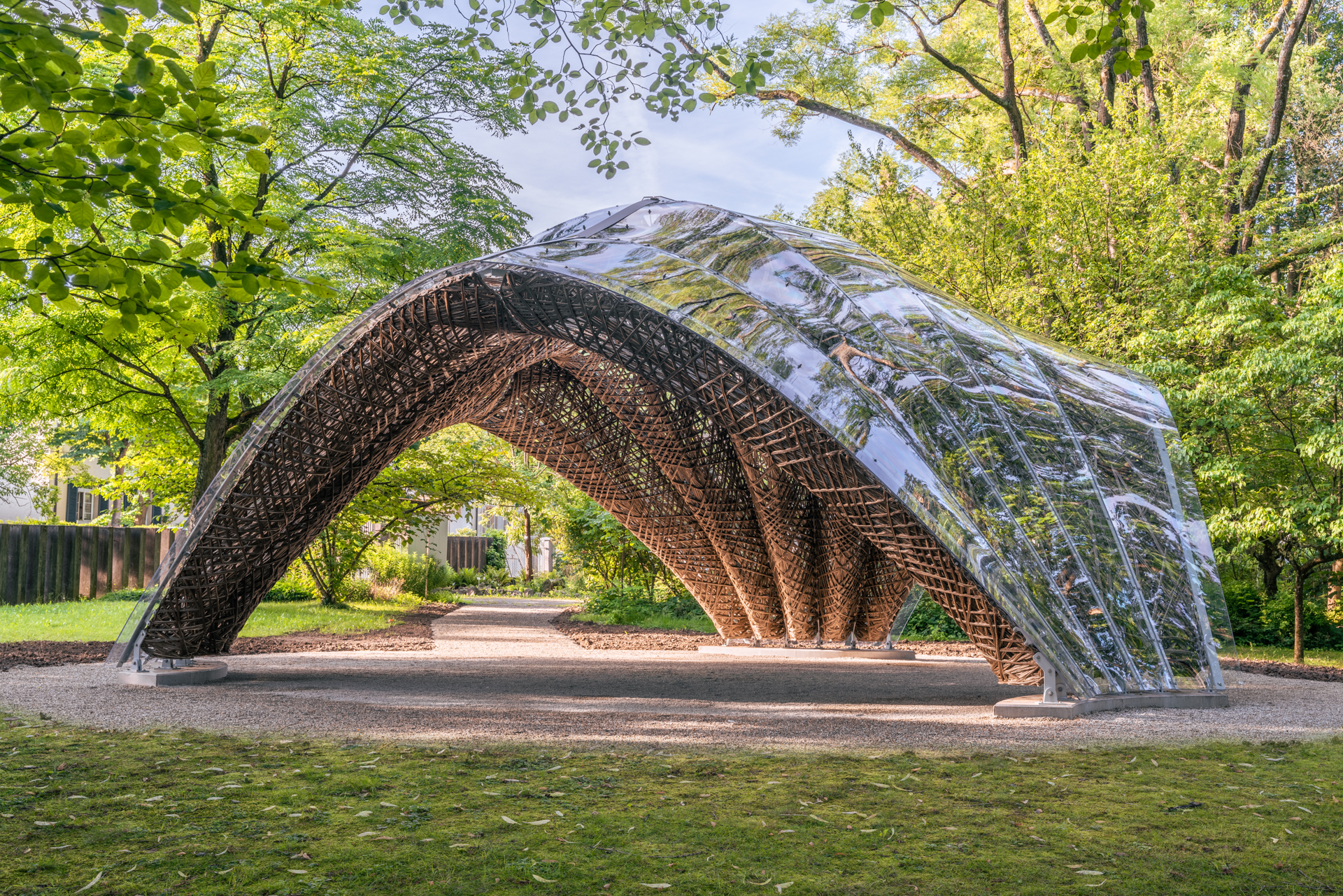

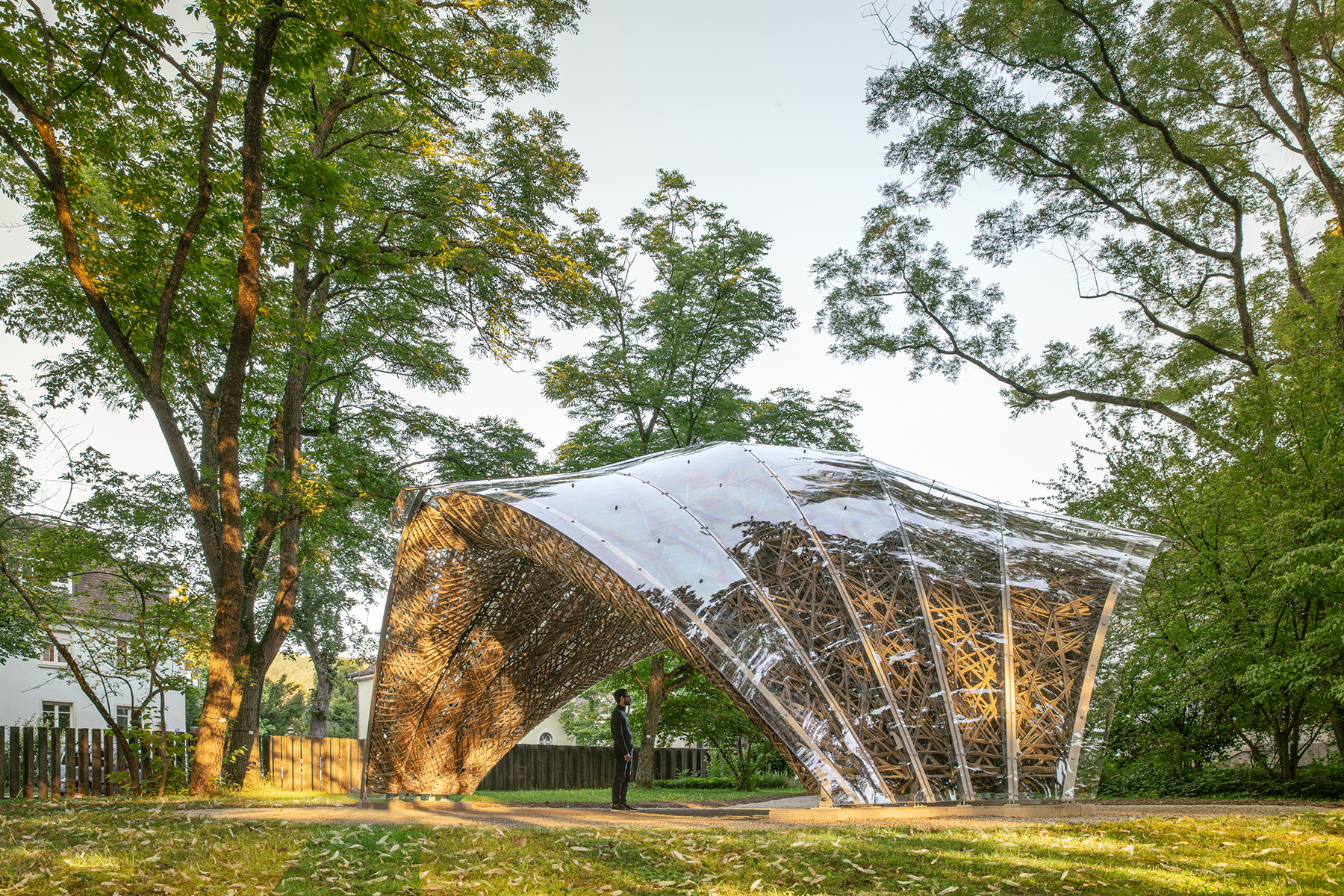

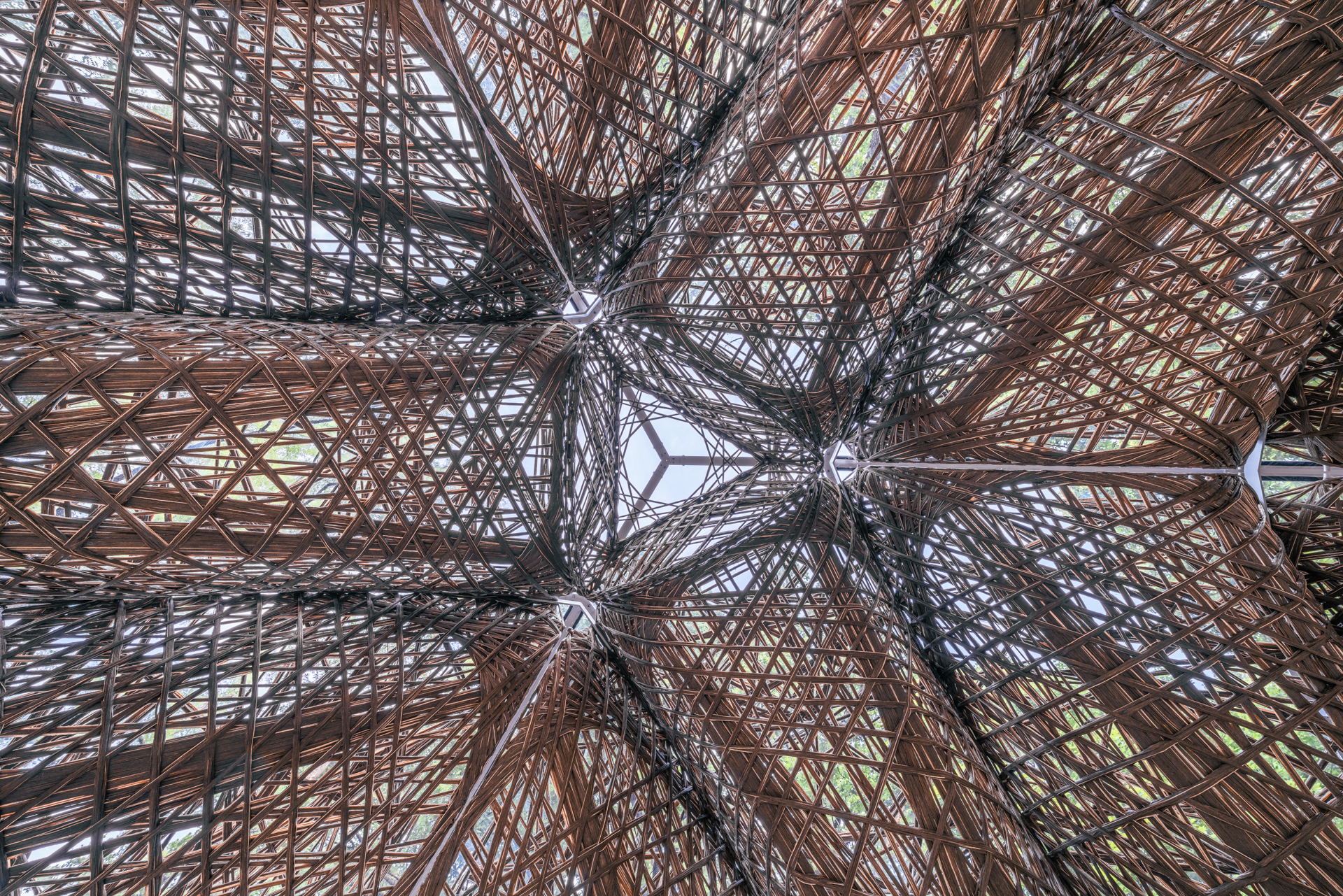

The bioinspired pavilion showcases how novel co-design processes that account concurrently for geometrical, material, structural, productional, environmental, and aesthetic requirements, together with advanced robotic fabrication techniques applied to natural materials, are capable to generate a unique architecture that is at the same time ecological and expressive. The distinctive, intricate surface appearance of the structural flax elements is evocative of both vernacular examples of latticework and biological systems.

For the next 5 years, the livMatS Pavilion will serve as an outdoor lecture room at the University of Freiburg, especially for the Cluster of Excellence "Living, Adaptive and Energy-autonomous Material Systems (livMatS)”, which uses the Botanic Garden within the concept of “Learning from nature in Nature” as a research and teaching site.

Process images and diagrams by ICD/ITKE/IntCDC University of Stuttgart

Natural fiber materials

A prerequisite for a sustainable built environment entails the development of new resource-efficient approaches to design and construction, together with continued research into the use of naturally renewable materials.

Fiber composites exhibit outstanding strength-to-weight ratio and this feature provides for an excellent basis for the development of innovative, material-efficient lightweight structures. Carbon and glass fiber reinforced composite materials are already well established in areas such as aerospace engineering, mechanical engineering, and the automotive industry. The importance of natural fibers as a sustainable alternative has become increasingly significant in these fields in the past years. In the construction industry, however, they are scarcely considered as building materials to this day. Over the past two years, a team of architects and engineers of the Institute for Computational Design and Construction (ICD) and the Institute of Building Structures and Structural Design (ITKE) at University of Stuttgart investigated the potential of using natural fibers as a building material, as they present a promising and sustainable alternative to synthetically produced fibers.

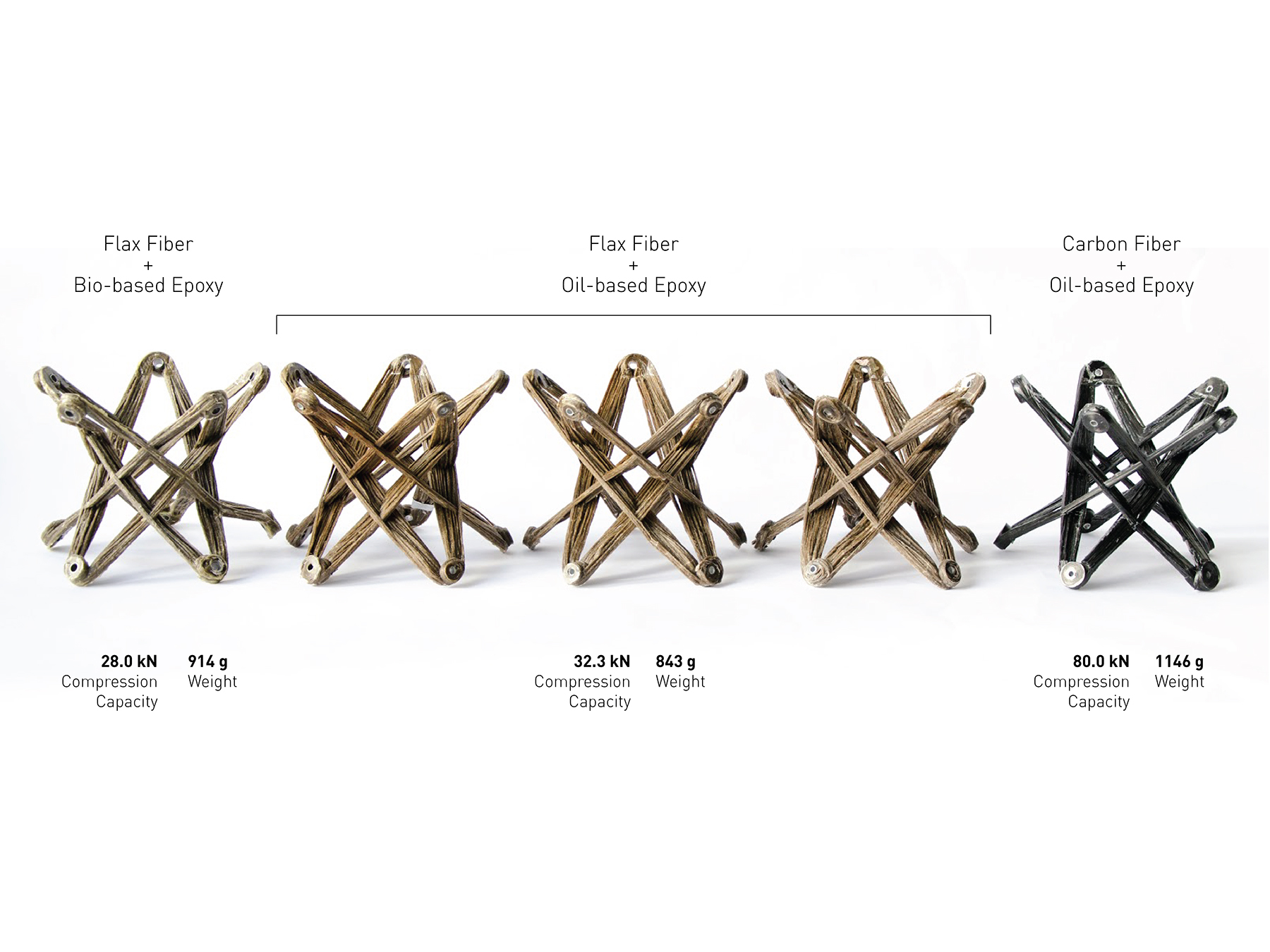

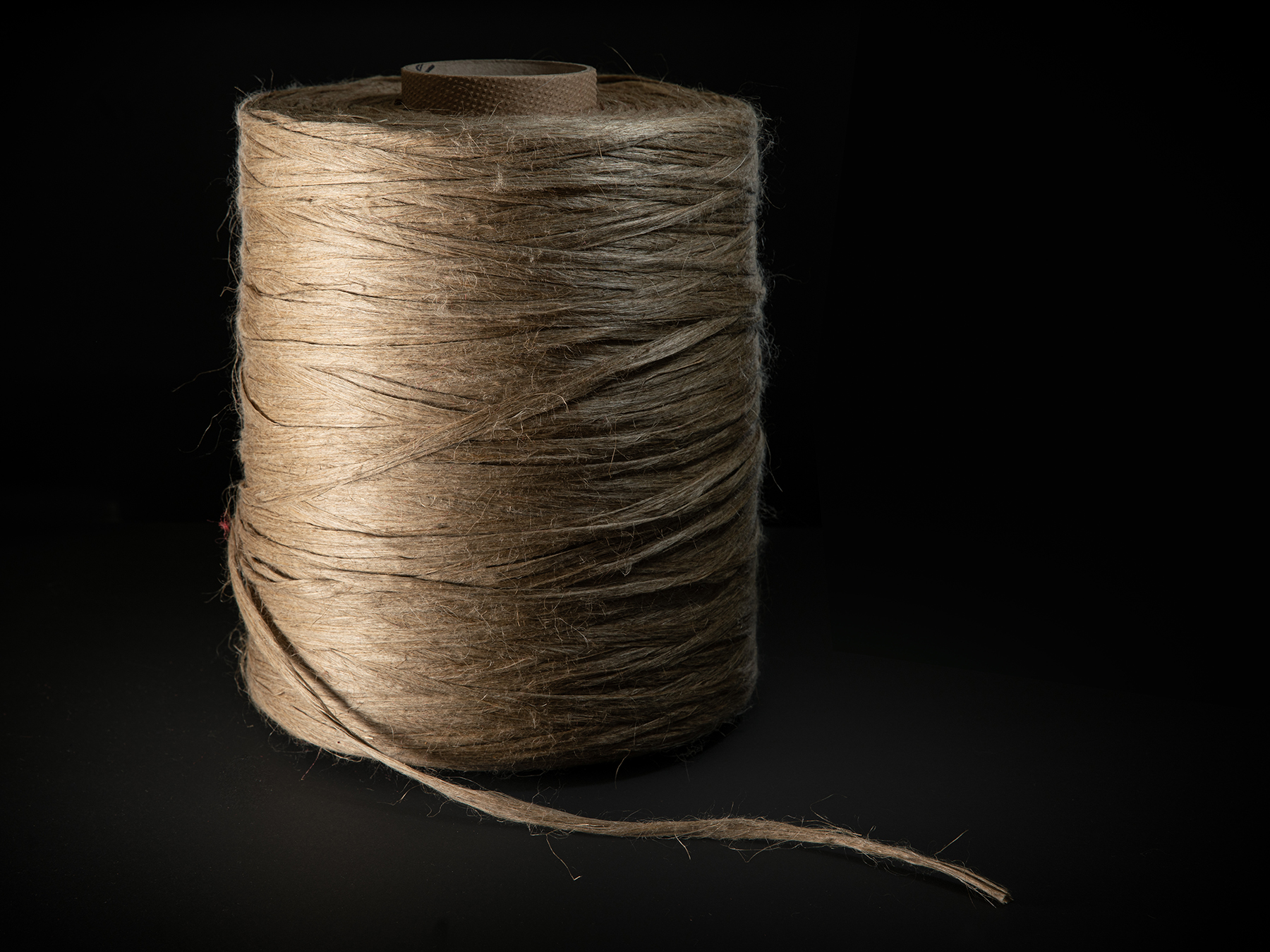

The structural components of the livMatS pavilion are built with flax fibers. These fibers have been used for the production of linen fabrics and garments for millennia, until cotton began replacing them from the 18th century on. They are comparable in their mechanical properties to glass fiber rovings; they provide similar stiffness per weight, but with a much lower embodied energy. Unlike glass or carbon fibers as well as many other natural fibers, flax fibers are regionally available in Central Europe and grow in annual crop cycles. They are entirely renewable, biodegradable, and therefore provide an excellent basis for the development of innovative resource-saving alternatives for the construction industry. They offer the potential, especially in combination with efficient lightweight design, to significantly reduce the environmental footprint of buildings.

Biomimetic investigation

Biology serves as an inspirational model in various disciplines. Especially in architecture, it inspires through its effective, efficient, and resource-saving use of energy and materials. For example, most load-bearing systems in nature are built from fiber-reinforced materials systems and their fibrous structures are typically highly differentiated; the orientation, direction, and density of the fibers are precisely tailored to the locally occurring forces, and no material is wasted or used where it is not required.

The livMatS Pavilion continues the long-standing research collaboration at the Universities of Freiburg and Stuttgart in this field, who are investigating how these principles can be transferred from nature into architecture.

The livMatS pavilion was inspired by the saguaro cactus (Carnegia gigantea) and the prickly pear cactus (Opuntia sp.), which are characterized by their special wood structure. The saguaro cactus has a cylindrical wooden core that is hollow inside and thus particularly light. It consists of a net-like wooden structure, which gives the skeleton additional stability and is formed as a result of the intergrowth of its individual wood elements. The tissue of the flattened side shoots of the prickly pear cactus is also interwoven with net-like wood fiber bundles, which are arranged in layers and interconnected. As a result, the tissue of the prickly pear cactus is characterized by a particularly high load-bearing capacity. By abstracting these network structures, the scientists were able to transfer the mechanical properties of the cross-linked fiber structures to the lightweight structural elements of the pavilion.

Integrative design and fabrication

The project expands on more than 10 years of research in fiber construction.  Previous research focused on the use of synthetically produced fiber composites in construction, such as glass and carbon fibers, in combination with advanced computational design, simulation, and fabrication methods. The livMatS pavilion extends this research towards a more sustainable method of construction with natural flax fibers and investigates the use of these natural fibers in a large-scale application.

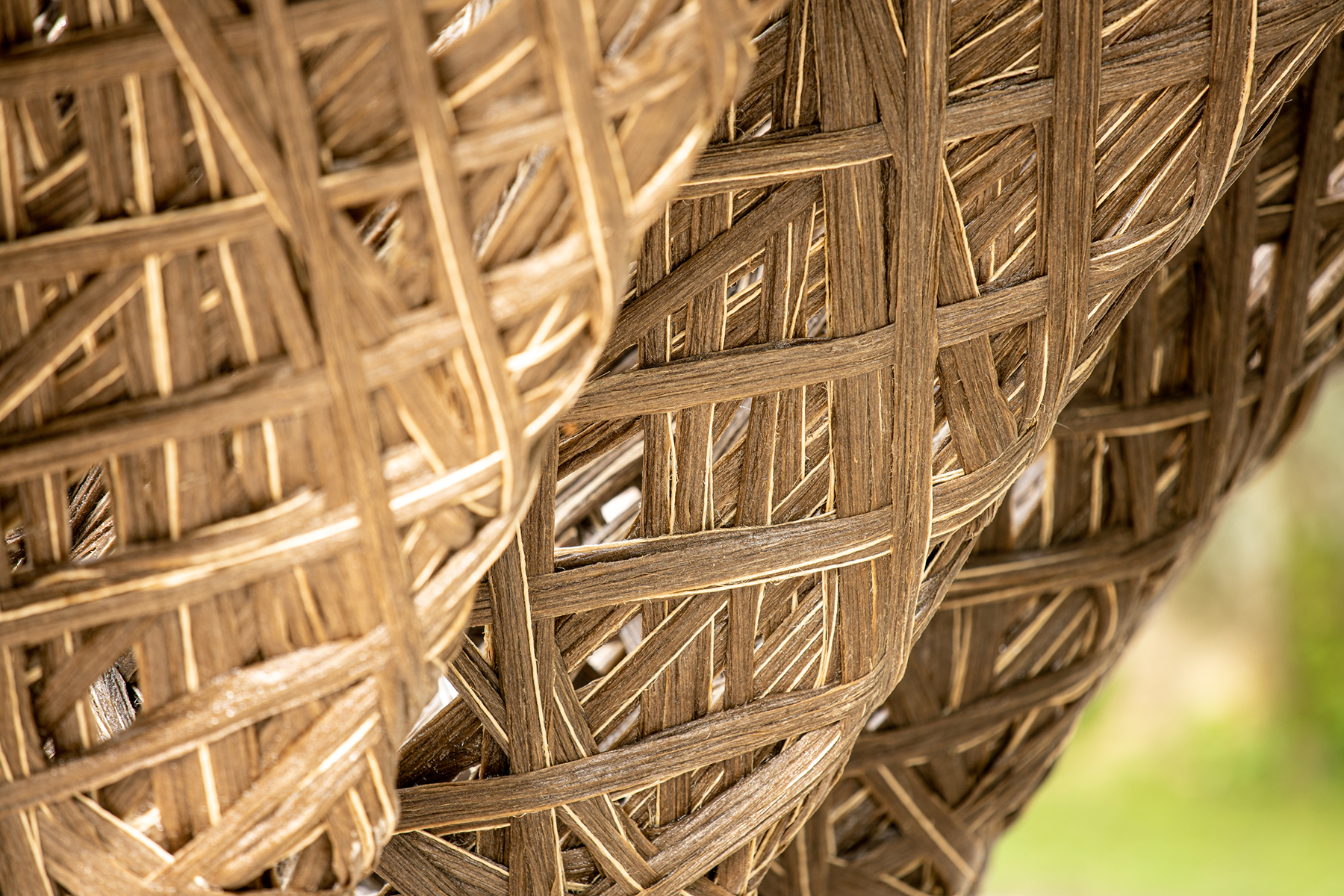

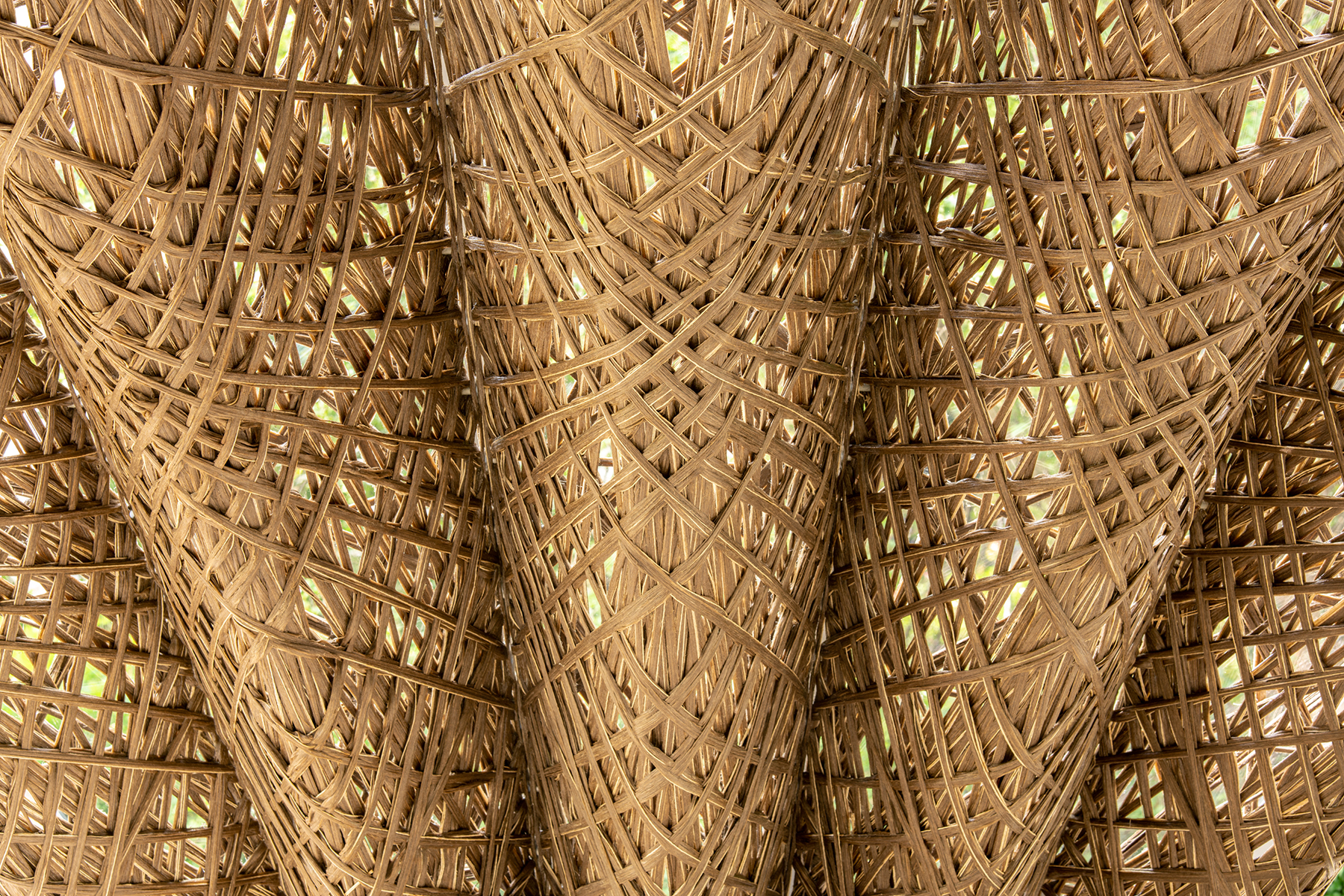

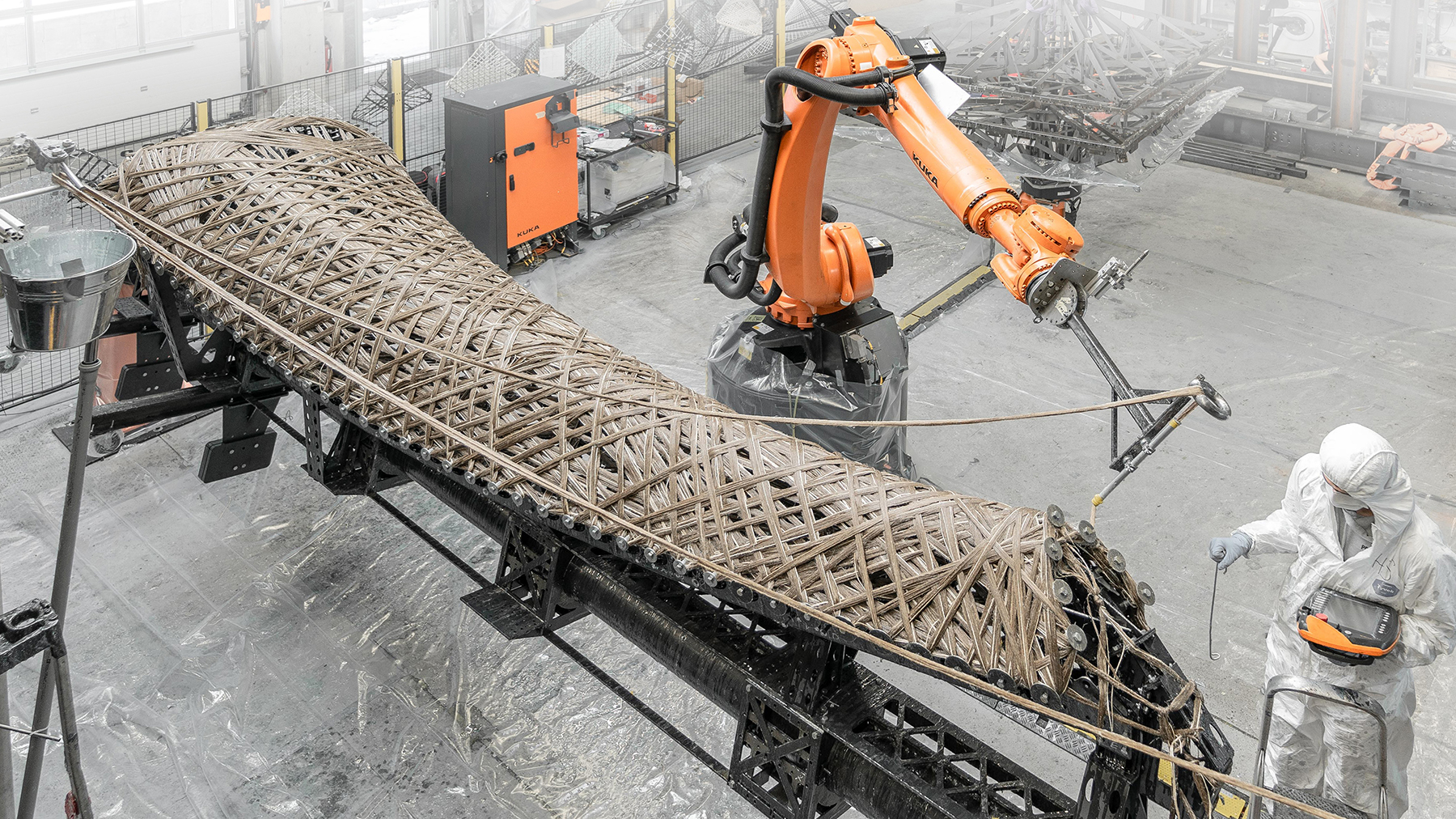

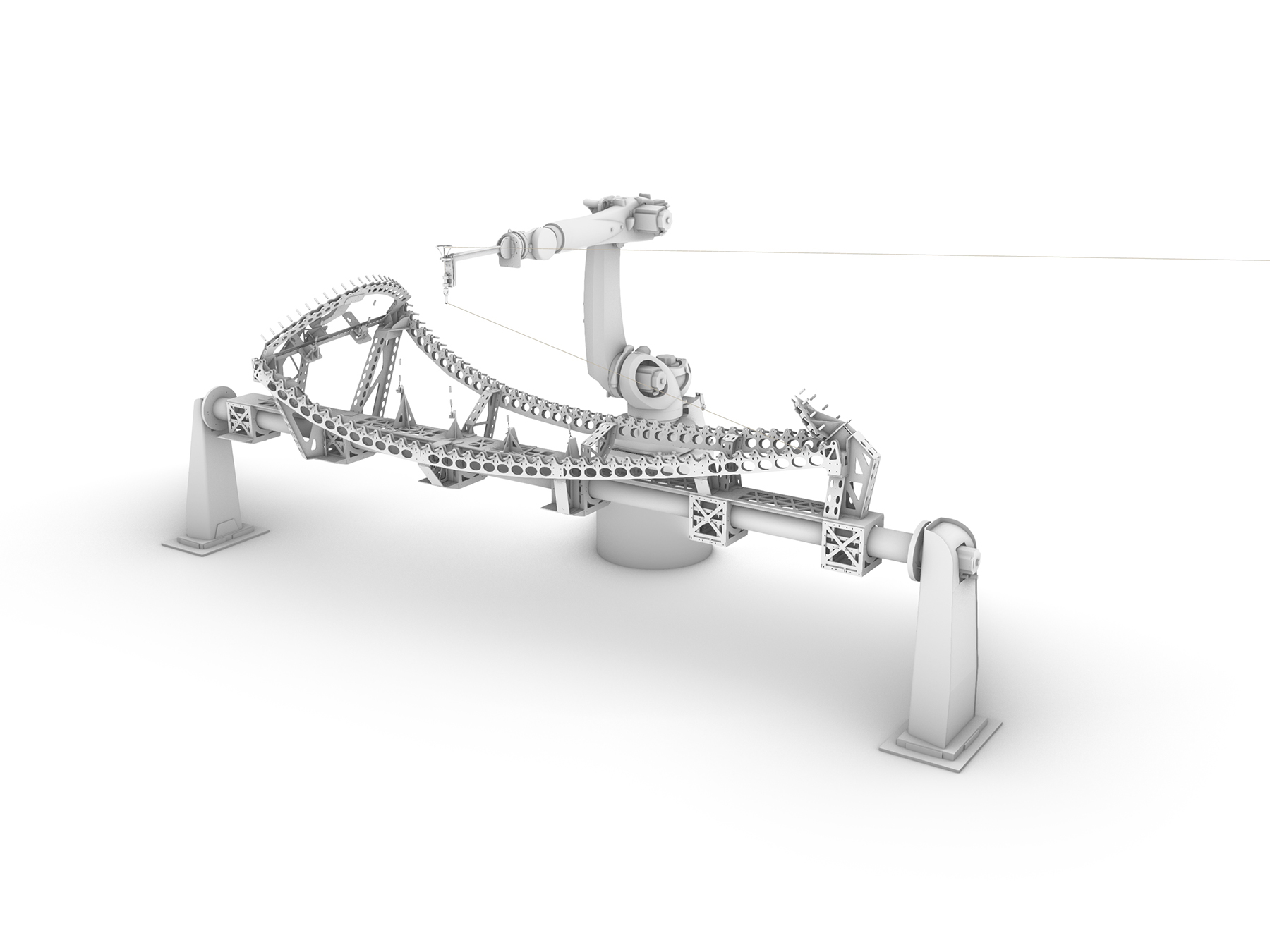

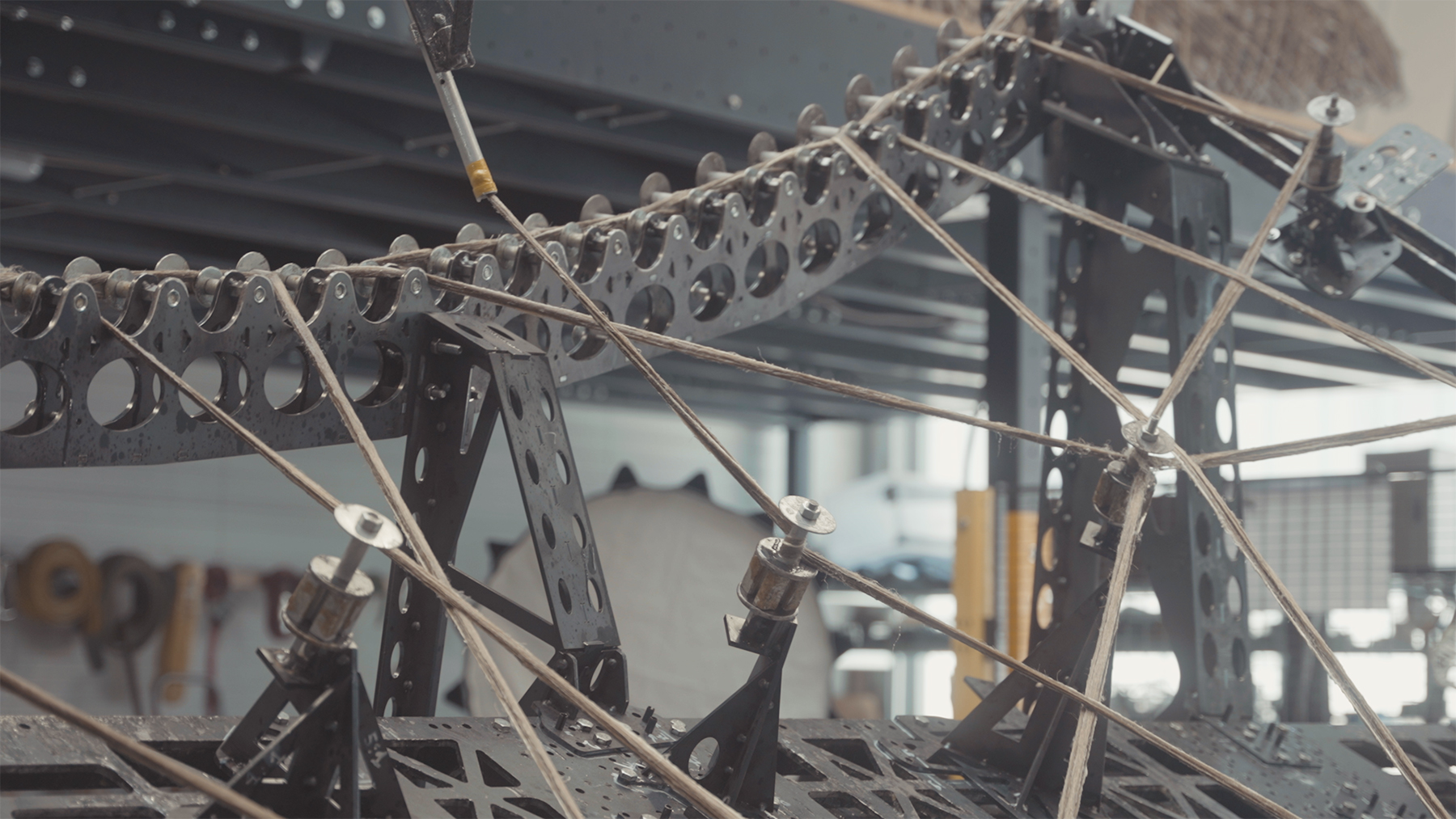

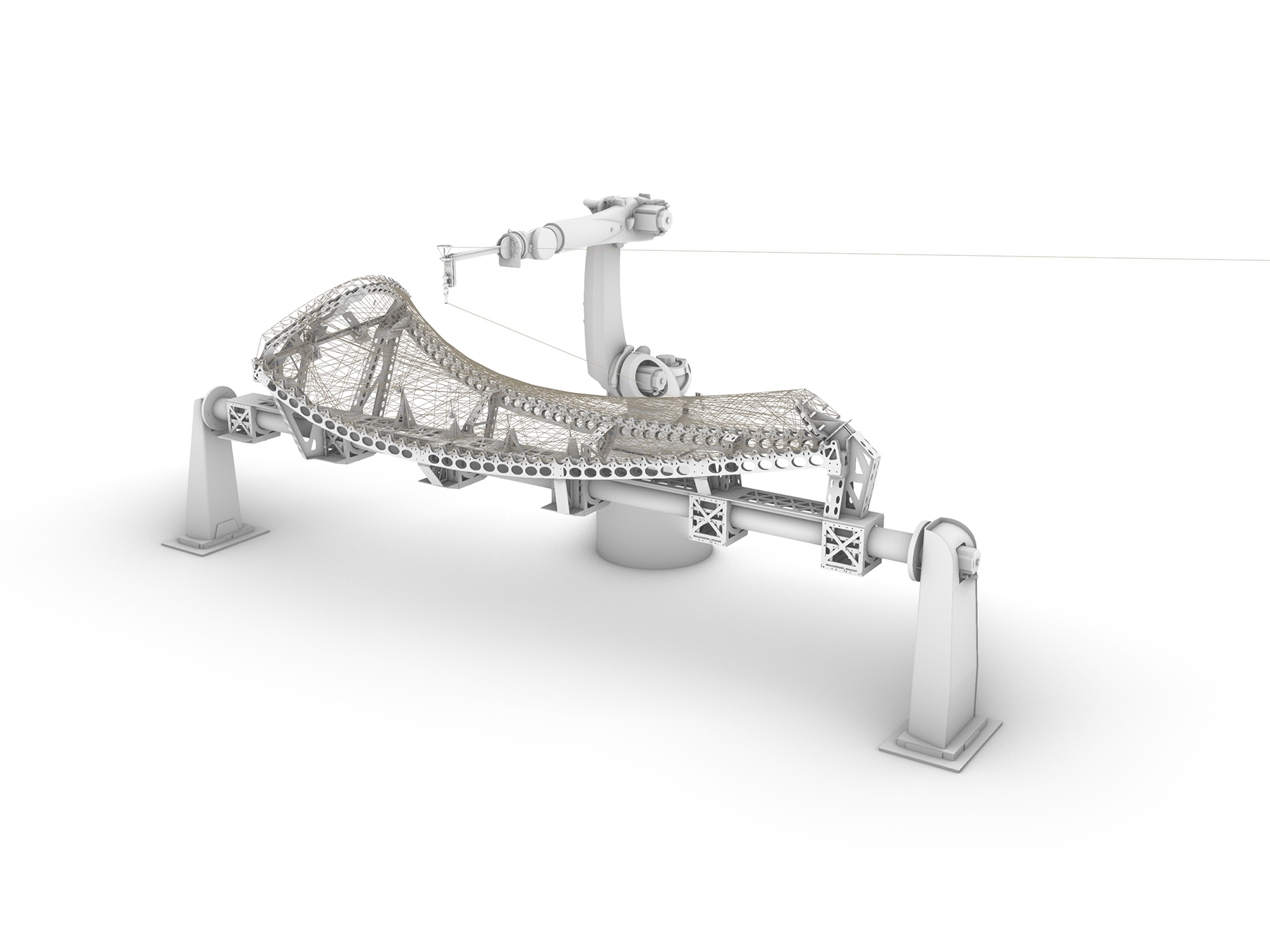

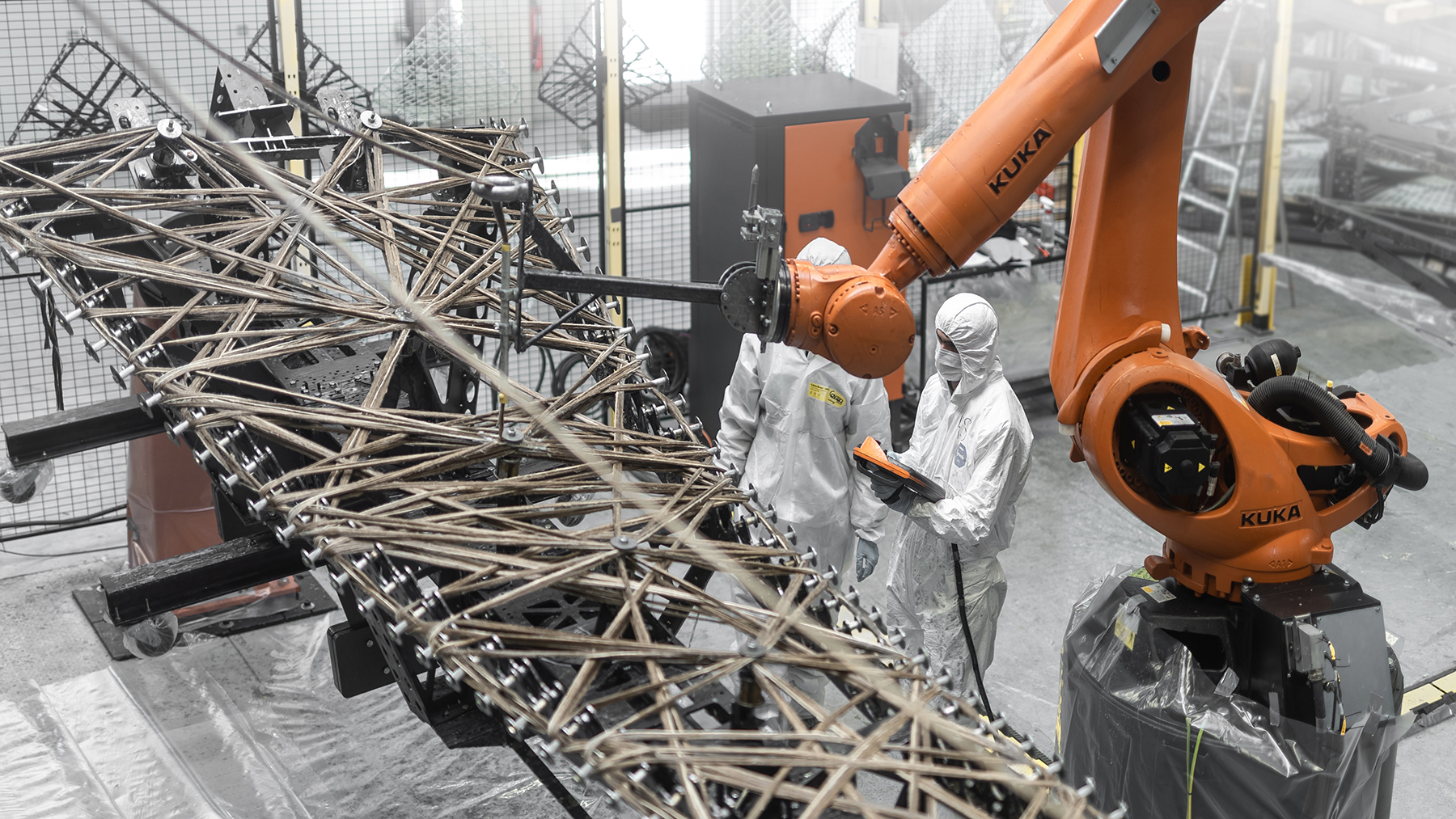

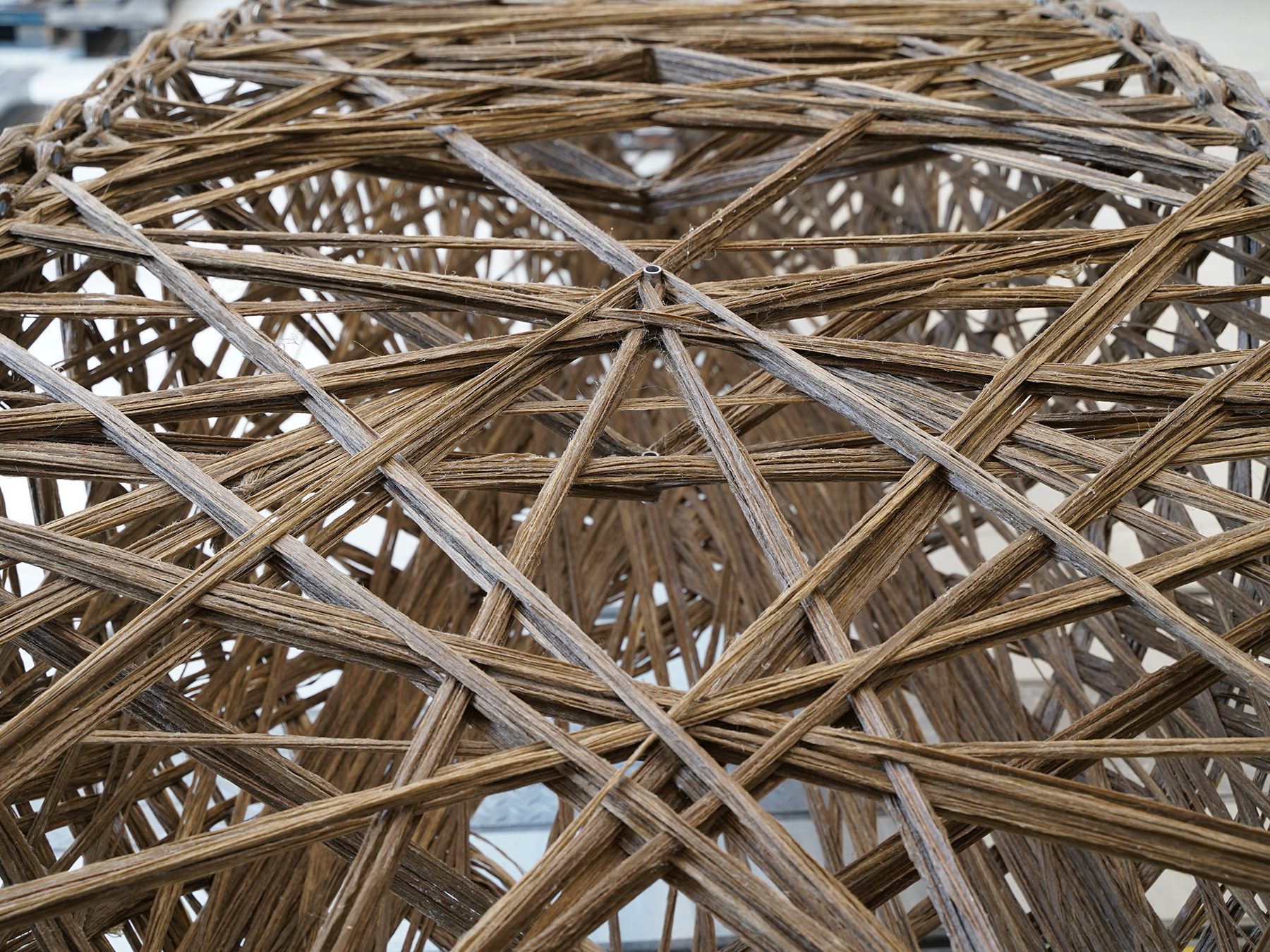

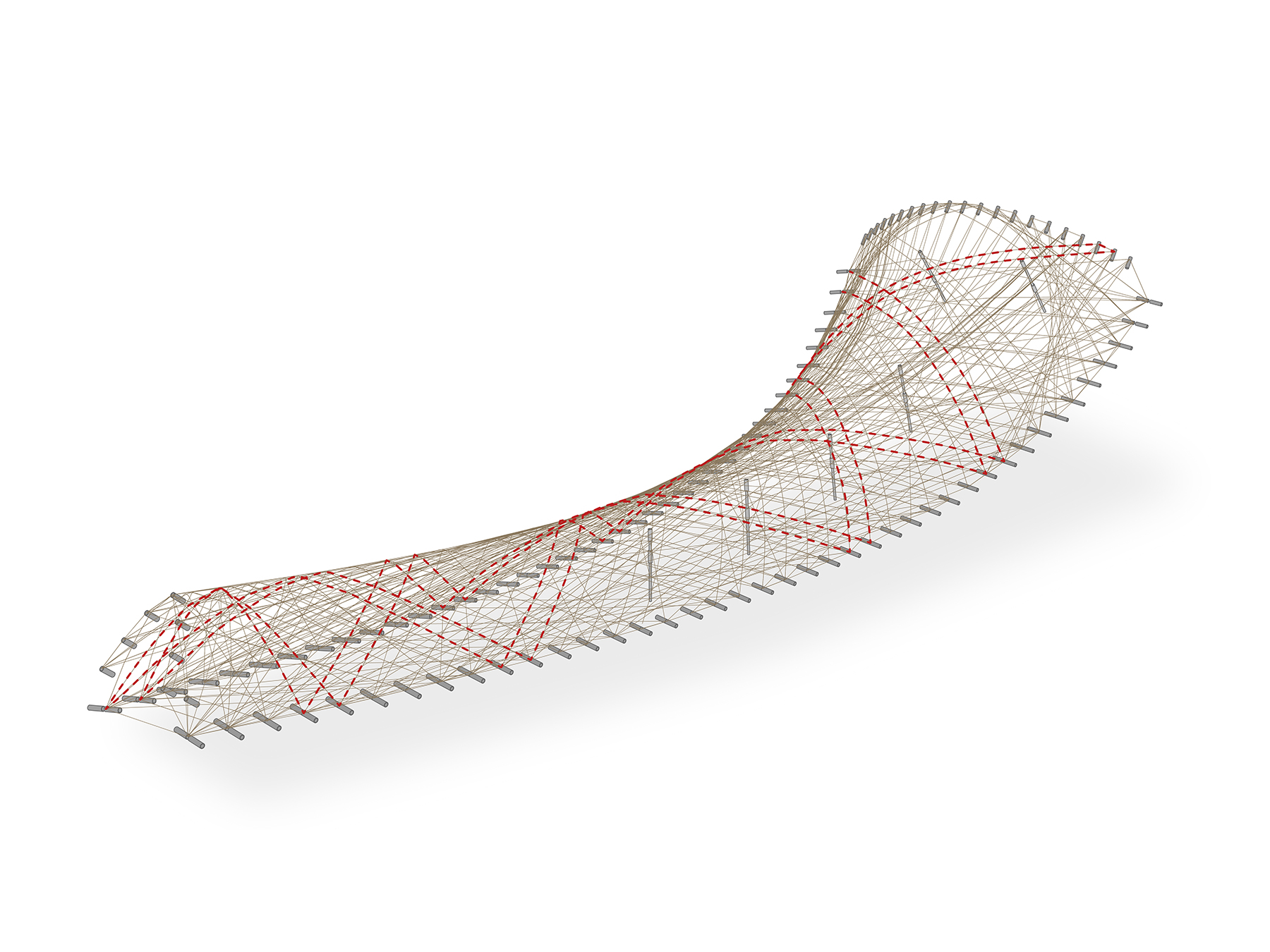

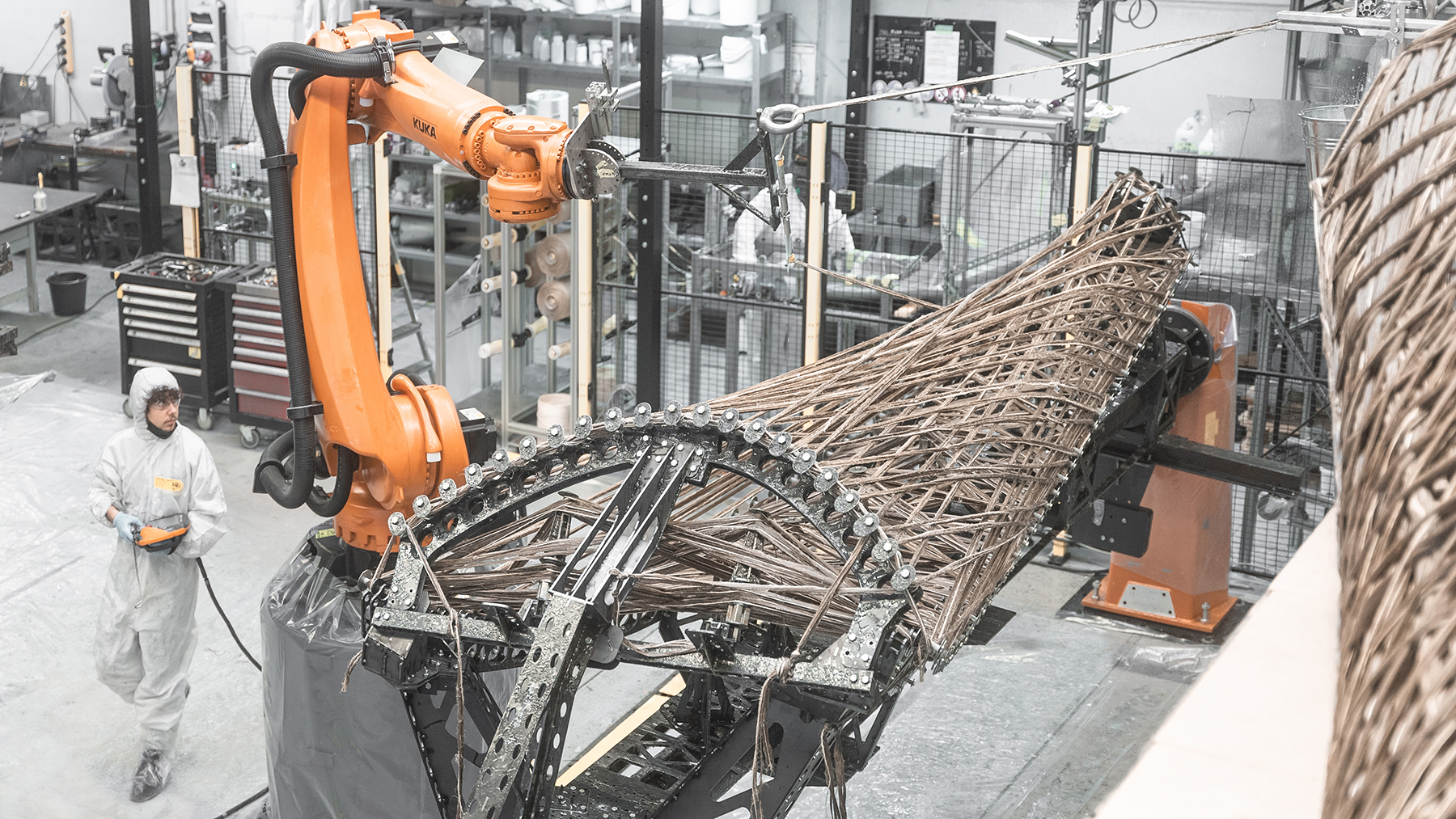

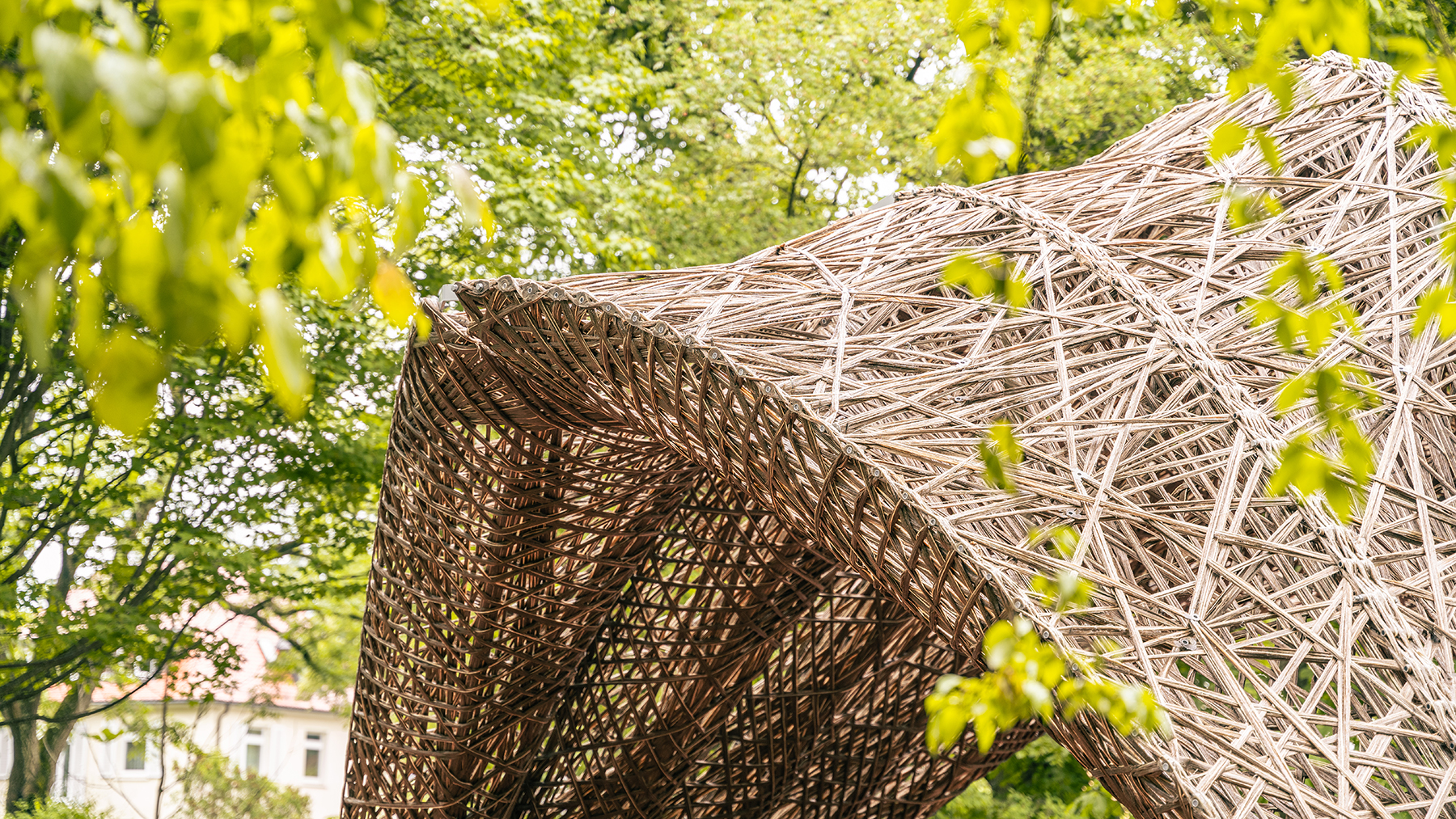

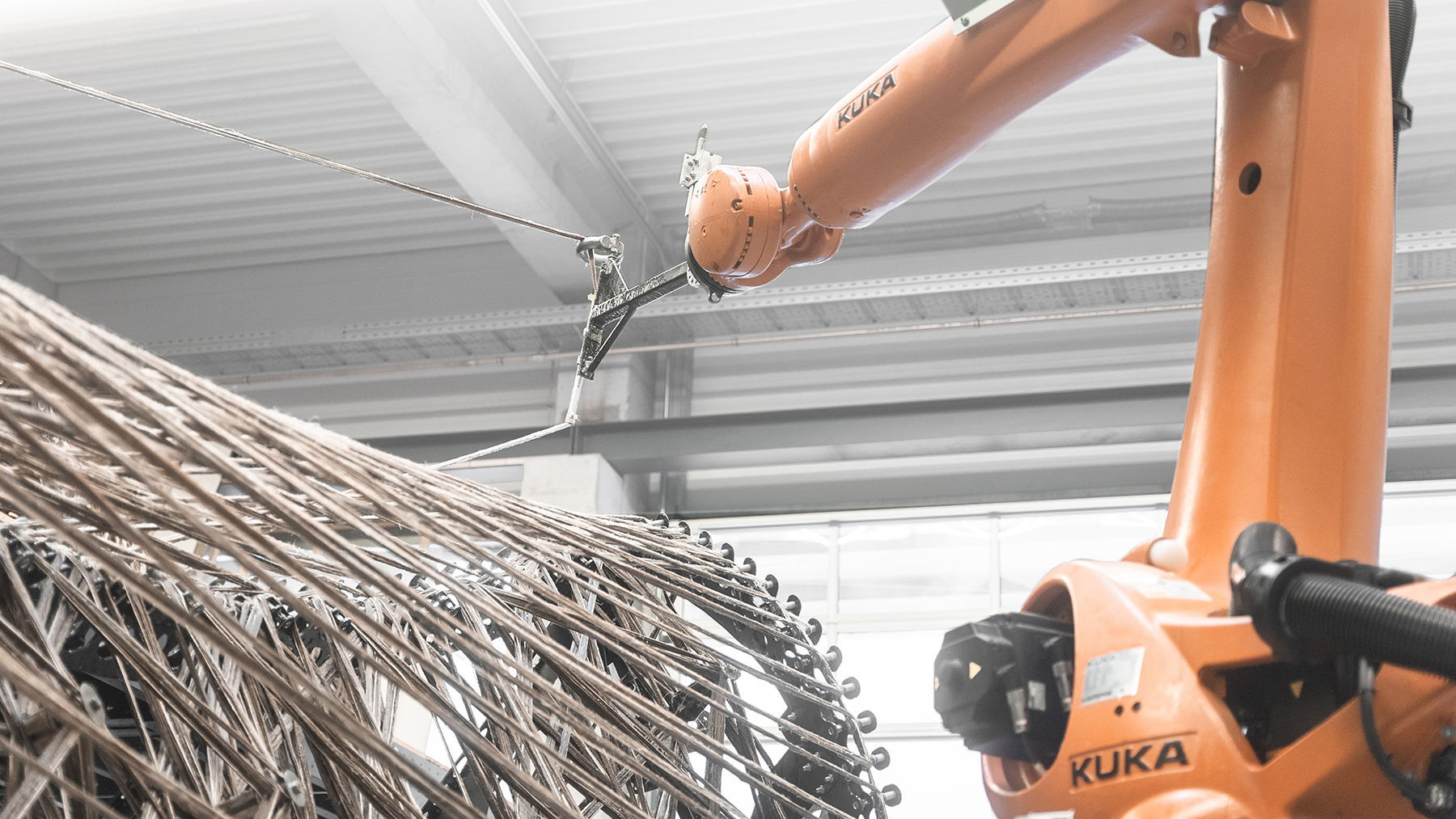

The load-bearing building elements are produced with a coreless filament winding process developed by the project team. In this additive manufacturing approach, a robot very precisely places fiber bundles on a winding frame. This allows for the targeted calibration and architectural articulation of the orientation, alignment, and density of the fibers to fit exactly the structural requirements in the component, as in its biological inspiration. The pre-defined component shape emerges only through the interaction of the fibers within the winding frame, eliminating the need for any additional mold or core. In addition, this fabrication method does not produce any waste or offcuts. Moreover, the same modular winding frame can be used for all geometrically varying elements. This leads to an excellent material efficiency when measured against conventional building materials and results in a high load-bearing capacity.

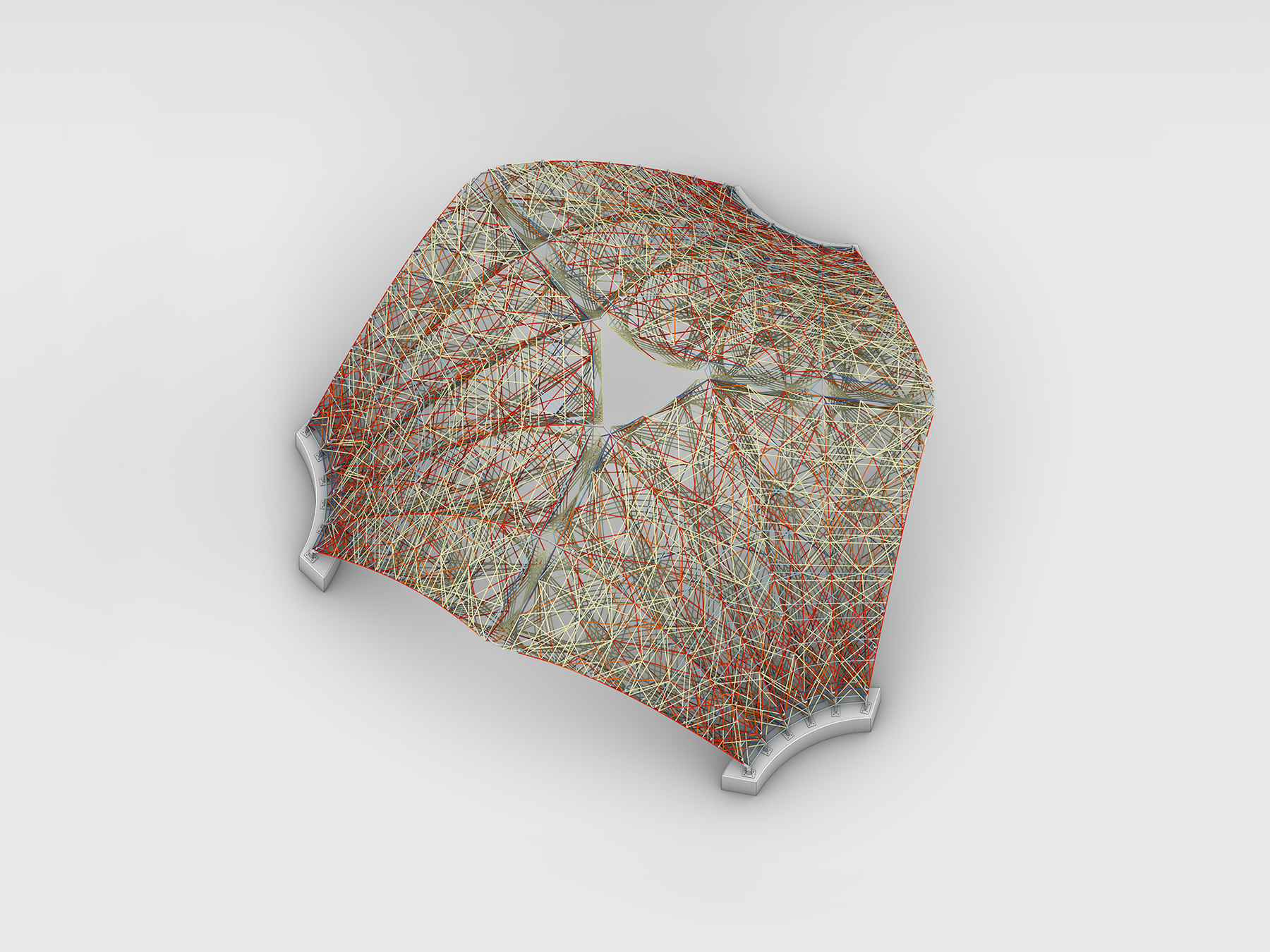

Natural fibers and their biological variability presented the researchers with new challenges, particularly with regard to the computational design and robotic fabrication workflows, as well as to the machine control. These Co-Design workflows were initially developed for synthetic and thus homogeneous materials and now required to be adapted to the material properties of flax fibers. This adjustment of the integrative computational design model enabled the heterogeneous material properties to inform the design and planning of the individual components as well the overall structure. The specific mechanical properties of the natural fibers also required the reconfiguration of the robotic fabrication process.

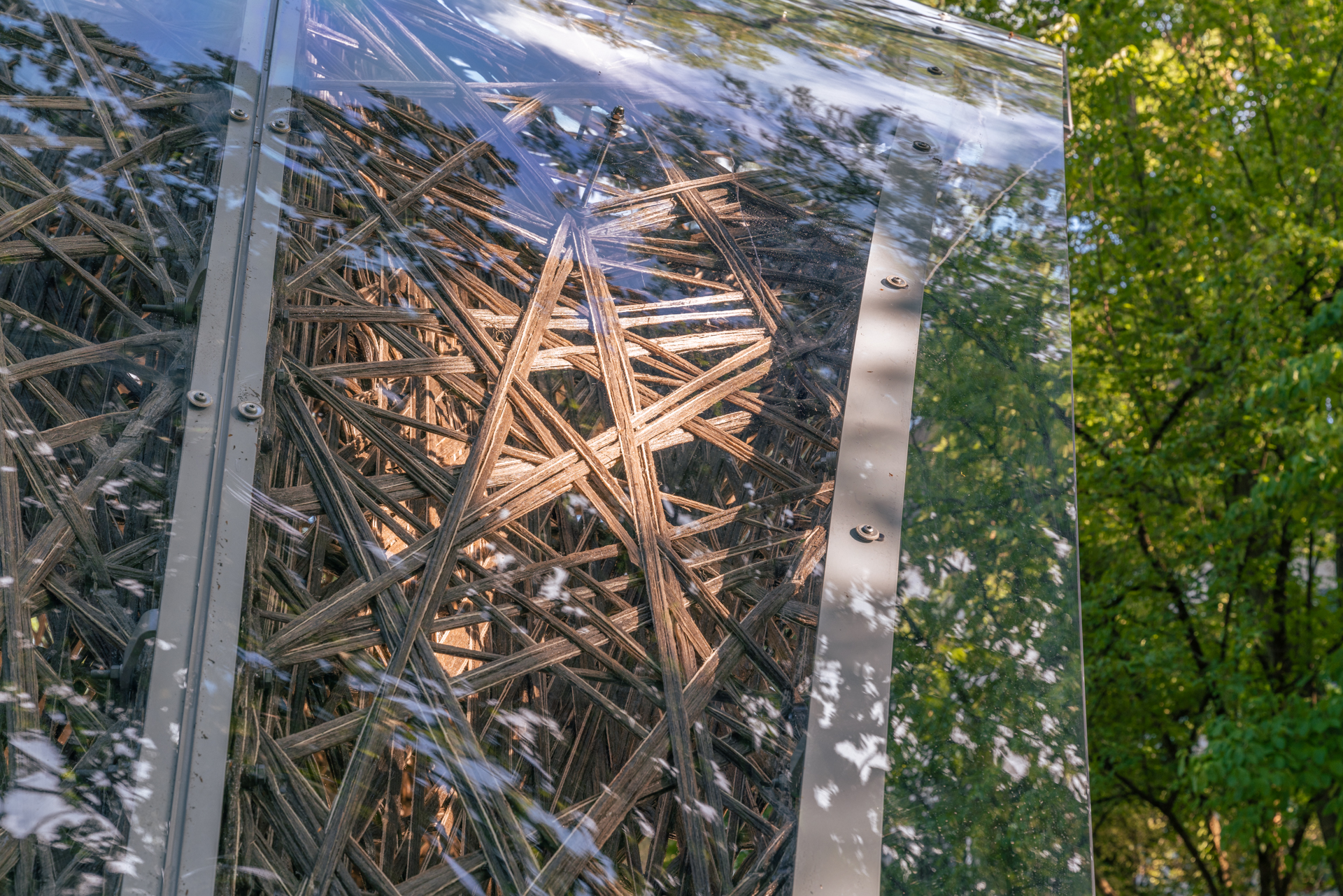

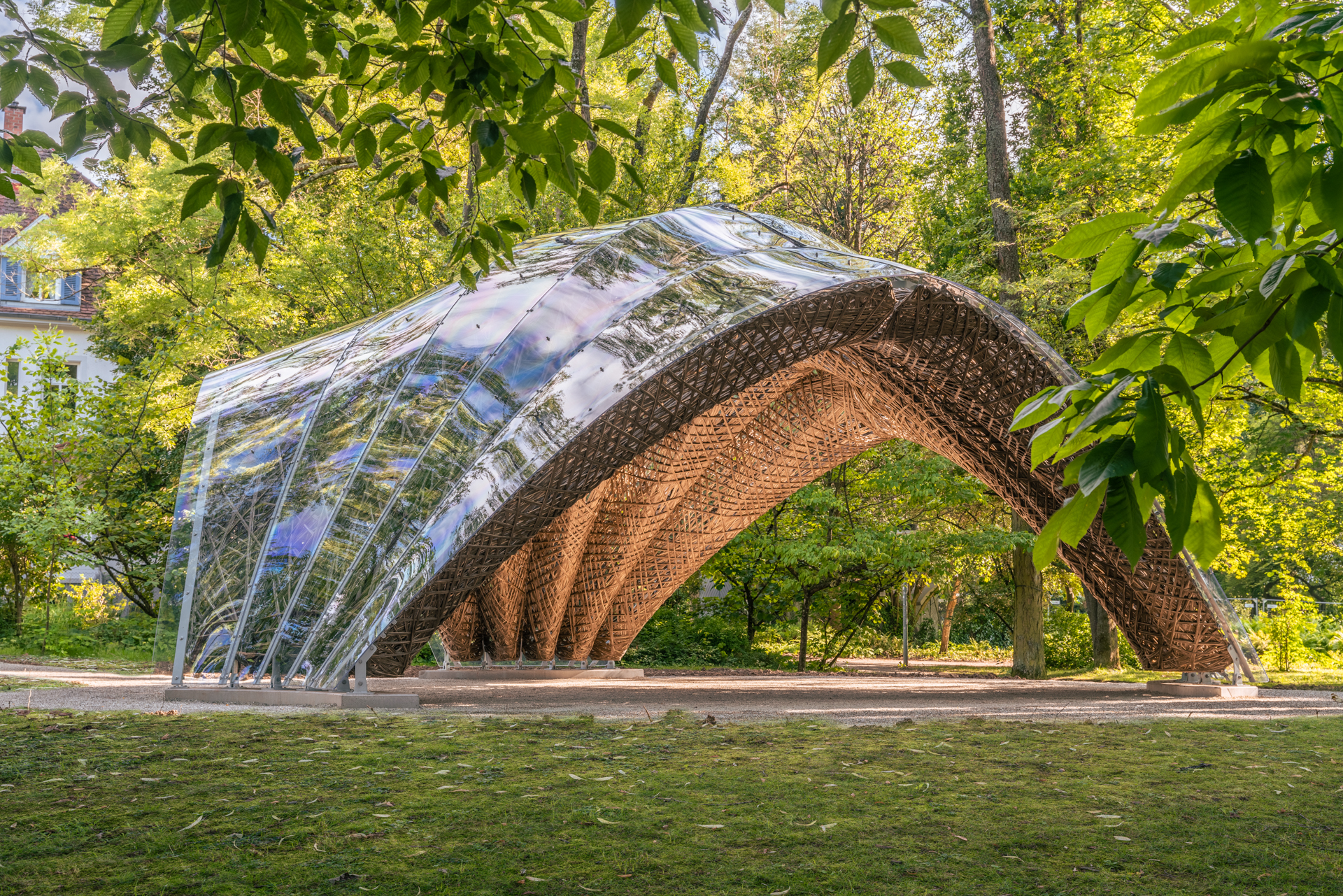

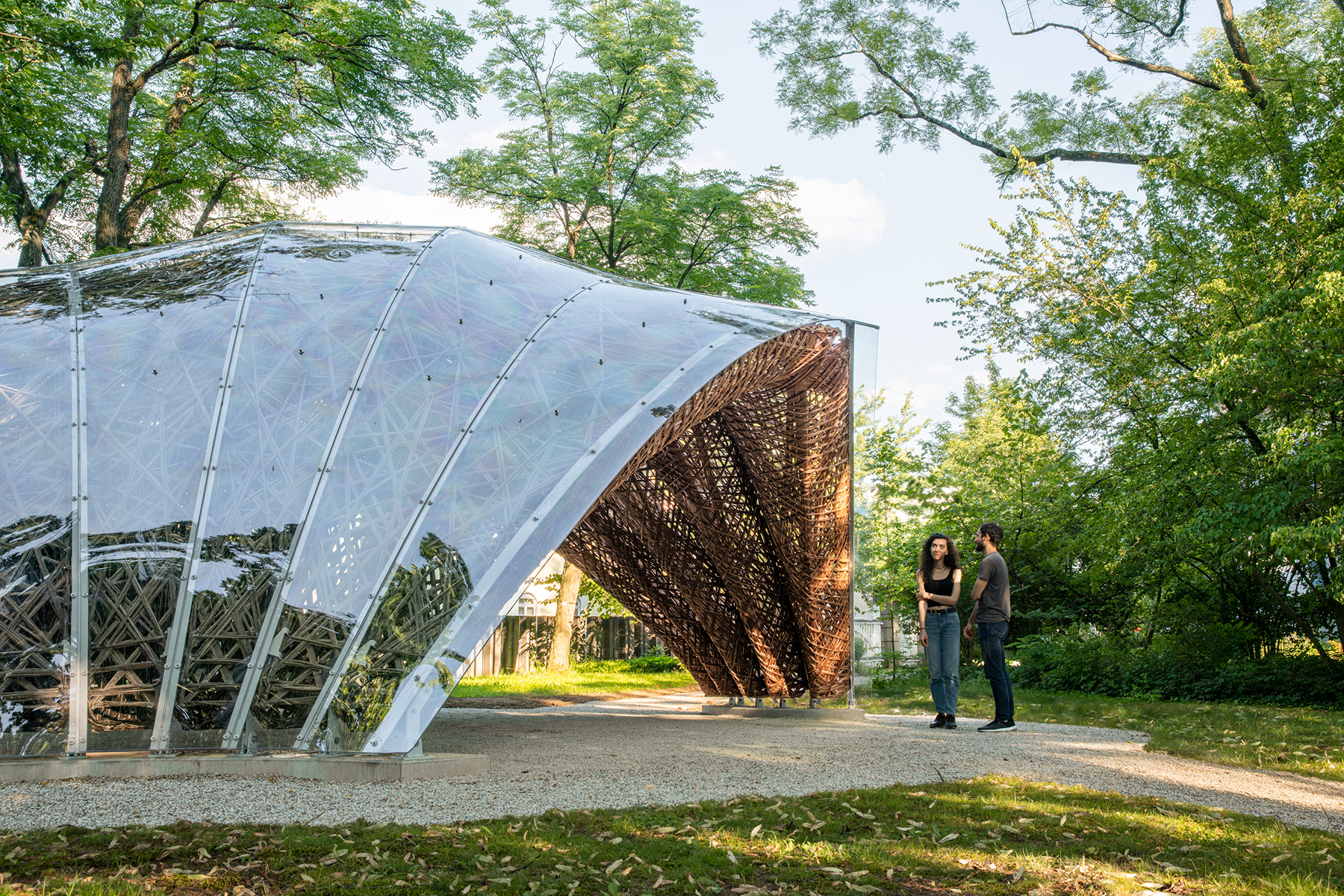

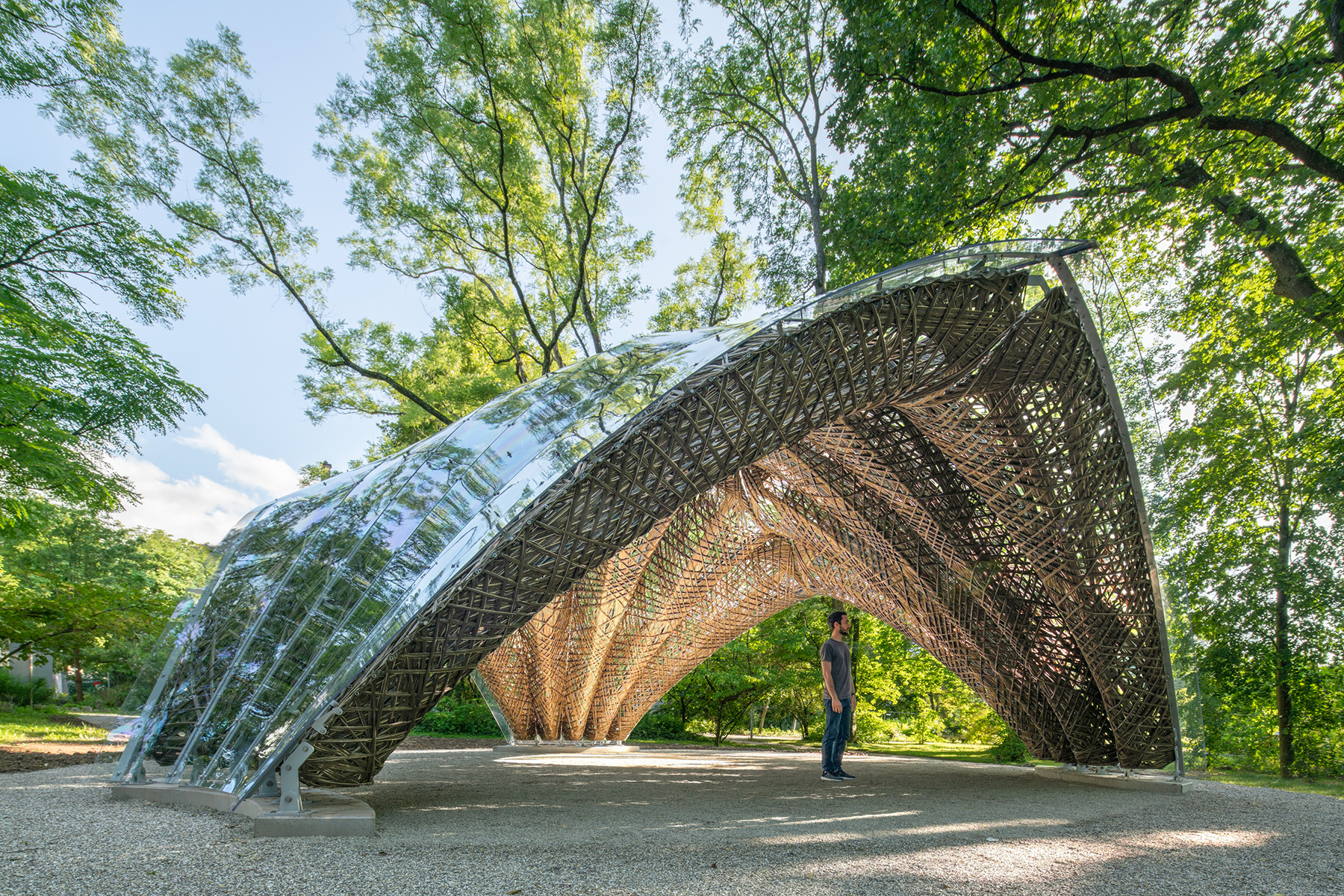

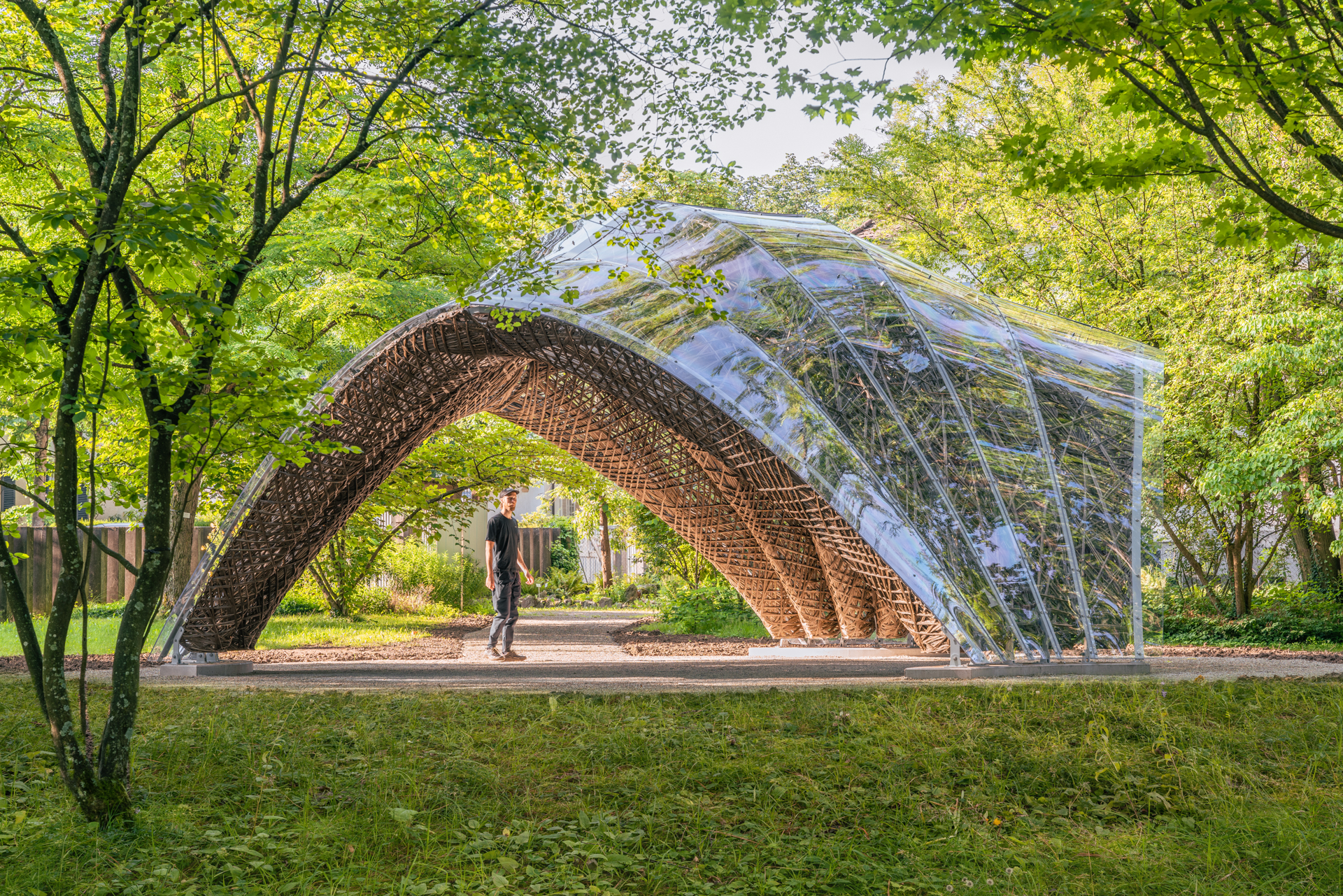

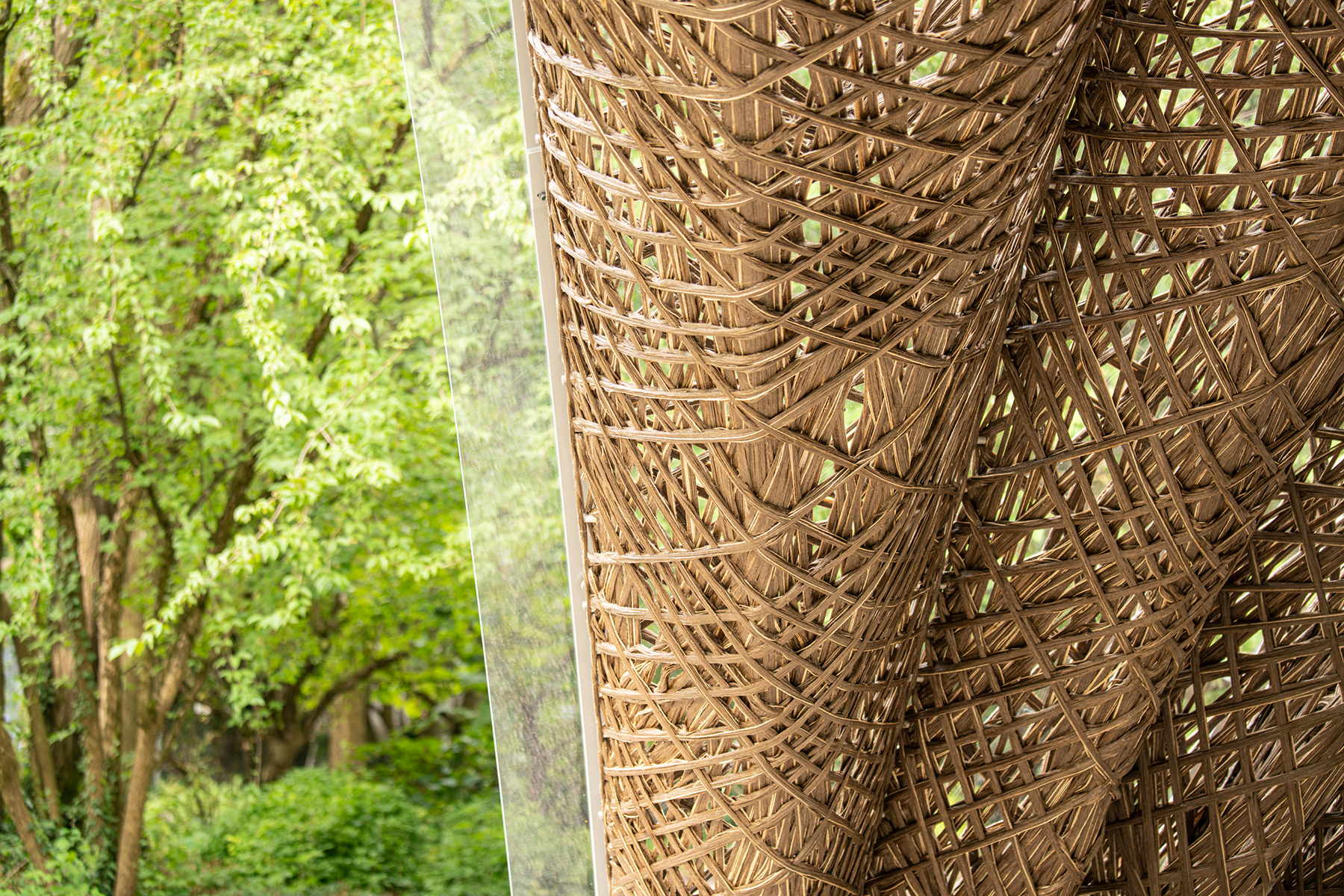

The livMatS pavilion is covered with a waterproof polycarbonate skin, which not only provides weather shelter but also protects the fibers from direct UV radiation, and moisture from rain or snow.

Integrated demonstrator for sustainable construction

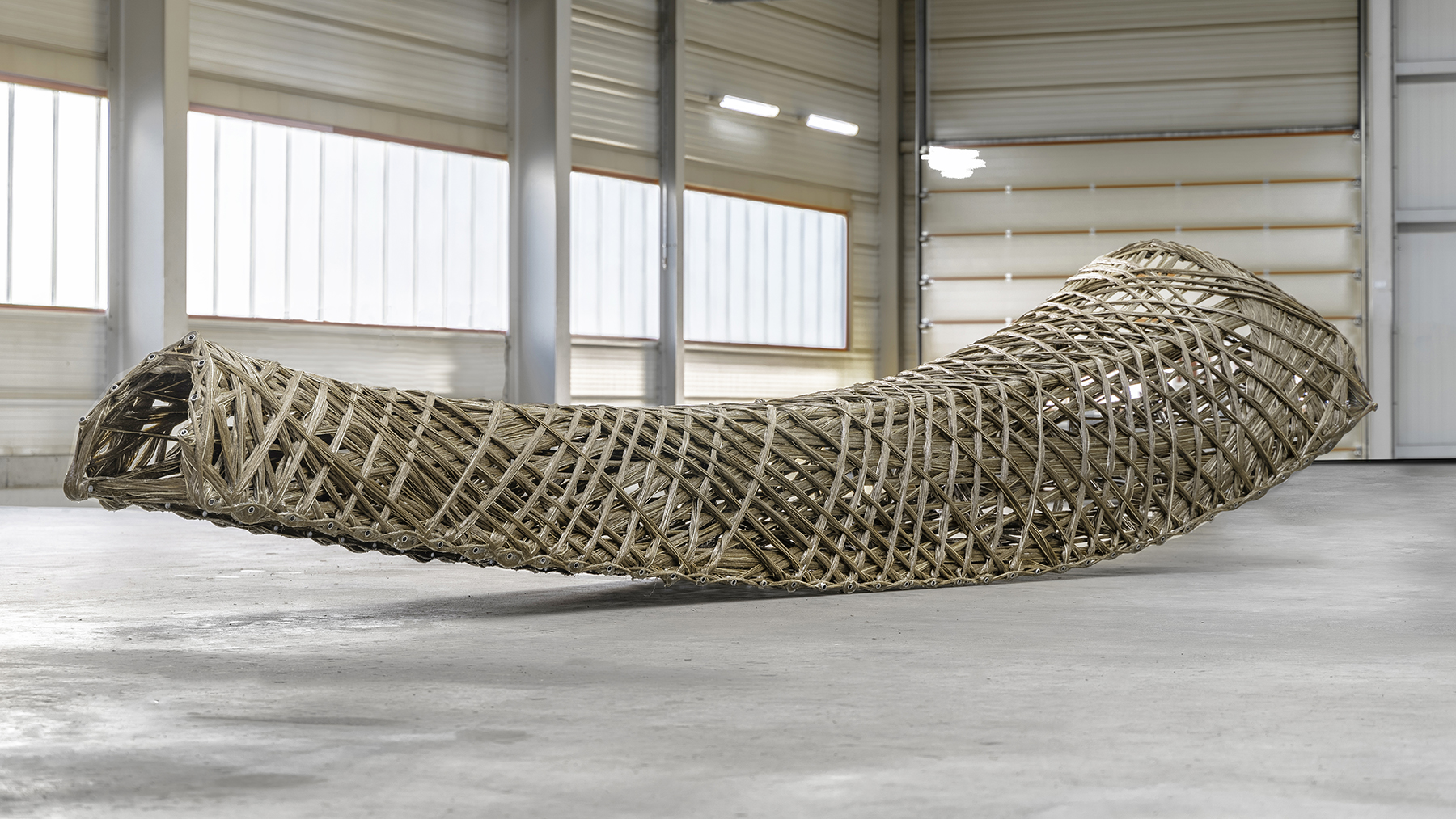

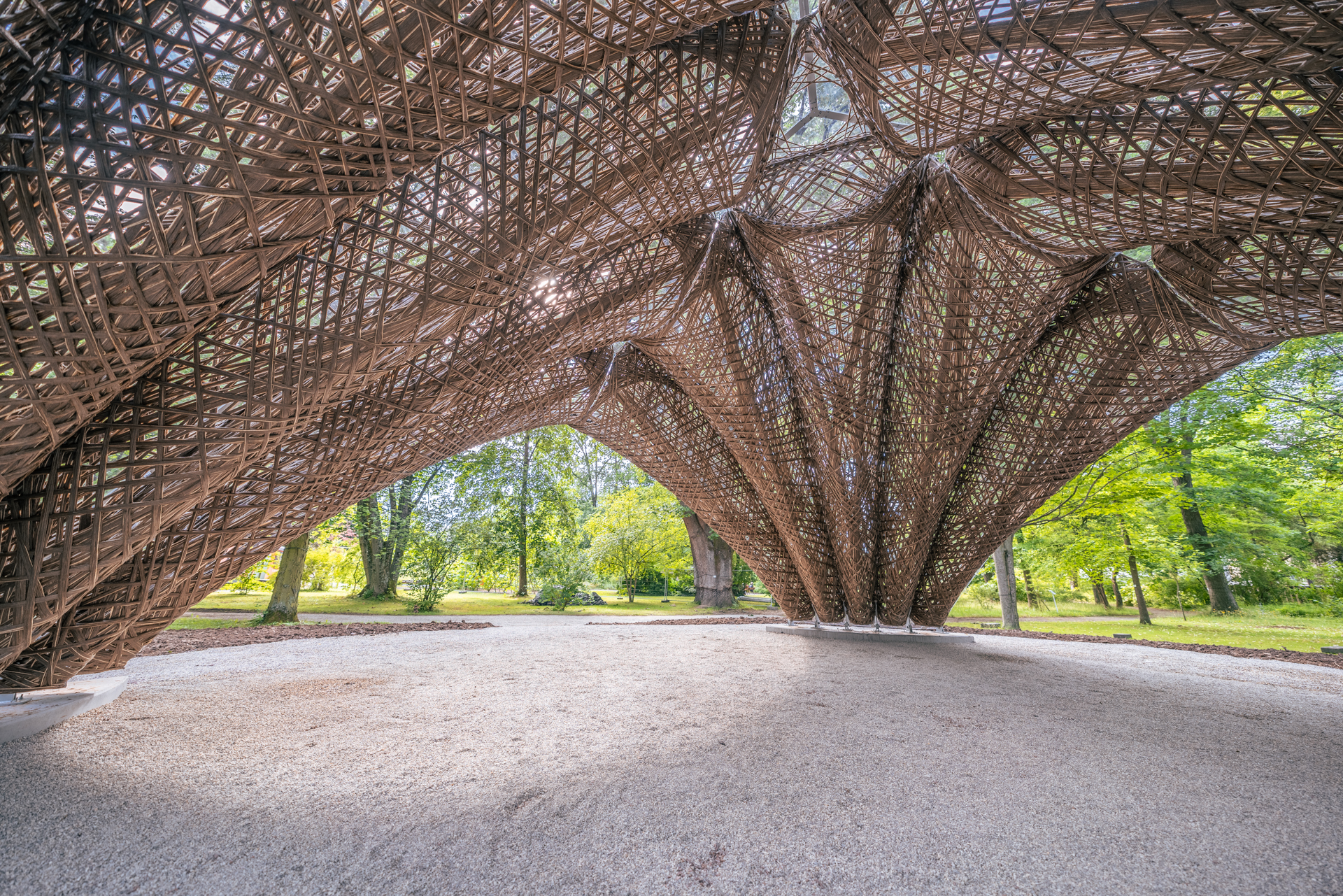

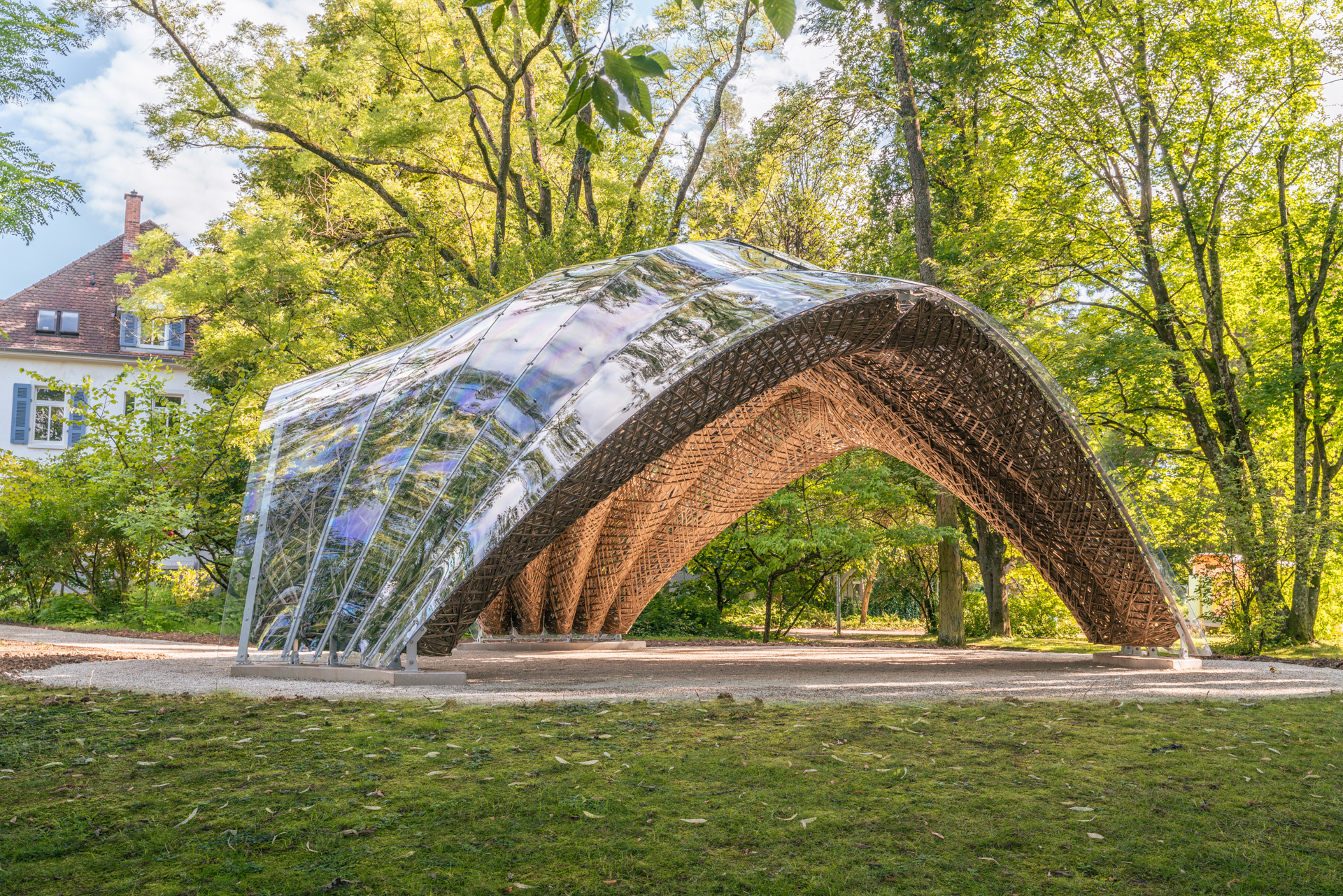

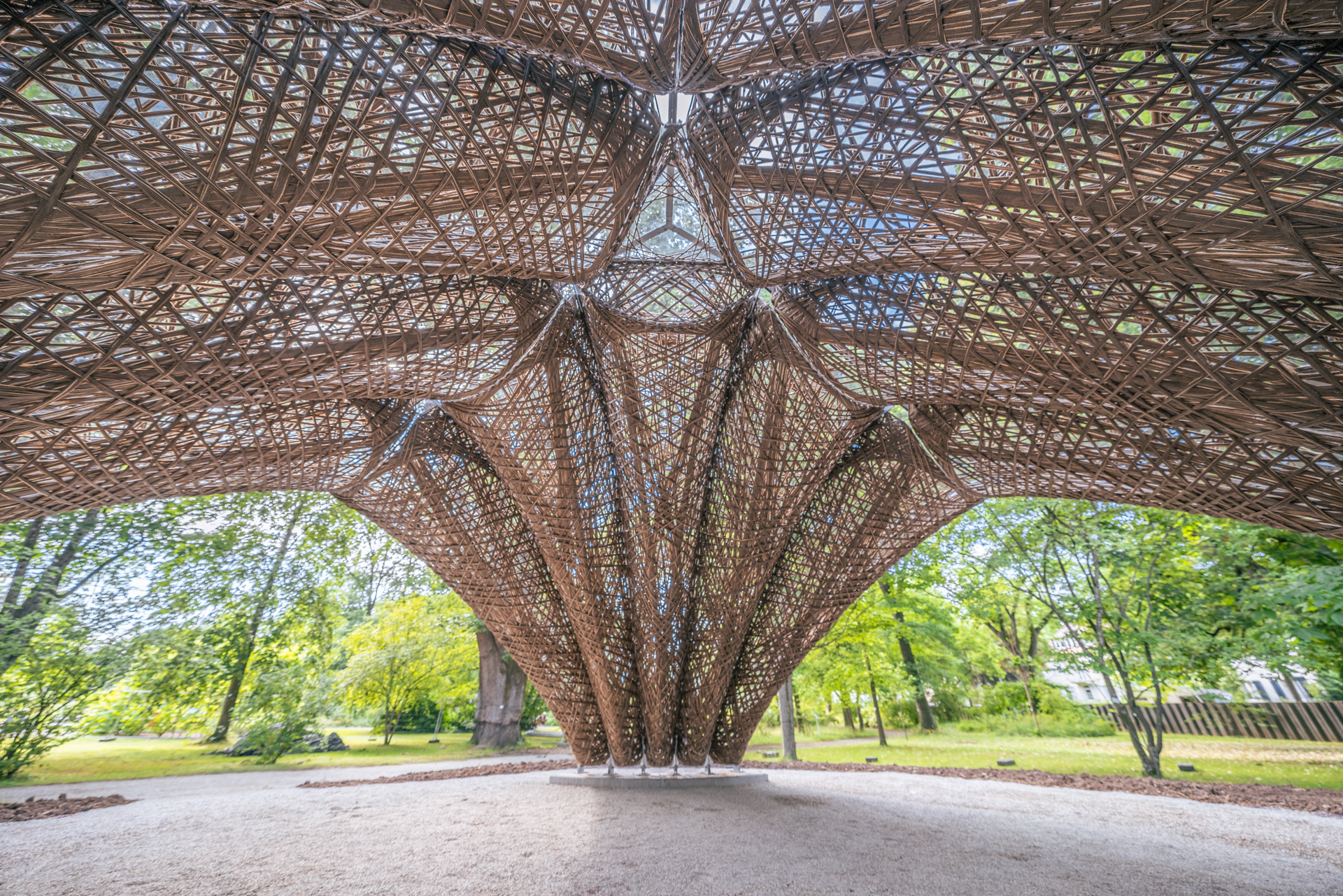

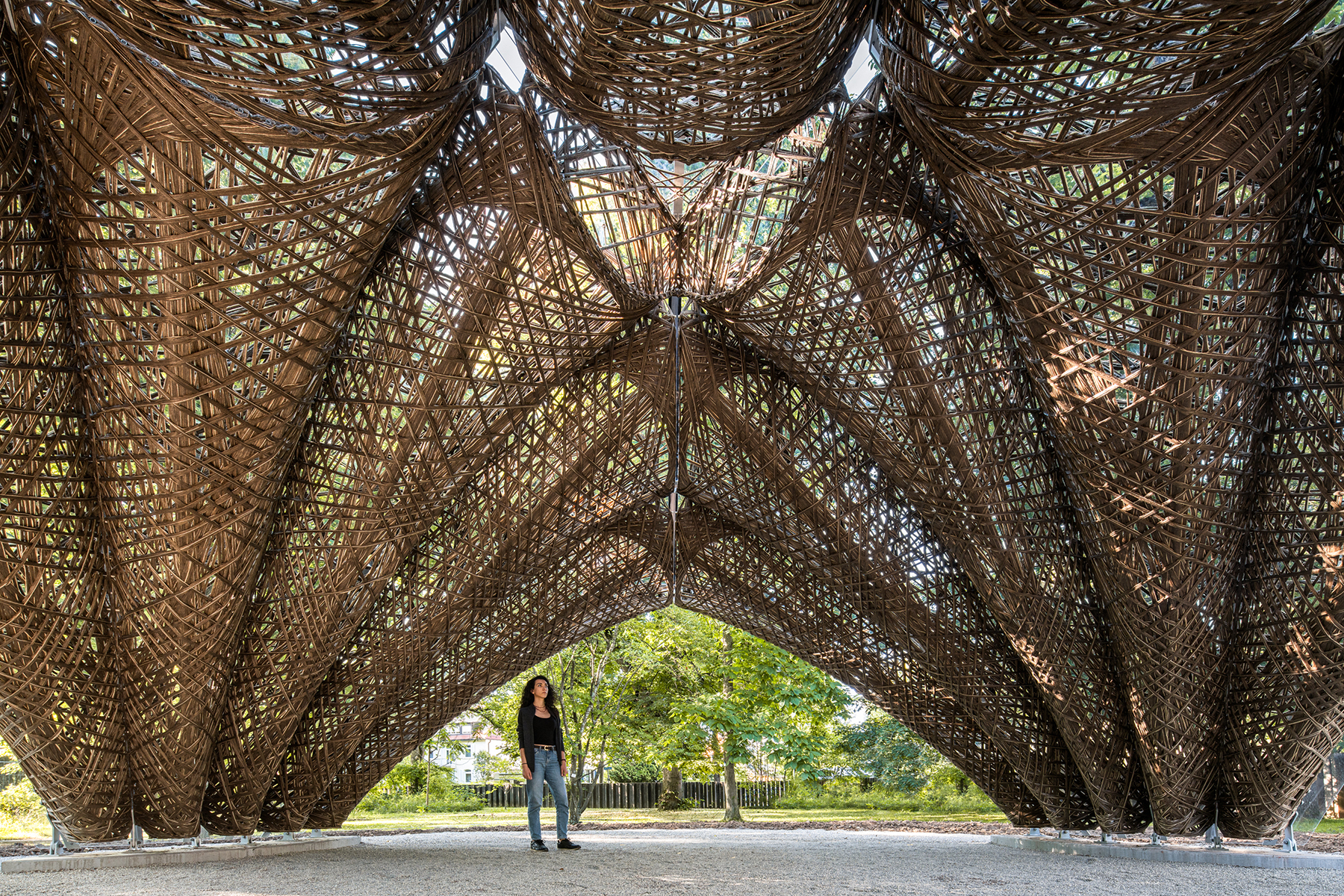

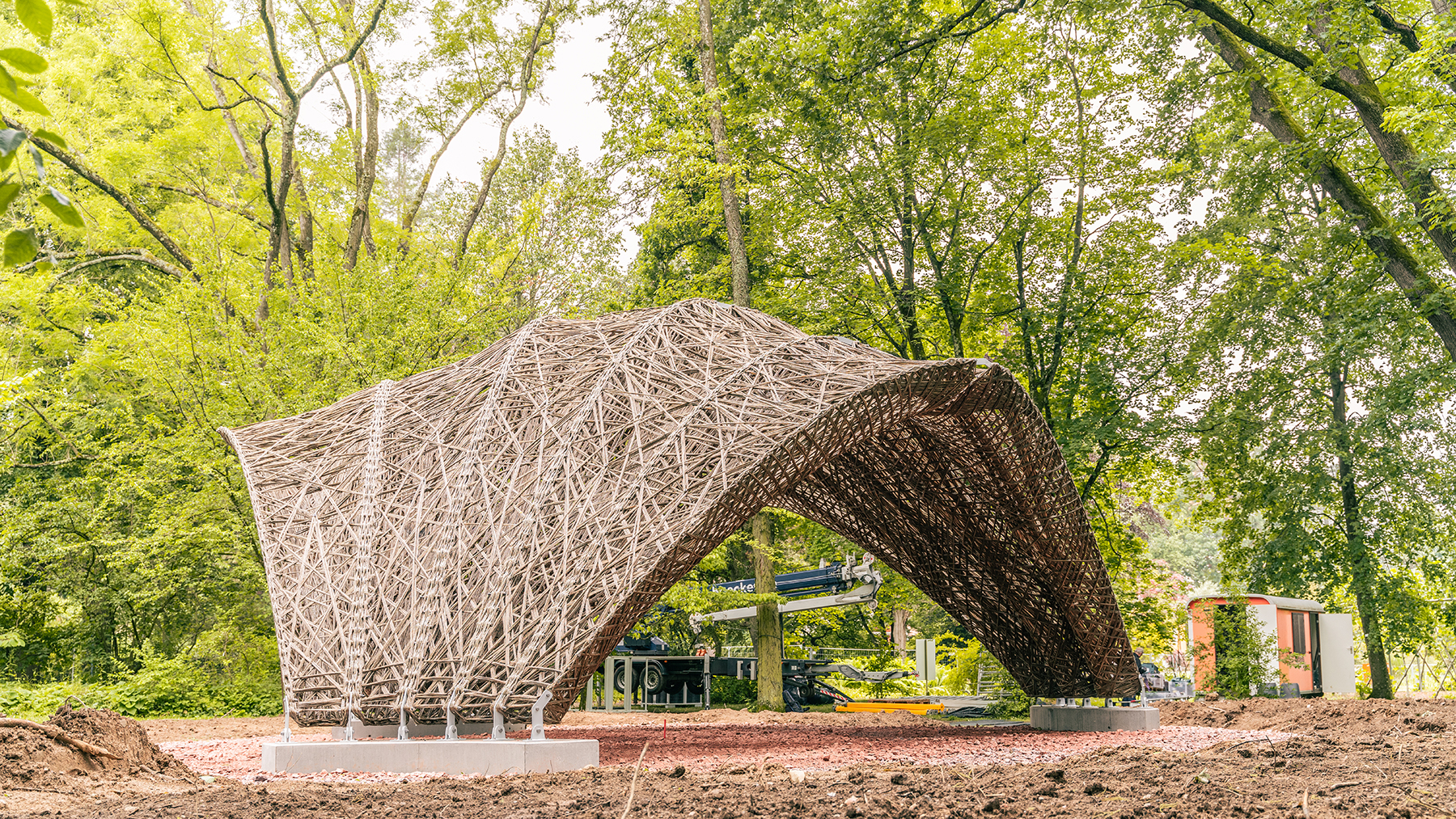

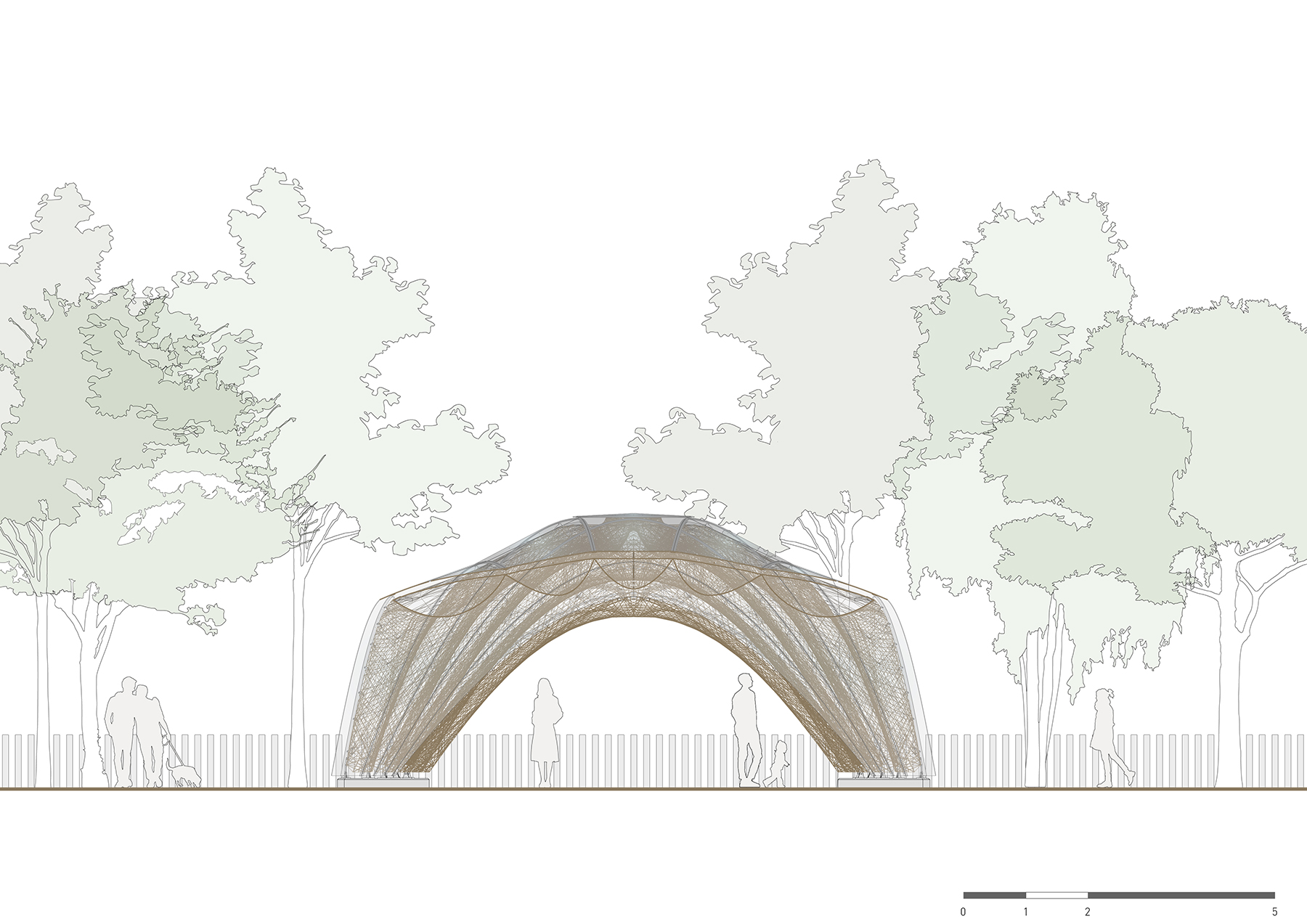

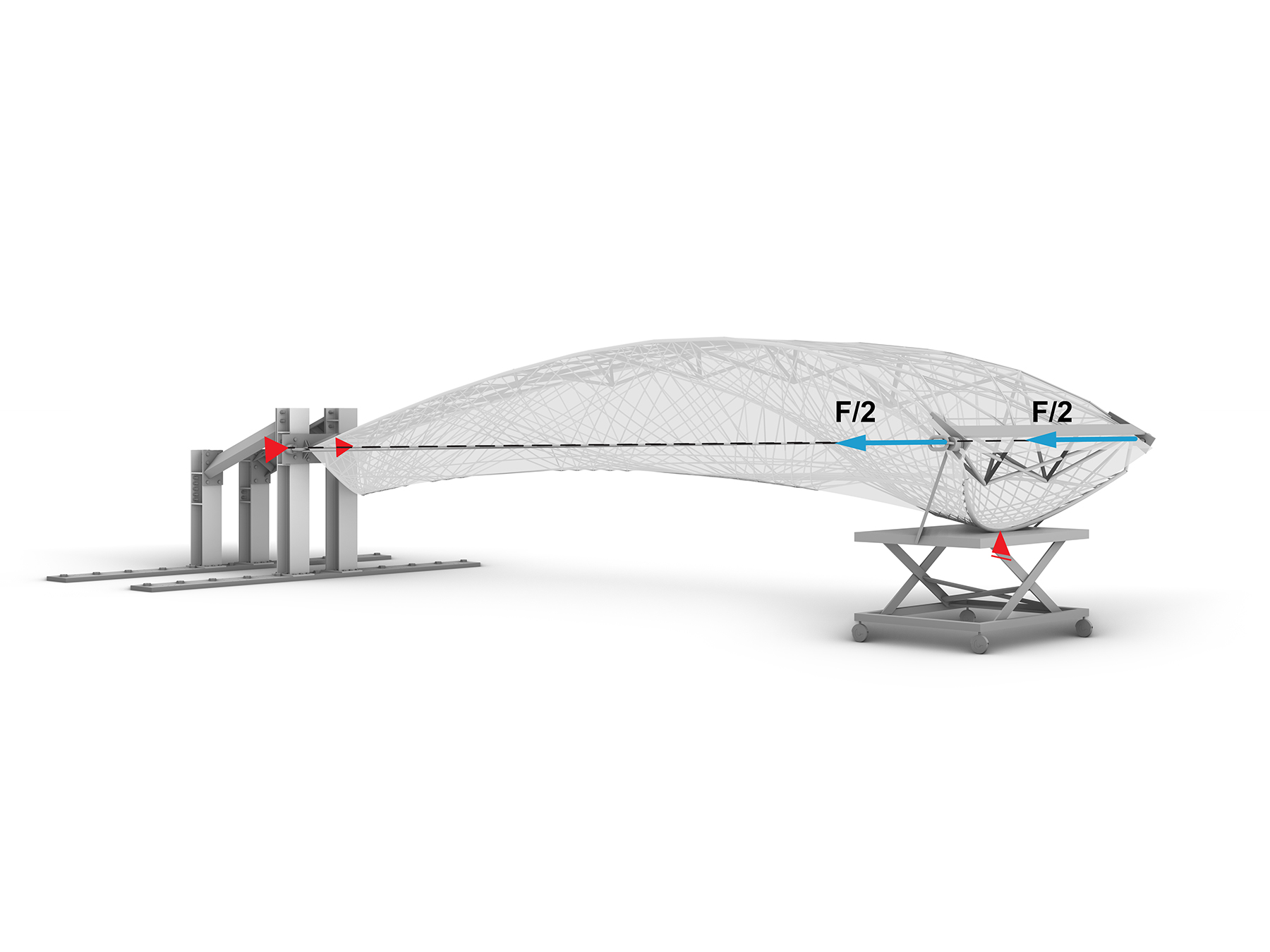

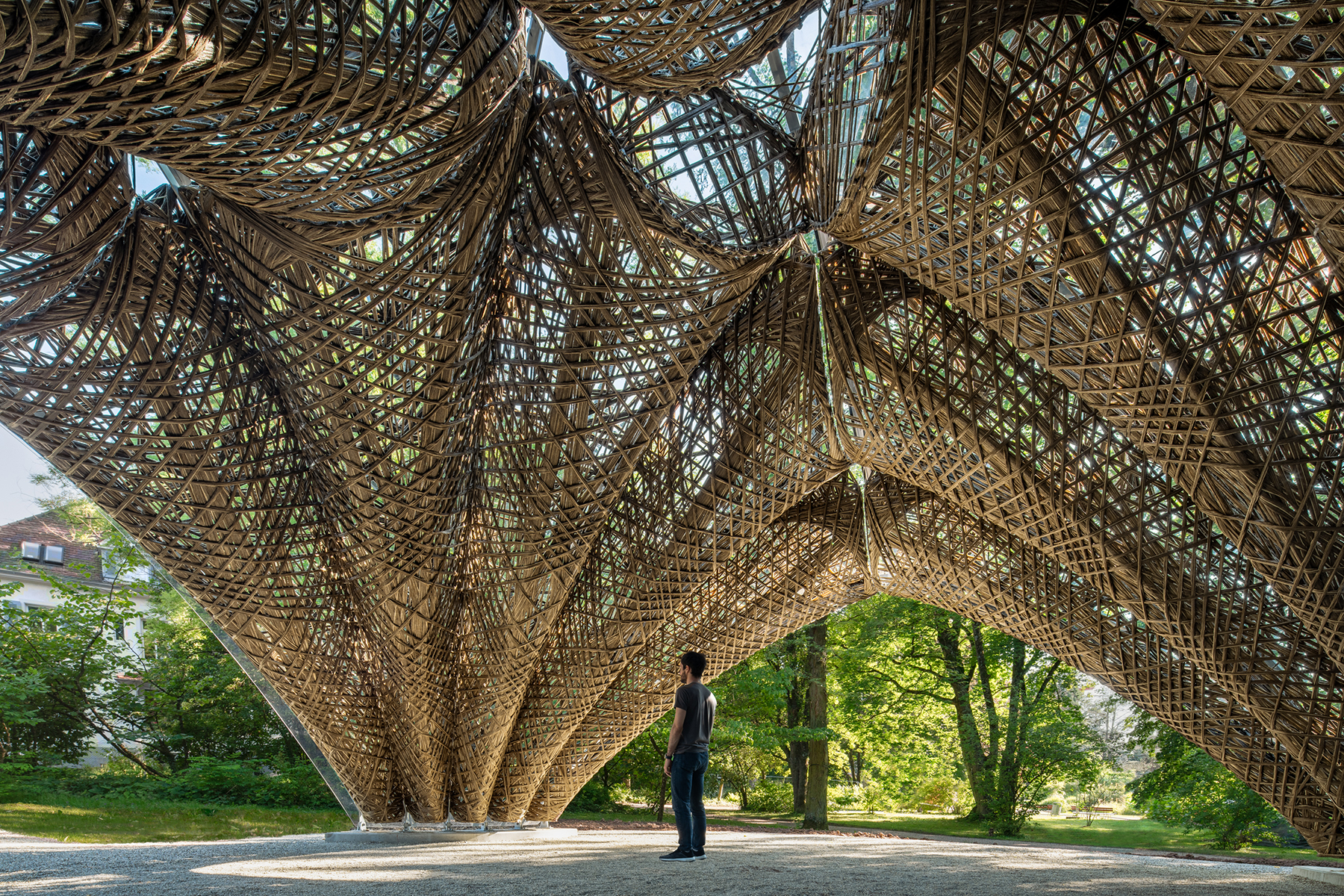

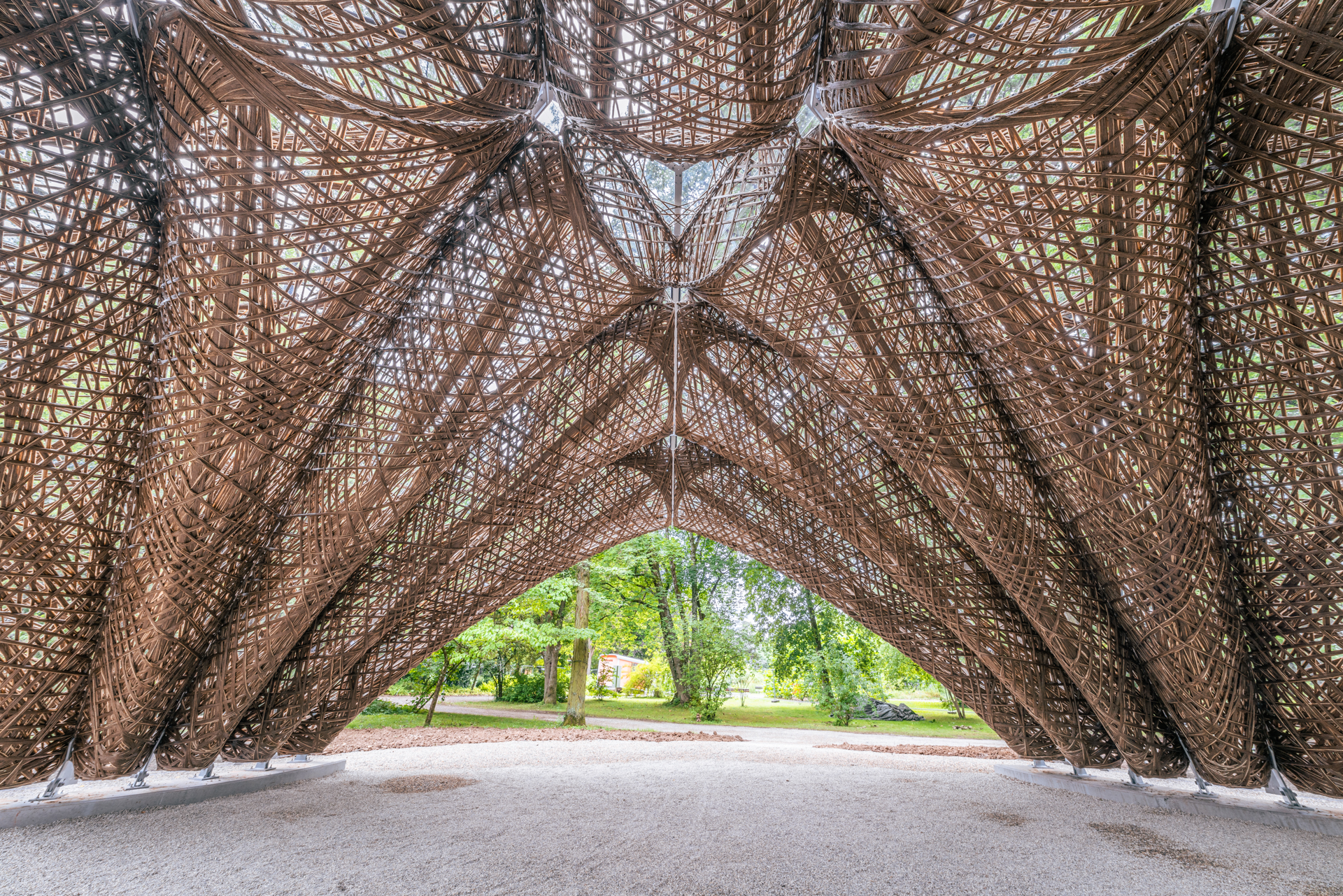

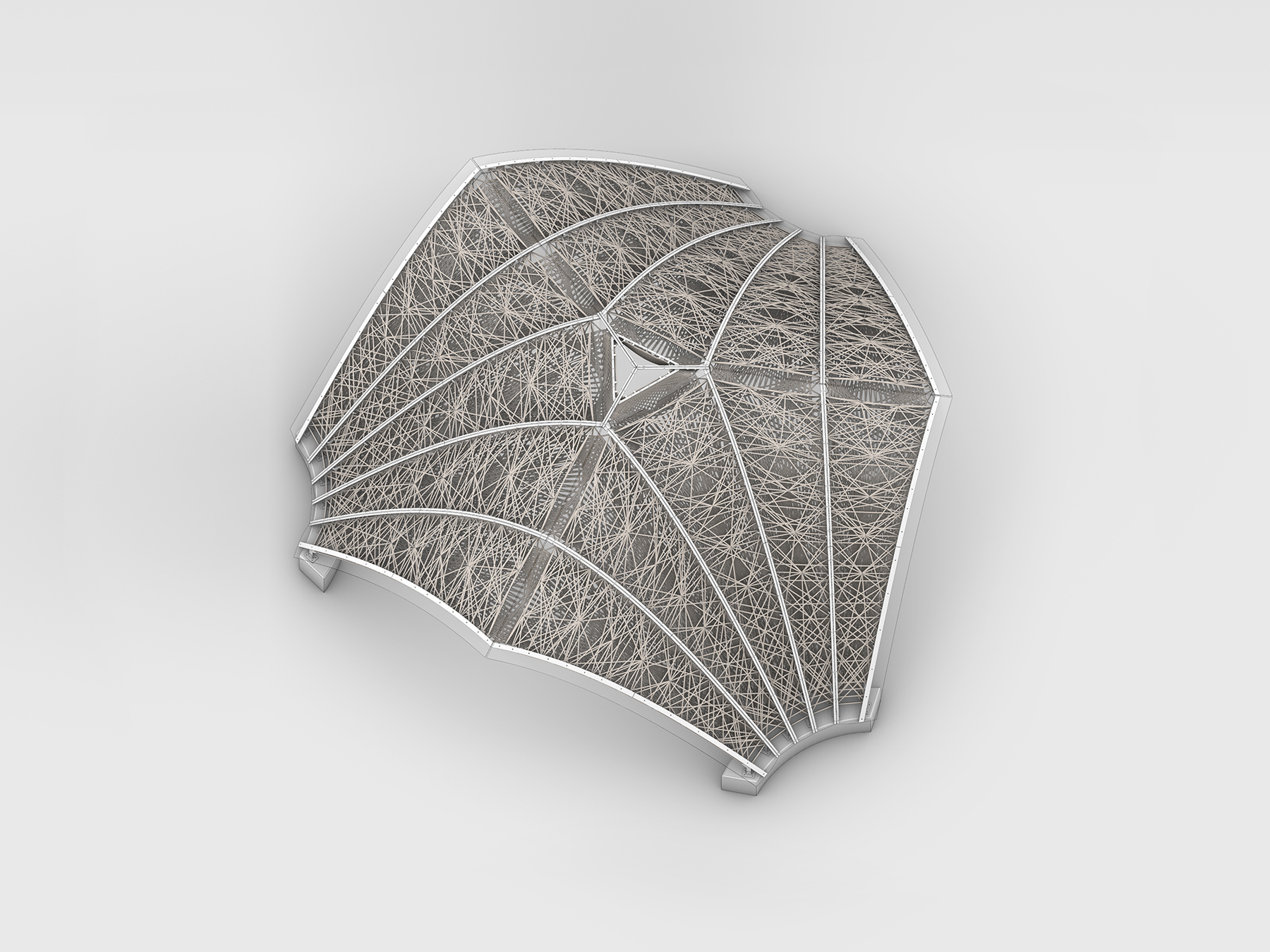

The load-bearing structure of the livMatS pavilion consists of 15 flax fiber components, robotically prefabricated exclusively from continuous spun natural fibers, as well as a fibrous capstone element on top of the structure. The elements vary in overall length from 4.50 to 5.50 m and weigh only 105 kg on average. The entire fiber structure weighs approximately 1.5 t while covering an area of 46 m². The final design complies with the German building code and related structural permit requirements and set of load combinations including wind and snow loads.

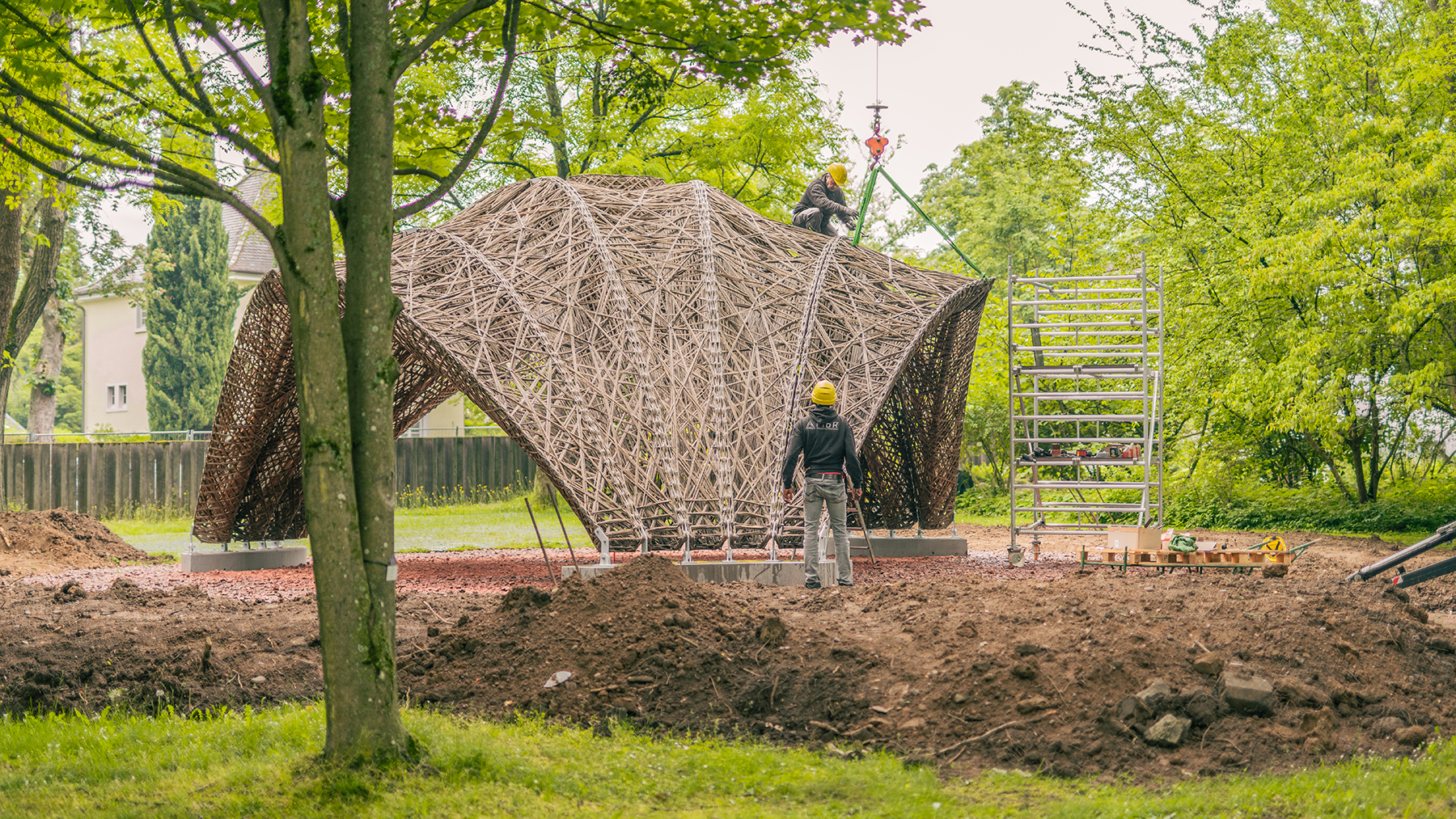

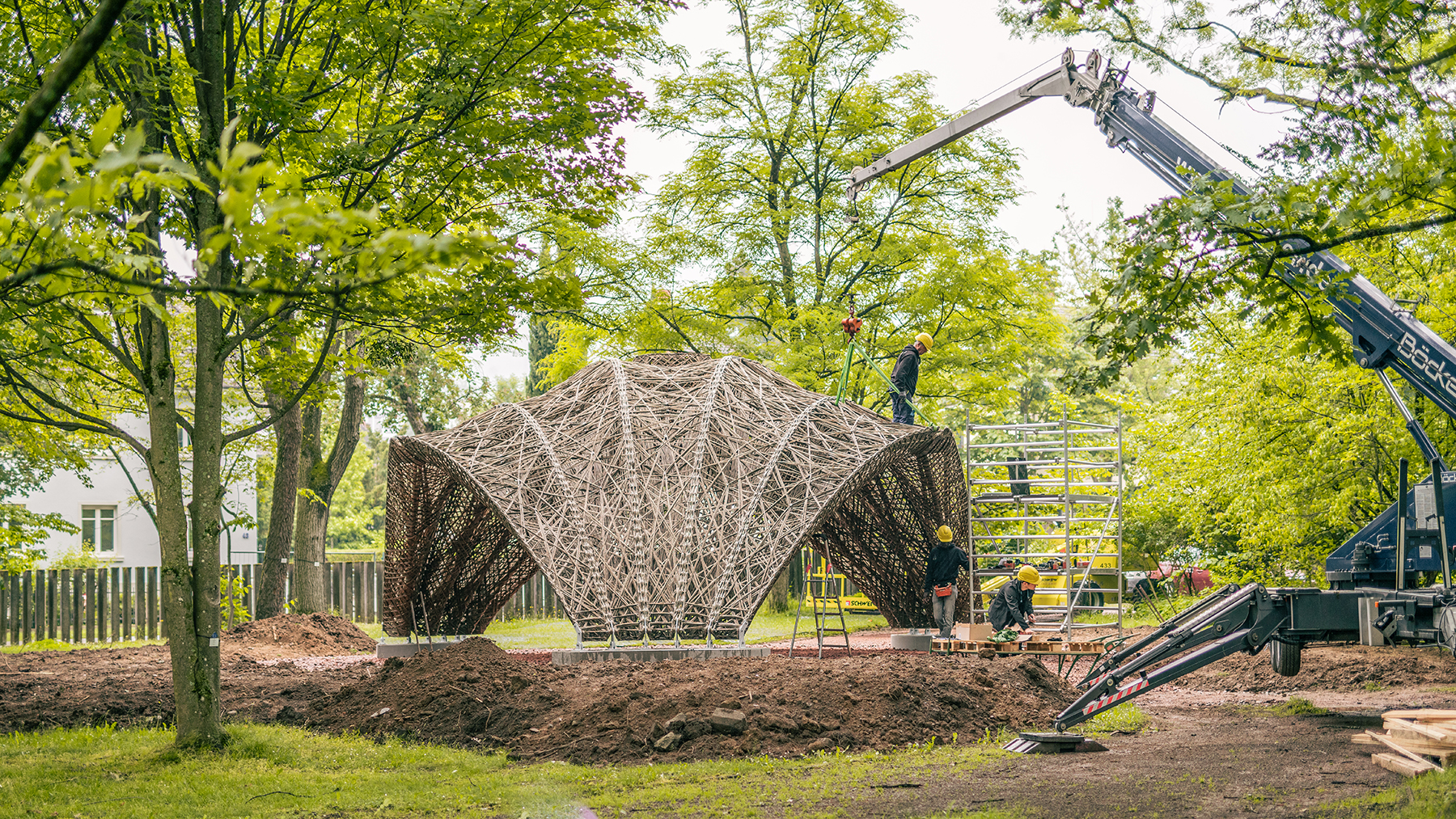

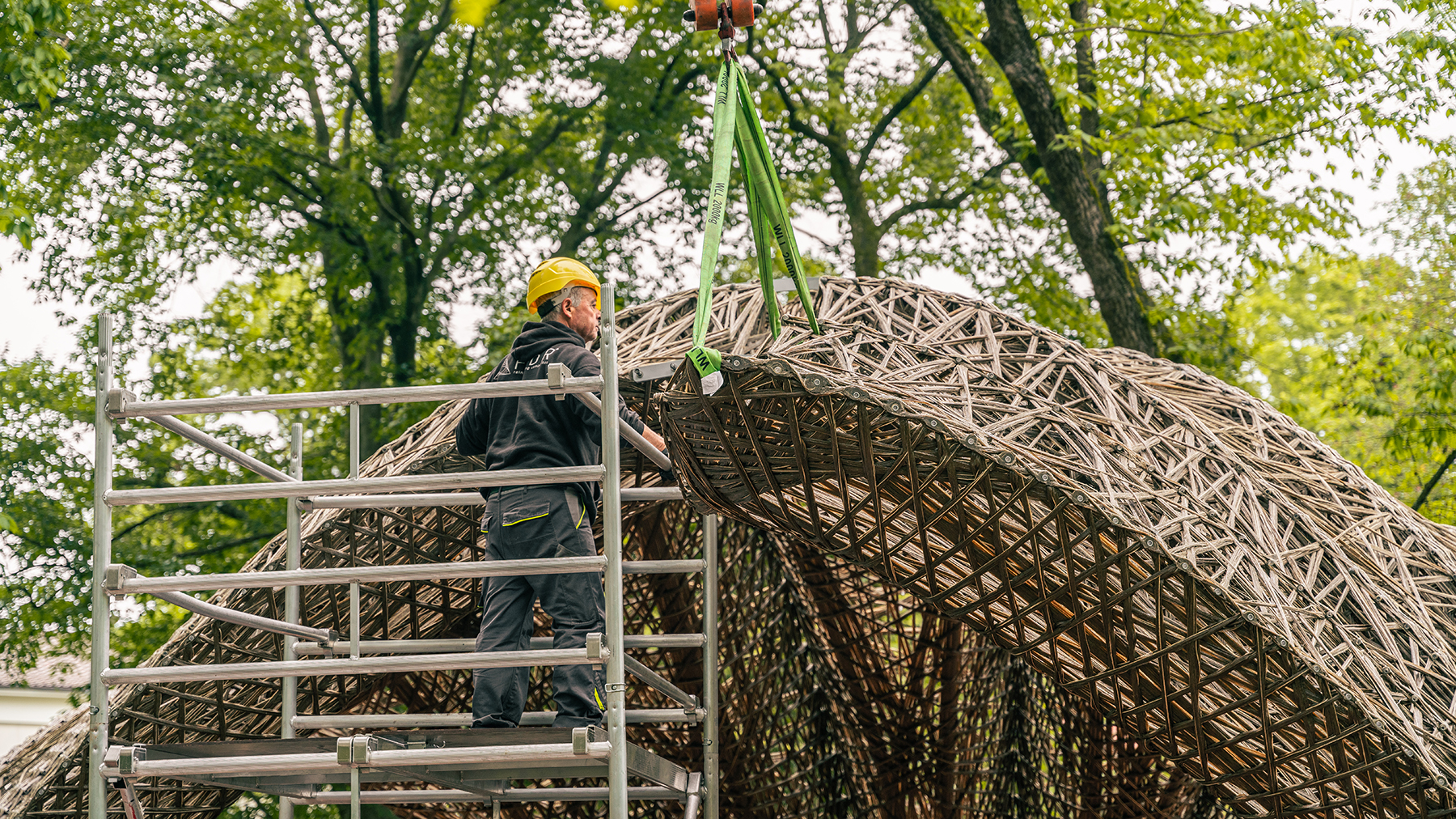

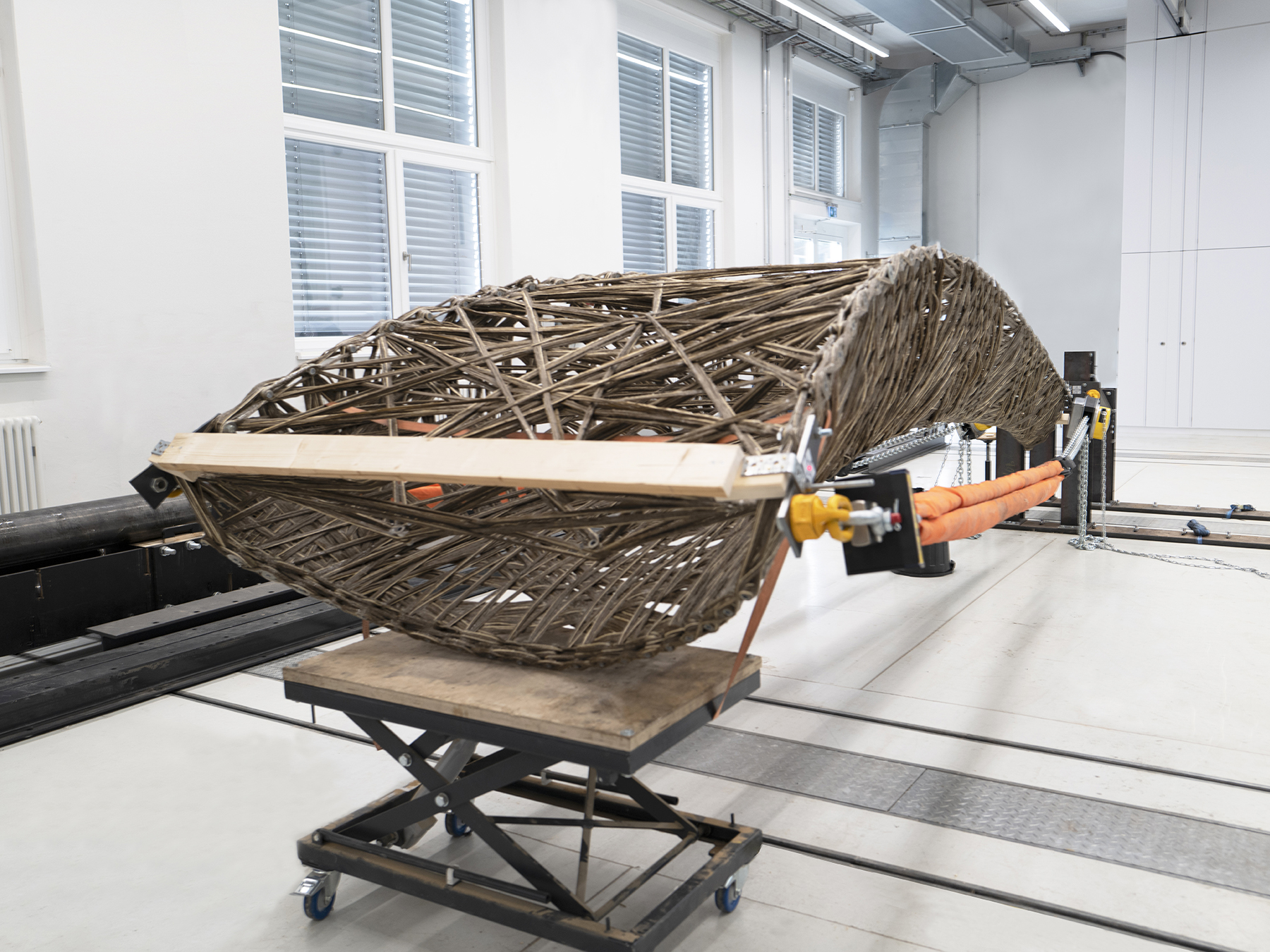

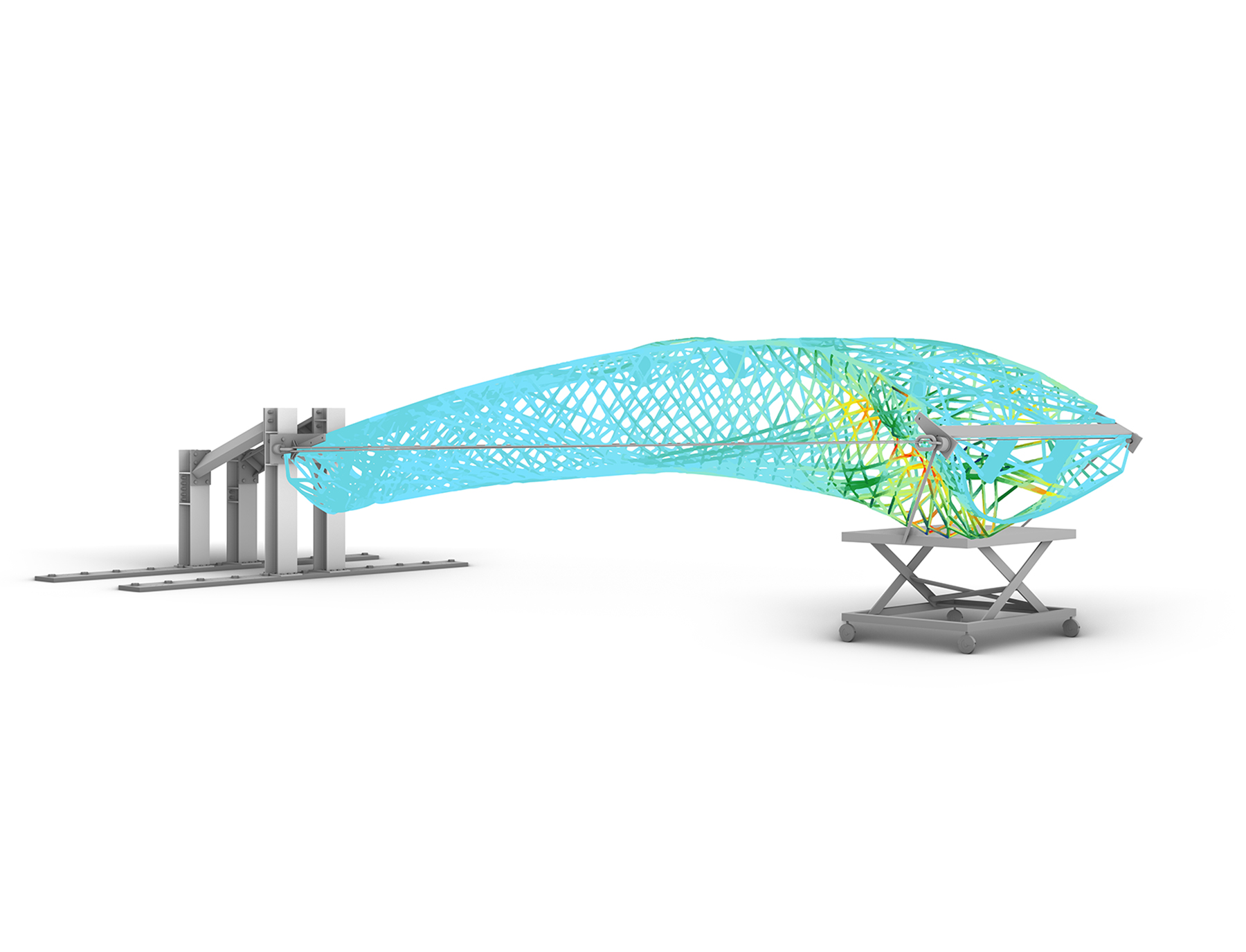

The research developments relating to the computational process, the robotic fabrication as well as the new material system was developed by an interdisciplinary team of ITECH students and ICD/ITKE researchers at the University of Stuttgart and was validated by the fabrication of a first series of prototypes of the natural fiber components. The production data was then generated and passed to the project´s industrial partner FibR GmbH Stuttgart for the production of the 15 structural components.

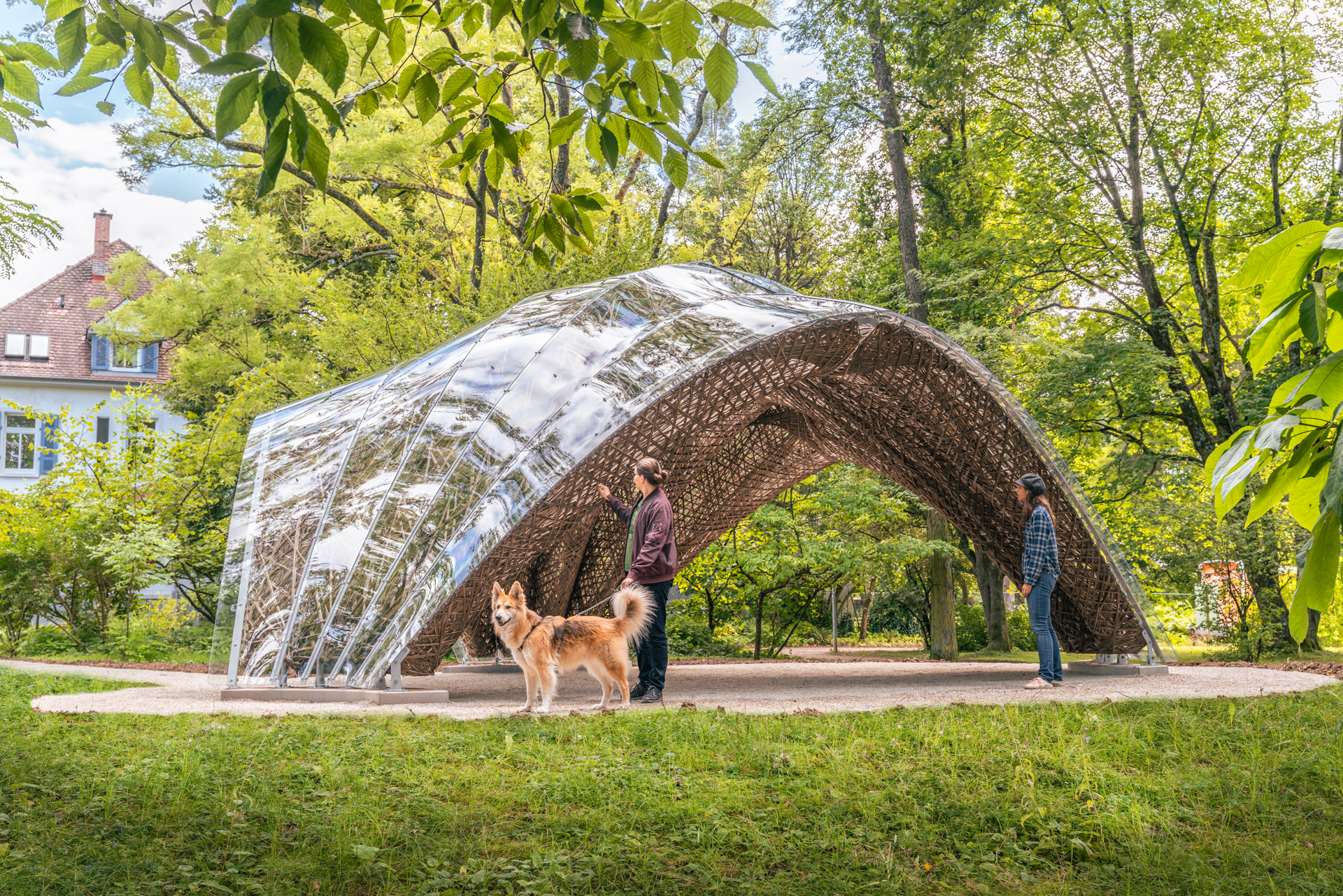

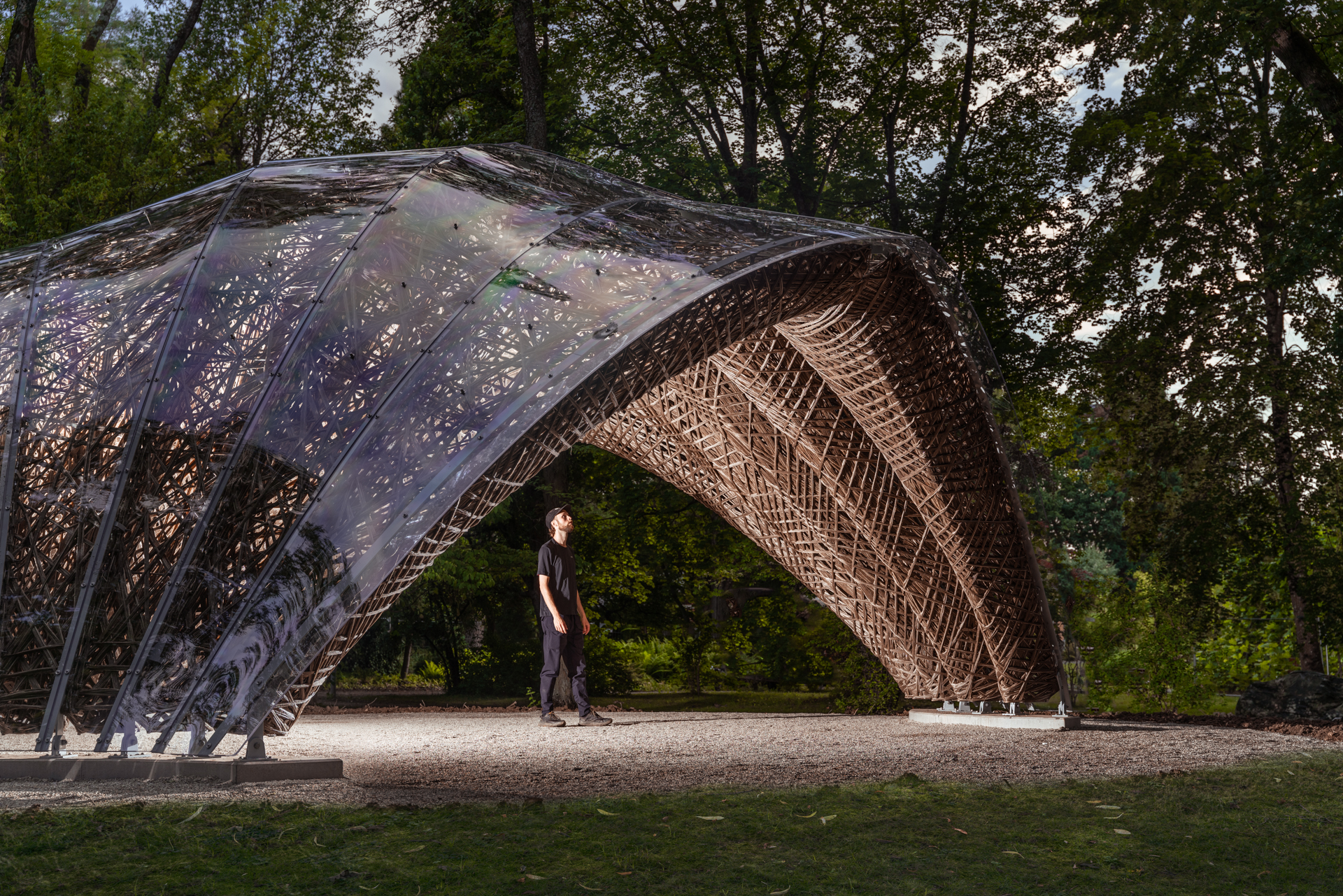

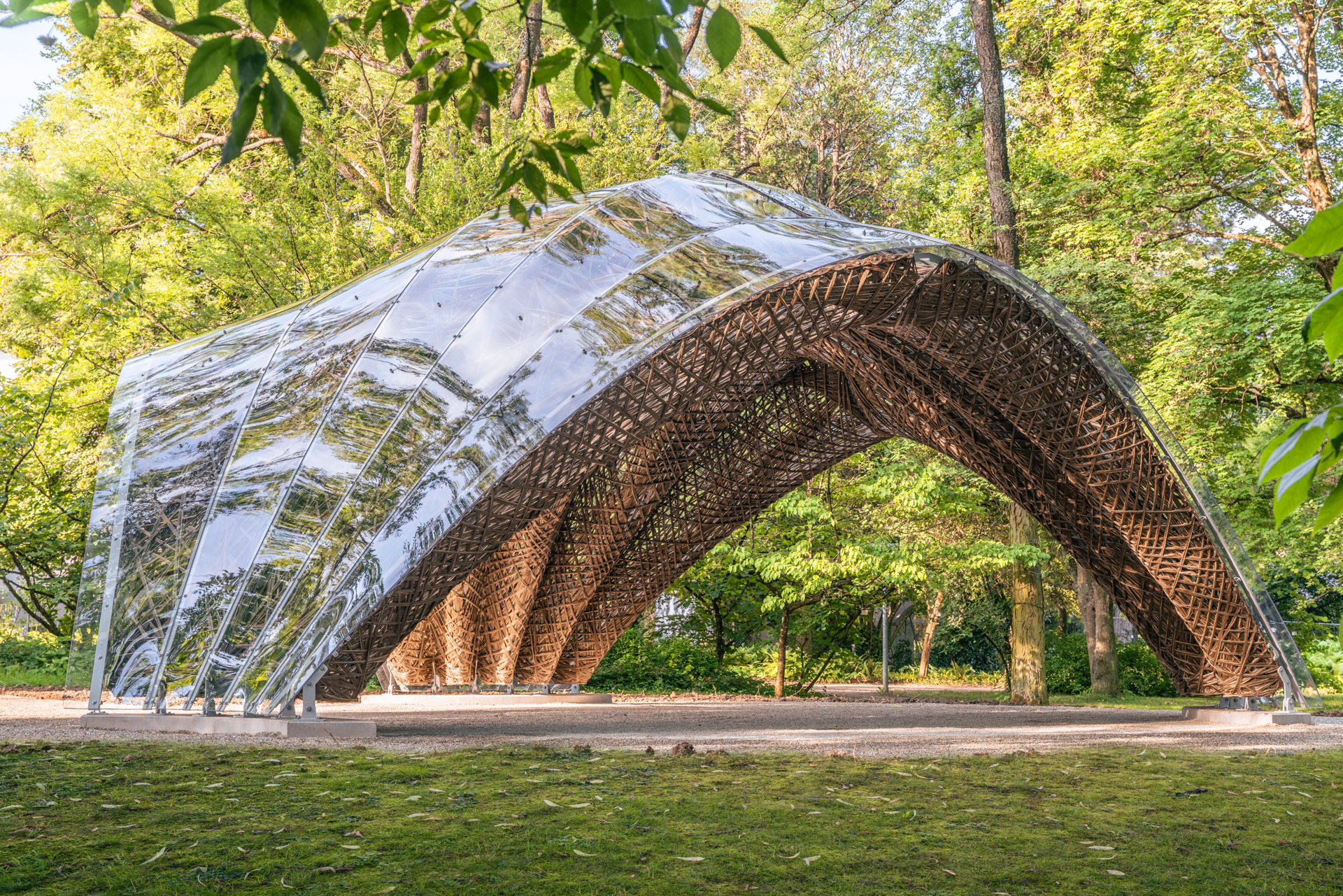

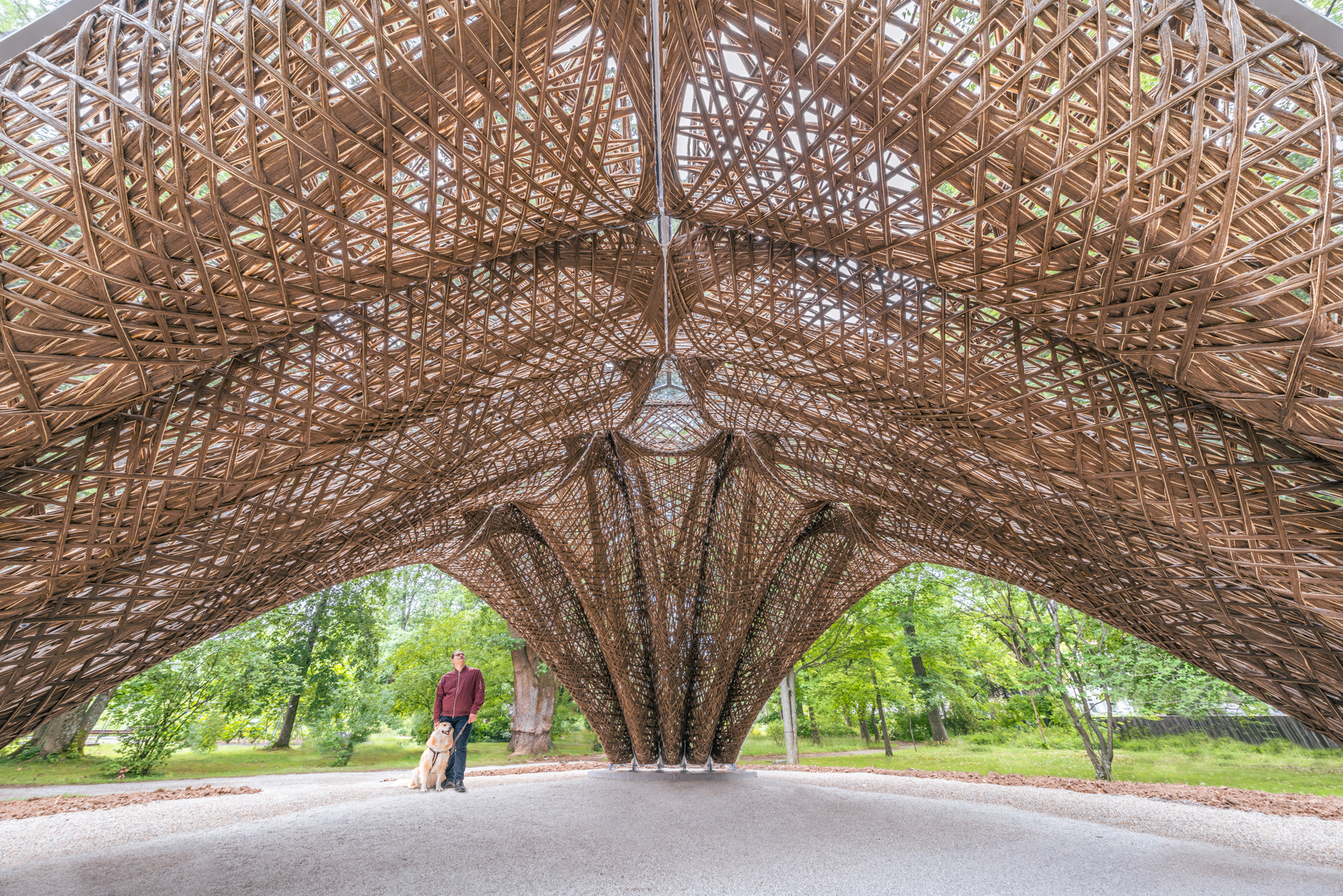

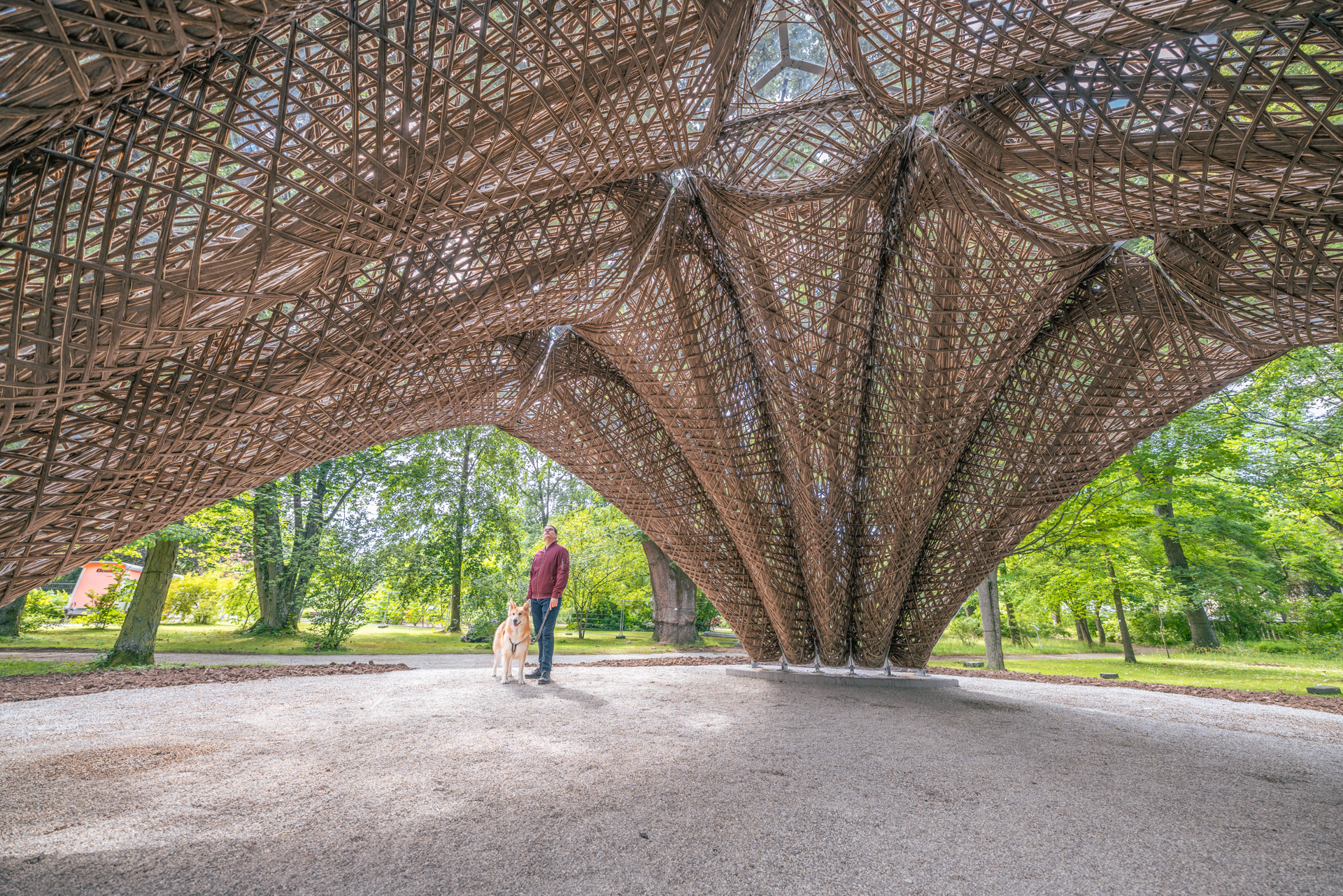

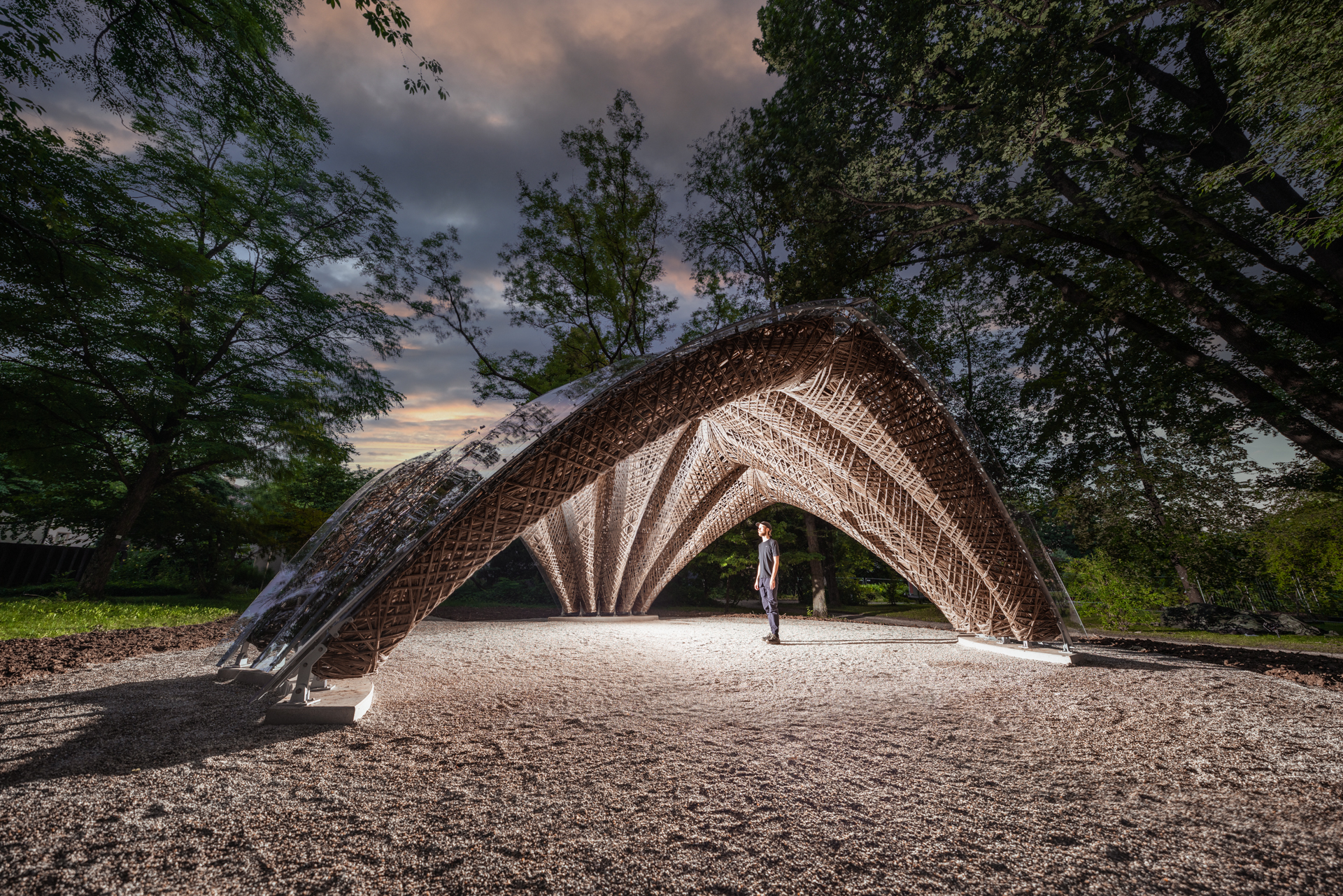

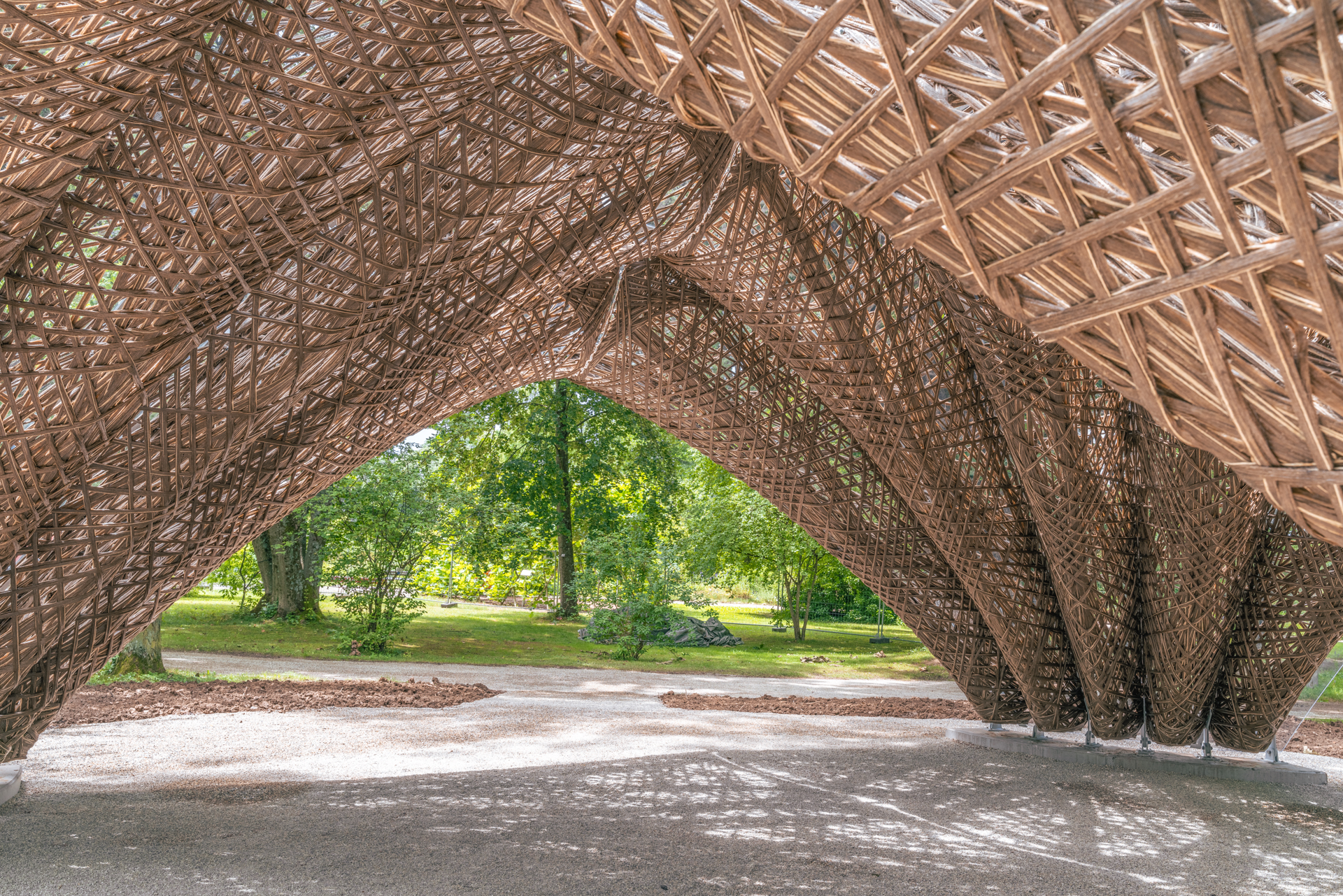

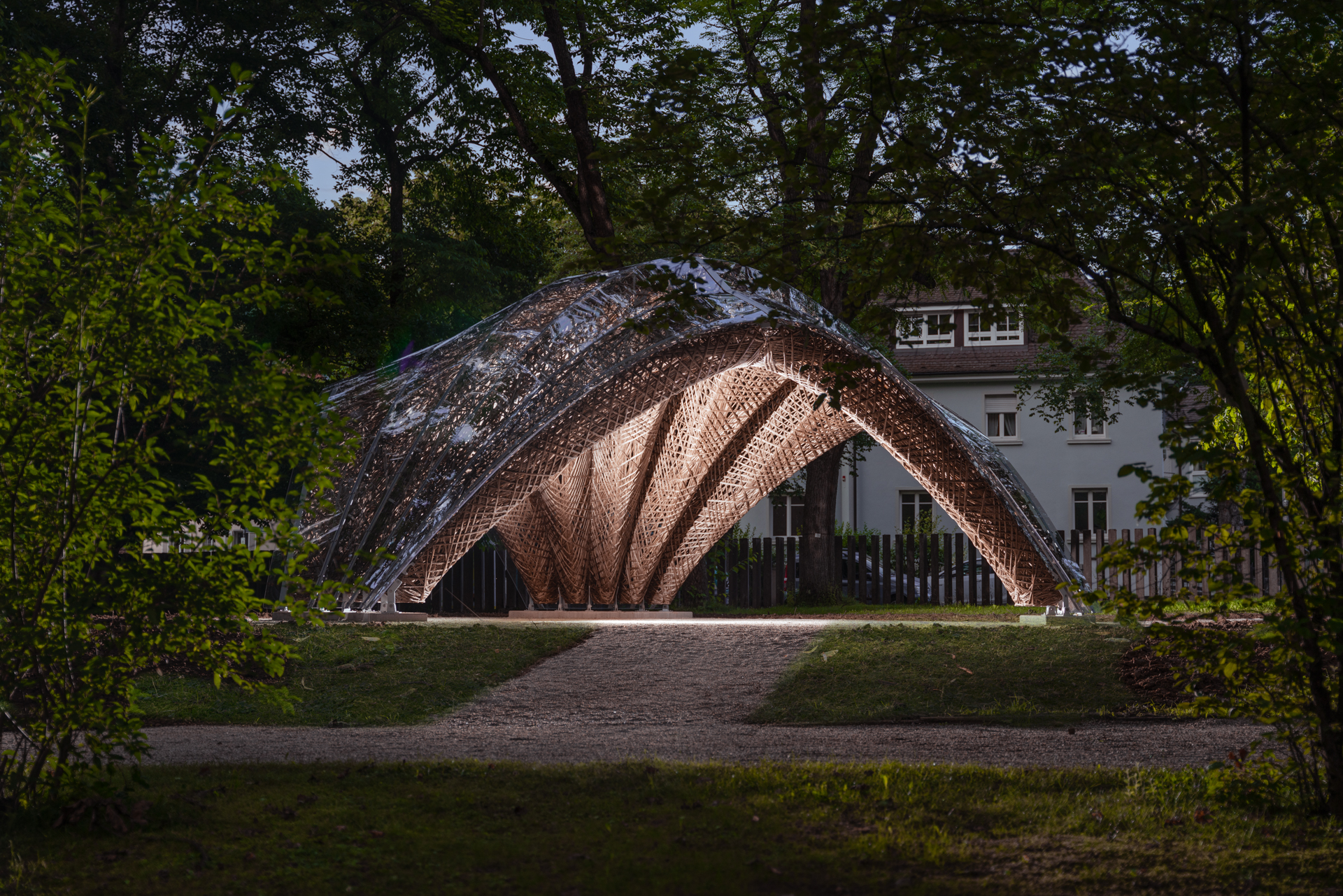

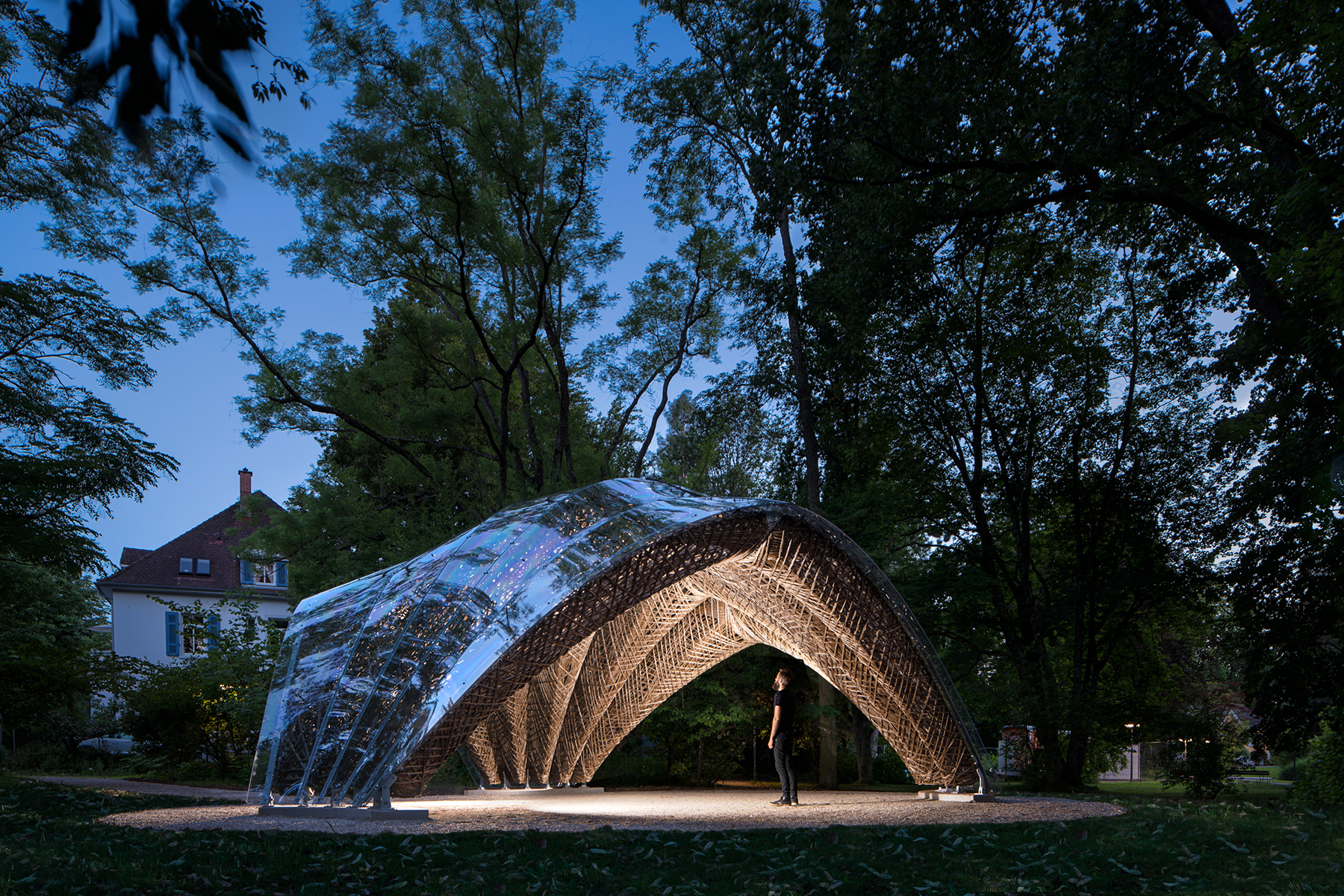

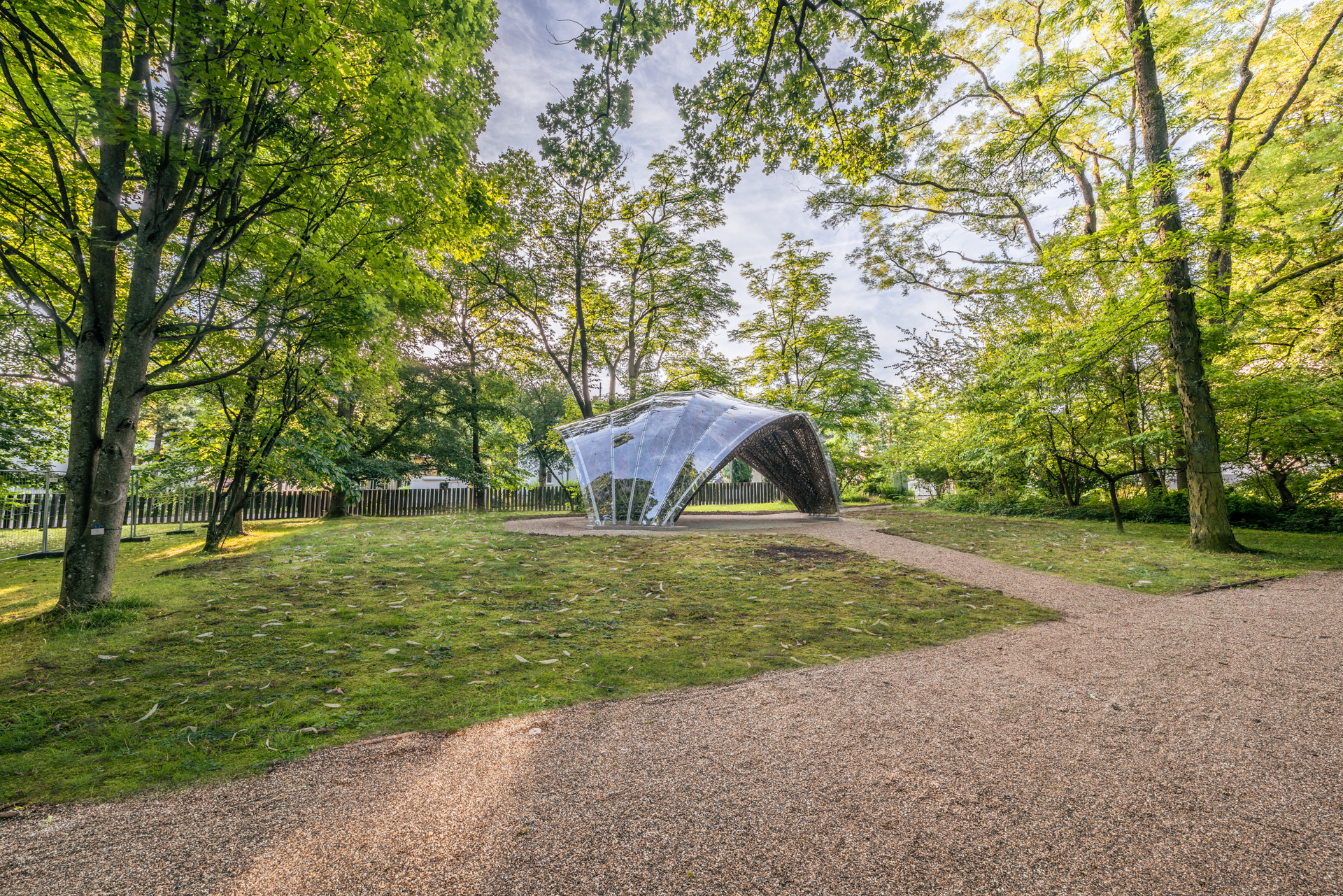

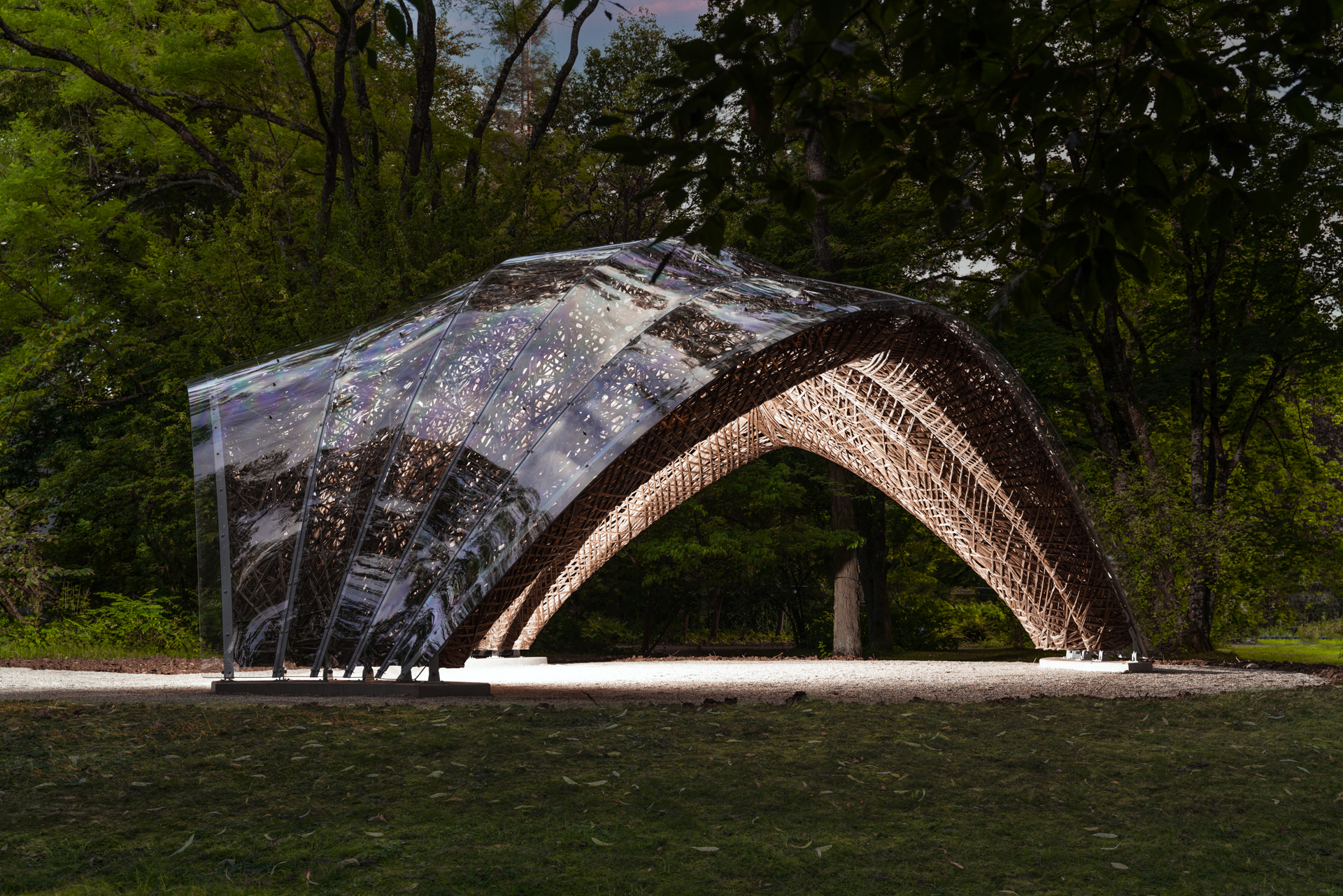

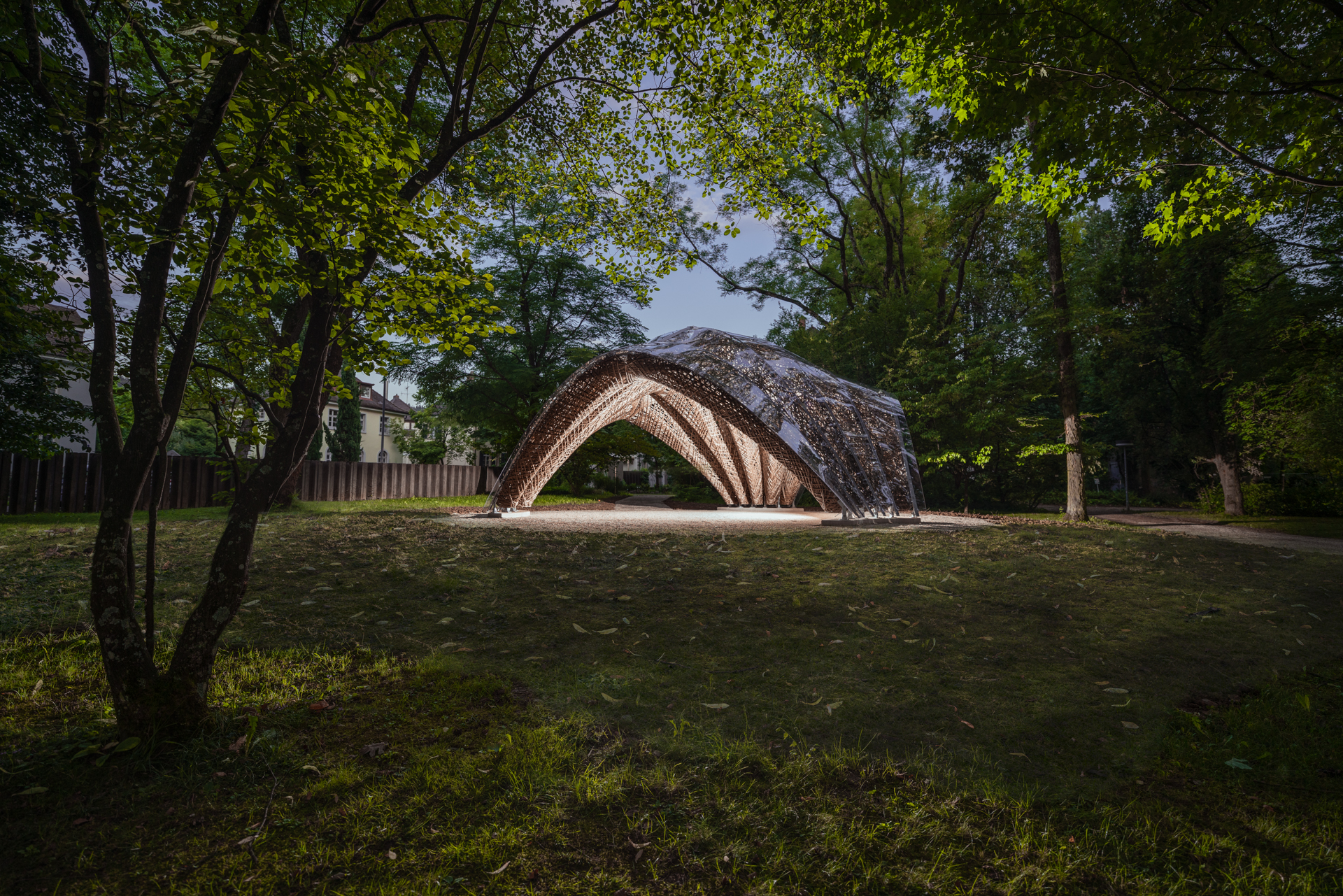

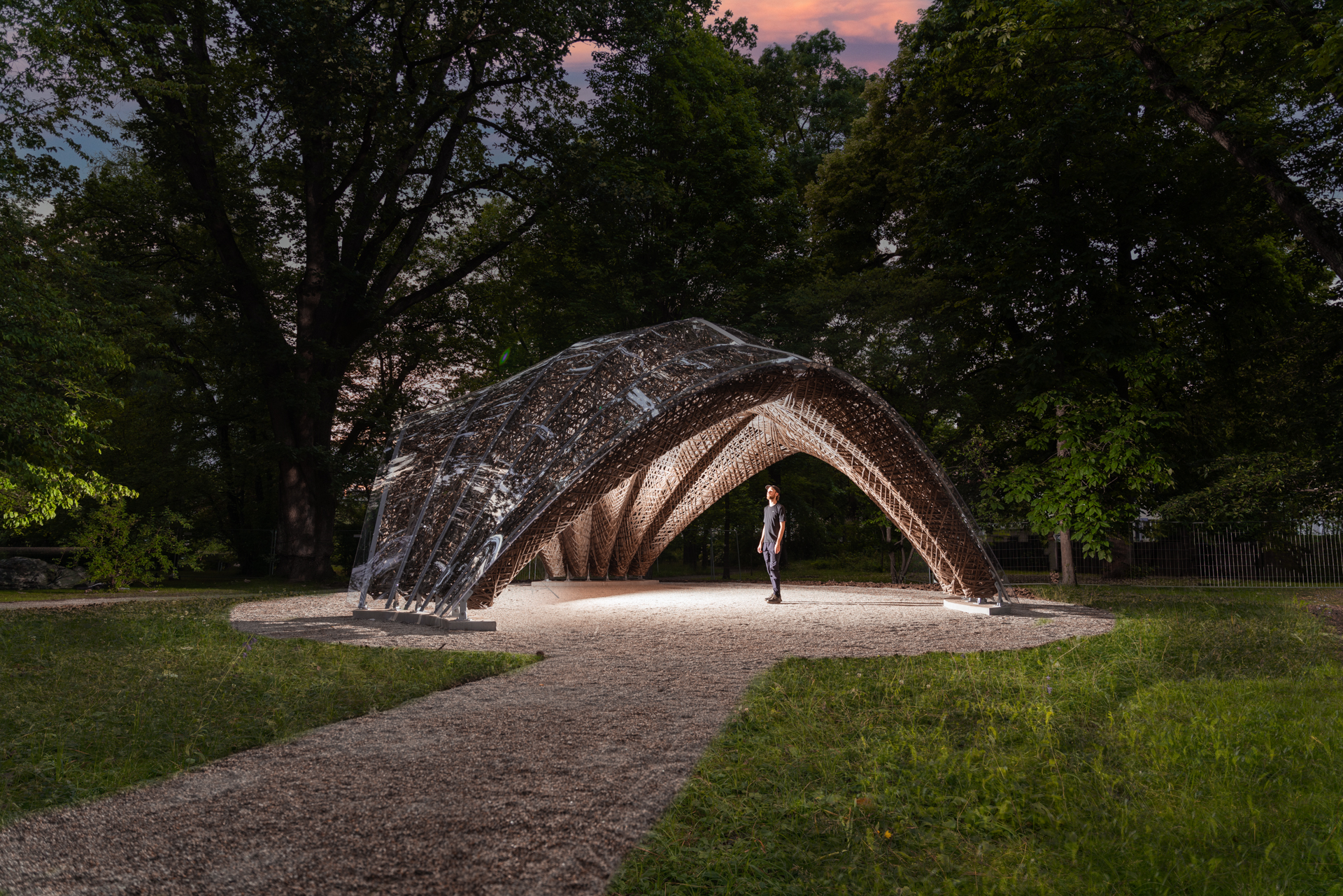

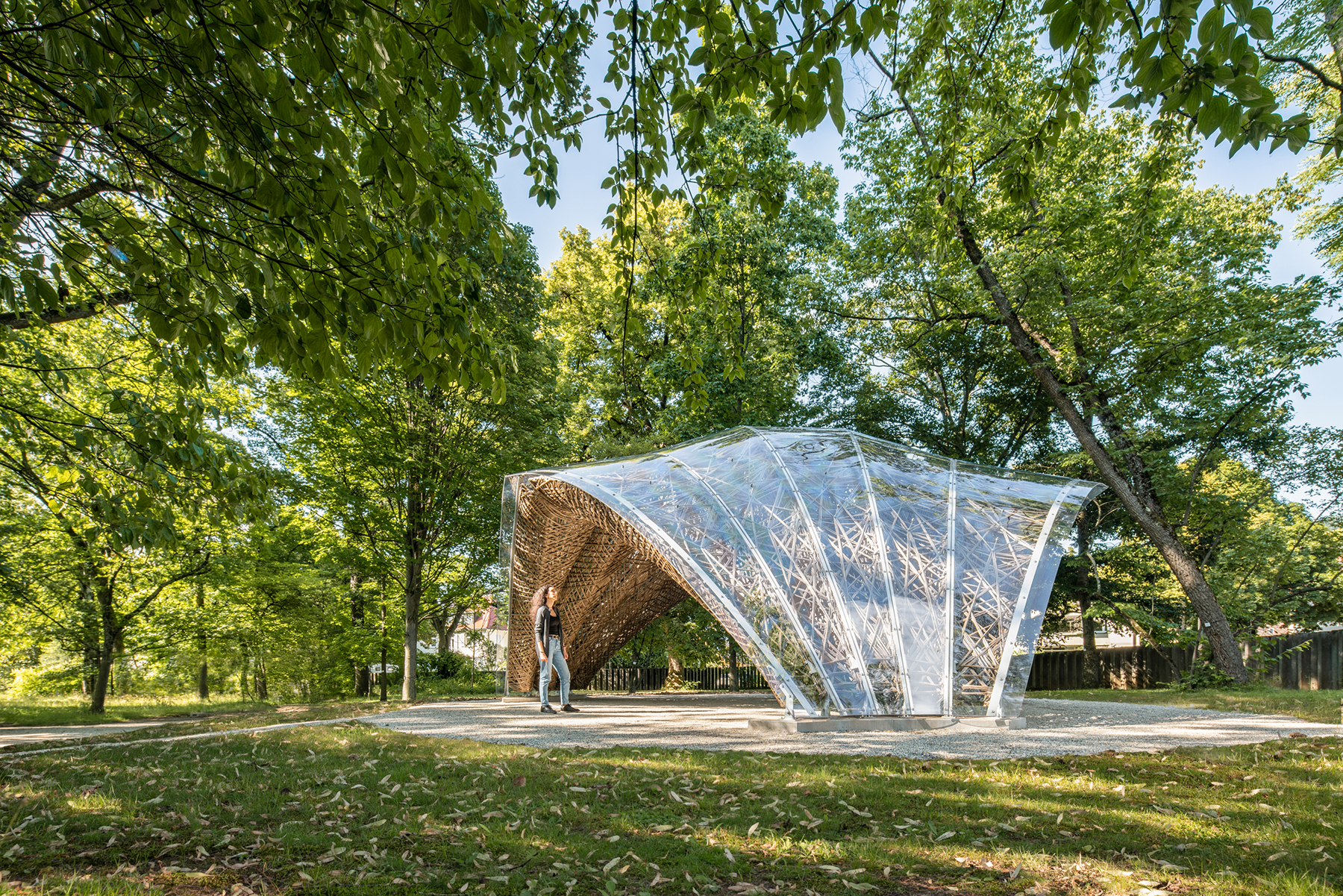

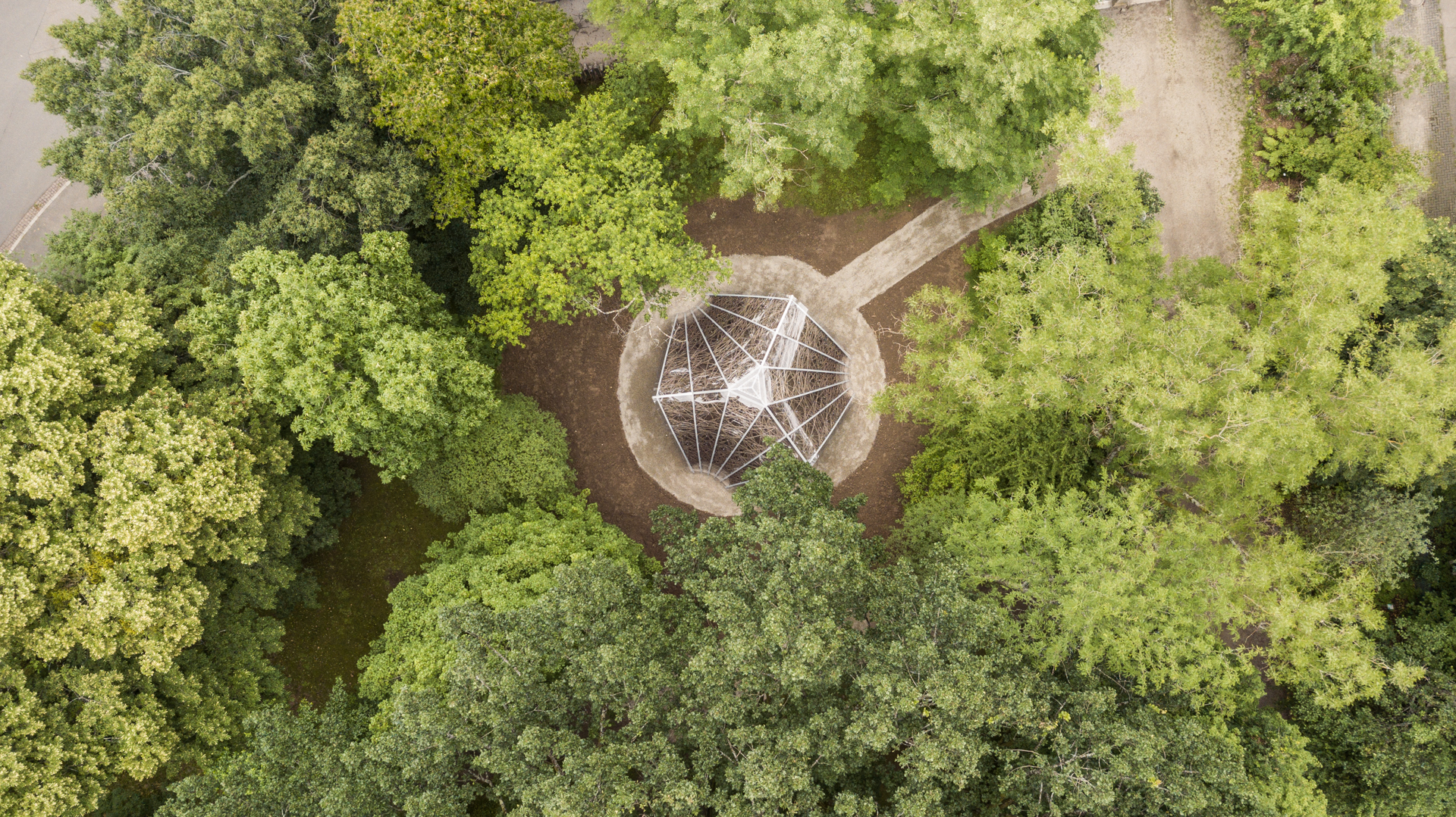

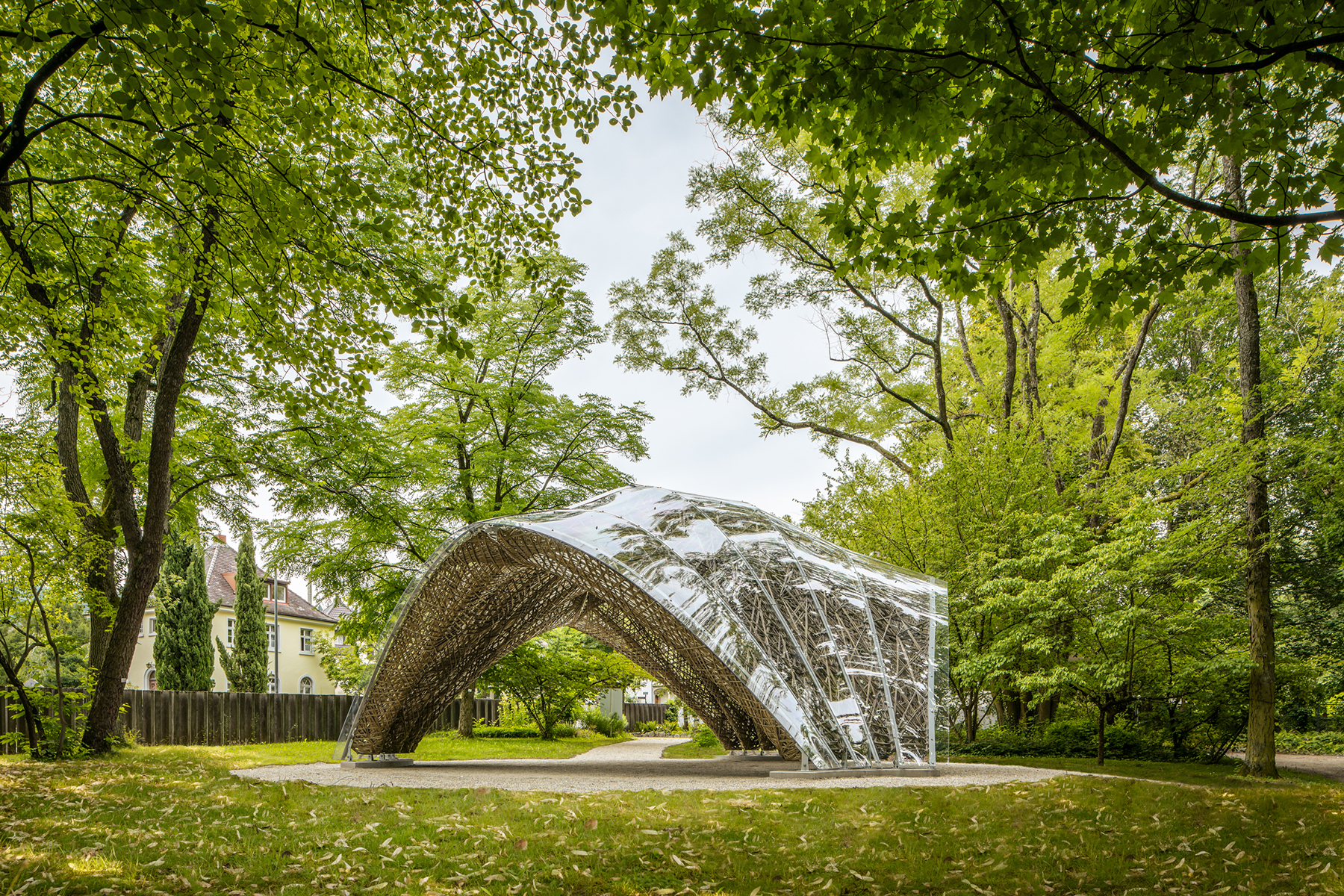

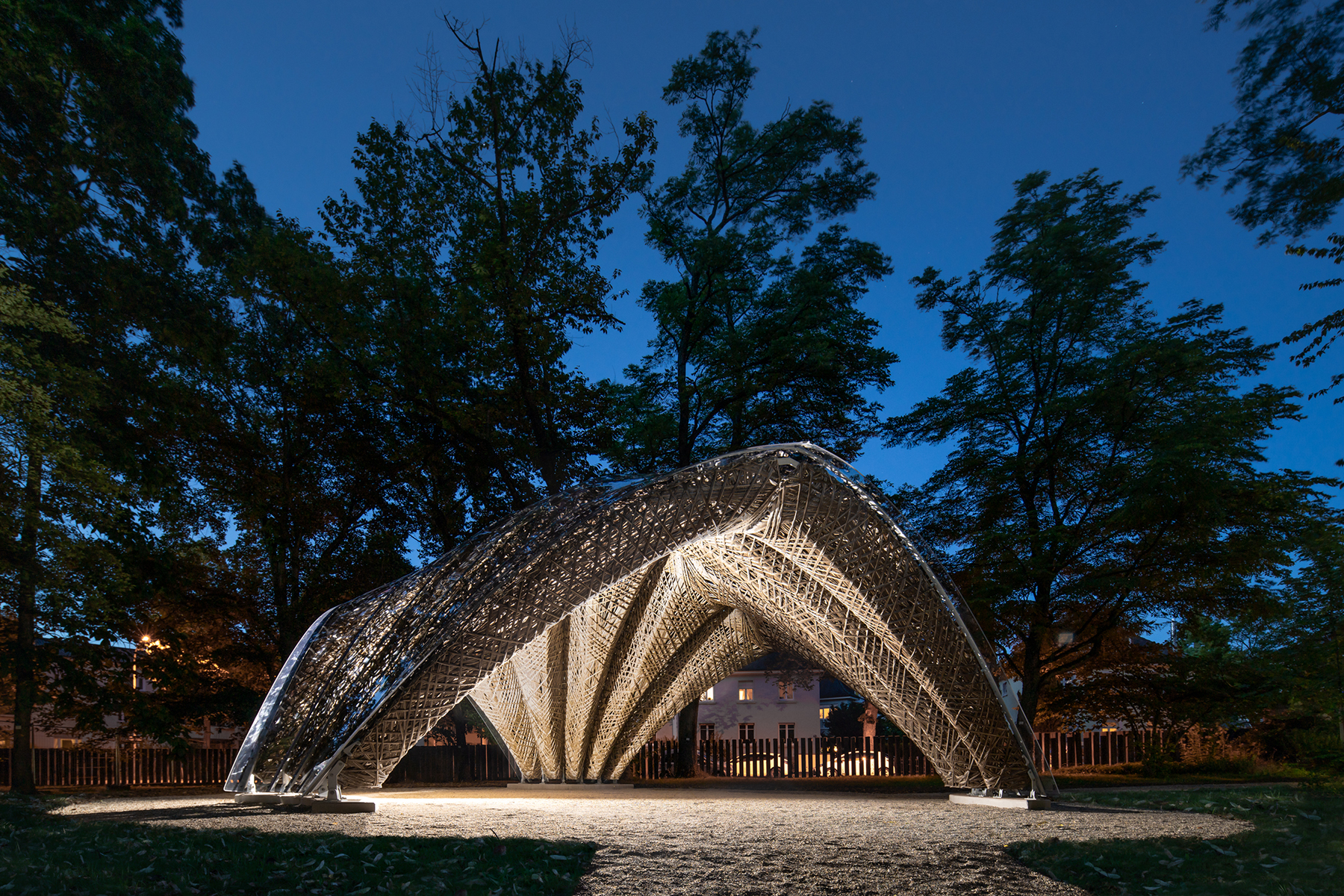

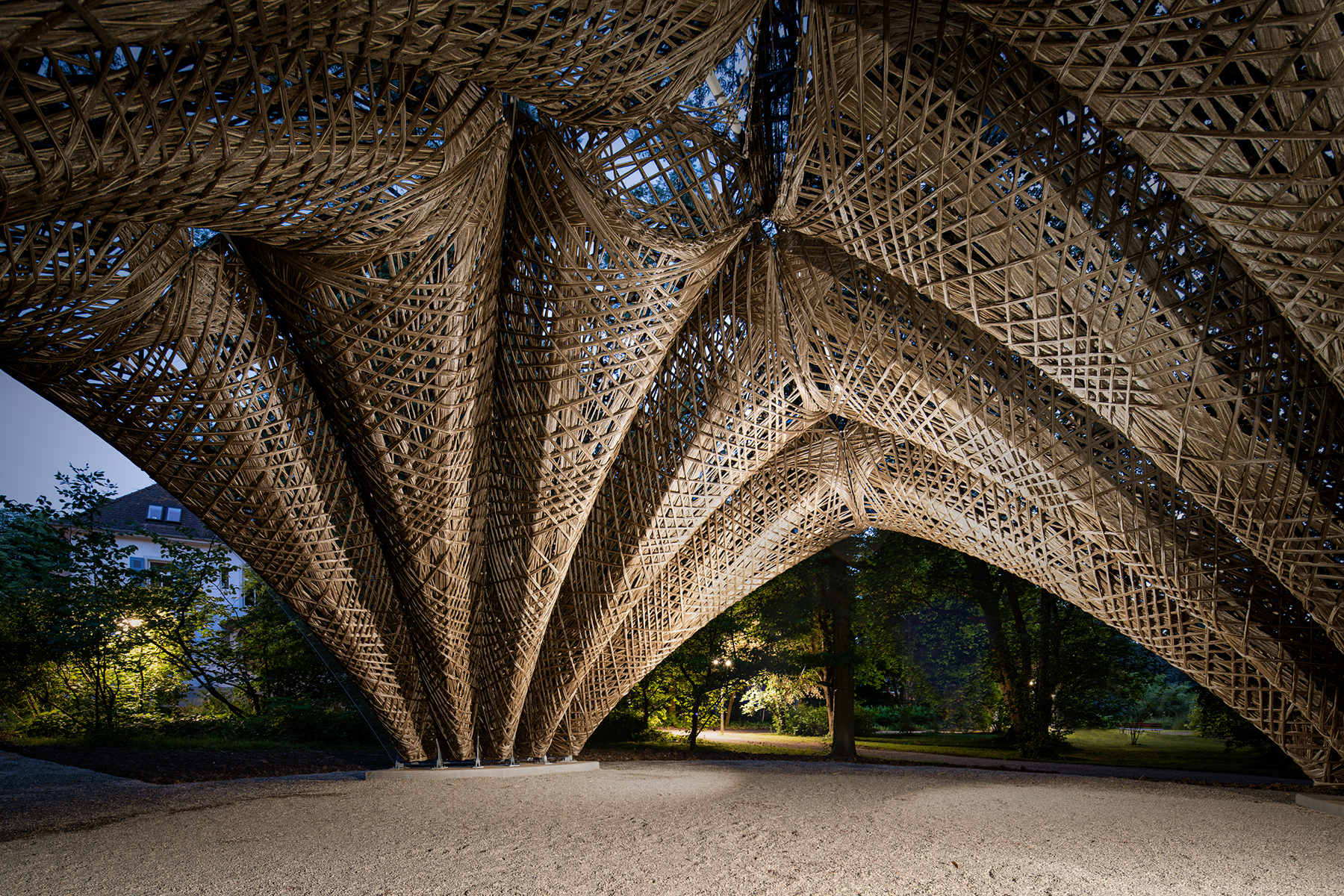

Naturally blending with the setting of the Botanic Garden in Freiburg, the pavilion celebrates the novel possibilities of spatial and structural articulation of natural materials, which visitors to the garden and users of the building experience as a distinctive yet authentic architectural expression. It offers a glimpse of construction that is both futuristic and future-proof, and serves as an outdoor lecture room for events offered by livMatS at the University of Freiburg. Scientists will present their work there to the public in guided tours or workshops, thus vividly conveying the cluster´s research.

The project continues a series of successful experimental and highly innovative building demonstrators designed and realized by the interdisciplinary team of researchers and students at ICD/ITKE University of Stuttgart. It further strengthens the already successful collaboration between the Cluster of Excellence livMatS at the University of Freiburg and the Cluster of Excellence IntCDC at the University of Stuttgart. IntCDC aims to rethink design and construction through digital technologies to address the ecological, economic, and sociocultural challenges the built environment is facing. The vision of livMatS is to combine nature and technology to develop cutting-edge environmental and energy technologies. By its very nature, the pavilion offers points of contact to highlight similarities and differences between biological and technical materials and to show the possibilities that bioinspiration offers, for example in architecture but also in other areas of technology.

Project Team

livMatS Pavilion, Botanic Garden of the University of Freiburg

ICD      Institute for Computational Design and Construction - Prof. Achim Menges
            Cluster of Excellence IntCDC, University of Stuttgart

ITKE    Institute of Building Structures and Structural Design - Prof. Jan Knippers
            Cluster of Excellence IntCDC, University of Stuttgart

Scientific Development:
Marta Gil Pérez, Serban Bodea, Niccolò Dambrosio, Bas Rongen, Christoph Zechmeister
Project Management: Katja Rinderspacher, Marta Gil Pérez, Monika Göbel

Concept Development, System Development, Prototyping:
2018-2020: Talal Ammouri, Vanessa Costalonga Martins, Sacha Joseph Cutajar, Edith Anahi Gonzalez San Martin, Yanan Guo, James Hayward, Silvana Herrera, Jeongwoo Jang, Nicolas Kubail Kalousdian, Simon Jacob Lut, Eda Özdemir, Gabriel Rihaczek, Anke Kristina Schramm, Lasath Ryan Siriwardena, Vaia Tsiokou, Christo van der Hoven, Shu Chuan Yao

2018-2019: Karen Andrea Antorveza Paez, Okan Basnak, Guillaume Caussarieu, Zhetao Dong, Kurt Drachenberg, Roxana Firorella Guillen Hurtado, Ridvan Kahraman, Dilara Karademir, Laura Kiesewetter, Grzegorz Łochnicki, Francesco Milano, Yue Qi, Hooman Salyani, Nasim Sehat, Tim Stark, Zi Jie, Jake Tan, Irina Voineag

Facade Development: Tim Stark

With support of: Okan Basnak, Yanan Guo, Axel Körner

Student assistance: Matthew Johnson, Daniel Locatelli, Francesca Maisto, Mahdieh Hadian Rasanani, Lorin Samija, Anand Shah, Lena Strobel, Max Zorn


FibR GmbH, Stuttgart
Moritz Dörstelmann, Ondrej Kyjanek, Philipp Essers, Philipp Gülke
with support of: Erik Zanetti, Elpiza Kolo, Prateek Bajpai, Hooman Salyani, Jamiel Abubaker, Julian Fial, Sergio Maggiulli, Mansour Ba, Christo van der Hoven


A joint project of the Clusters of Excellence livMatS, University of Freiburg (Prof. Dr. Thomas Speck, Prof. Dr. Jürgen Rühe,) and IntCDC, University of Stuttgart


Supported by:
Deutsche Bundesstiftung Umwelt
Exolon Group GmbH
